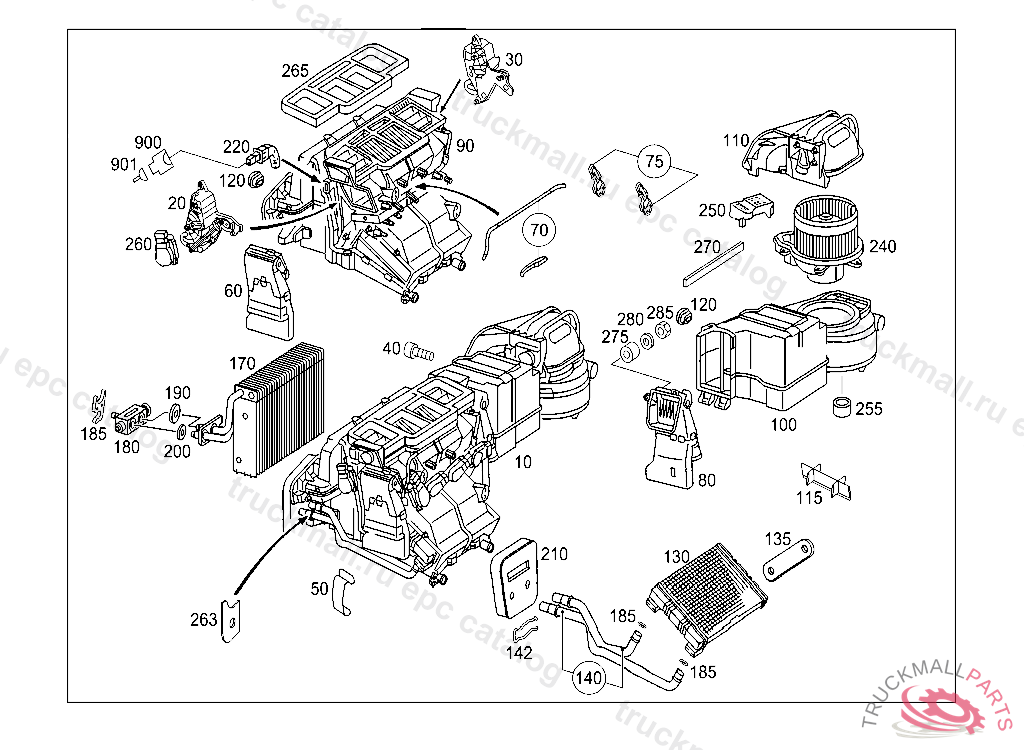

Поз.
Артикул
Описание
10
EVAPORATOR HOUSING
10
EVAPORATOR HOUSING
10
EVAPORATOR HOUSING AIR CONDITIONER
10
EVAPORATOR HOUSING
20
OPERATING LEVER LEFT, E 01022520020418 A 33977020020418 F 28405020020430 R 07086820020628
30
OPERATING LEVER RIGHT, E 01999920070101
40
HEXALOBULAR BOLT SWITCH TO INSTRUMENT PANEL M4X16
50
SPRING
60
AIR DUCT LEGROOM,LEFT, E 01022520020418 A 33977020020418 F 28405020020430 R 07086820020628
70
LINKAGE PARTS KIT, FOOTWELL FLAPS WITHOUT OPER ATING LEVER
75
OPERATING LEVER PARTS KIT, LEFT AND RIGHT FOOTWELL
80
AIR DUCT LEGROOM,RIGHT, E 01022520020418 A 33977020020418 F 28405020020430 R 07086820020628
90
HOUSING AIR DISTRIBUTOR, TO BE ADAPTED DURING ASSEMBLY
90
HOUSING BLOWER SIDE
90
HOUSING BLOWER SIDE
100
HOUSING BLOWER SIDE
100
EVAPORATOR HOUSING
110
HOUSING FRESH AIR/CIRCULATING AIR, A 66602520040430 E 02000020070101
110
HOUSING FRESH AIR/CIRCULATING AIR
115
DISTRIBUTOR VENTILATION CASE
120
SOUNDPROOFING
130
HEAT EXCHANGER
135
BRACKET HEAT EXCHANGER
140
PIPELINE
140
PIPELINE
142
SPRING HEAT EXCHANGER PIPES
170
EVAPORATOR AIR CONDITIONER
170
EVAPORATOR PIPE LINE CONNECTION, A 33977120020430 E 02000020070101
170
EVAPORATOR PIPE LINE CONNECTION 18MM, A 33977120020418
170
EVAPORATOR PIPE LINE CONNECTION 18MM, A 33977120020418 WHEN REPLACING EVAPORATOR WITH 14 MM CONN., THEEXPANSION VALVE WITH 18 MM CONN. SHOULD ALSO BE ORDERED., Replaced By: A2098300358
170
EVAPORATOR AIR CONDITIONER, X 20407820121031
180
VALVE PIPE LINE CONNECTION 18MM, A 33977120020418 E 02000020070101
185
RETAINING PLATE EXPANSION VALVE, A 33977120020418 E 02000020070101
185
SEAL
190
O-RING HOSE TO EXPANSION VALVE 17X2
200
SEAL RING FROM LIQUID TANK TO T-FITTING
210
SEAL FIRE WALL
210
SEAL FIRE WALL
220
TEMPERATURE SENSOR EVAPORATOR
240
TS BLOWER AIR CONDITIONER CASE, X 20407820121031
240
ELECTRIC MOTOR BLOWER
240
ELECTRIC MOTOR BLOWER
240
TS BLOWER AIR CONDITIONER, X 20407820121031
250
BLOWER REGULATOR
250
BLOWER REGULATOR , Replaced By: A2308216351
250
BLOWER REGULATOR
255
EXPANSION PLUG BLOWER CASE
260
STEPPER MOTOR SERVOMOTOR
260
STEPPER MOTOR , A 77781720040929 E 02000020070101
263
TS FASTENING PLATE , X 20407820121031
263
PLATE PIPE LINE FIXTURE
265
SEAL CONDENSED WATER DRAIN
270
SEAL FRESH AIR/CIRCULATING AIR
275
SPACER BUSH LEGROOM,RIGHT
275
BUSHING LINE MOUNTING
280
WASHER COMPRESSED AIR LINE TO BRACKET
285
NUT CLAMP TO BRACKET
900
PIN BUSHING HOUSING INFRARED CONTROL MODULE FOR DRIVE AUTHORIZATION SYSTEM
901
CONTACT BUSHINGR 27, 0.75 MM2
