Поз.
Артикул
Описание
10

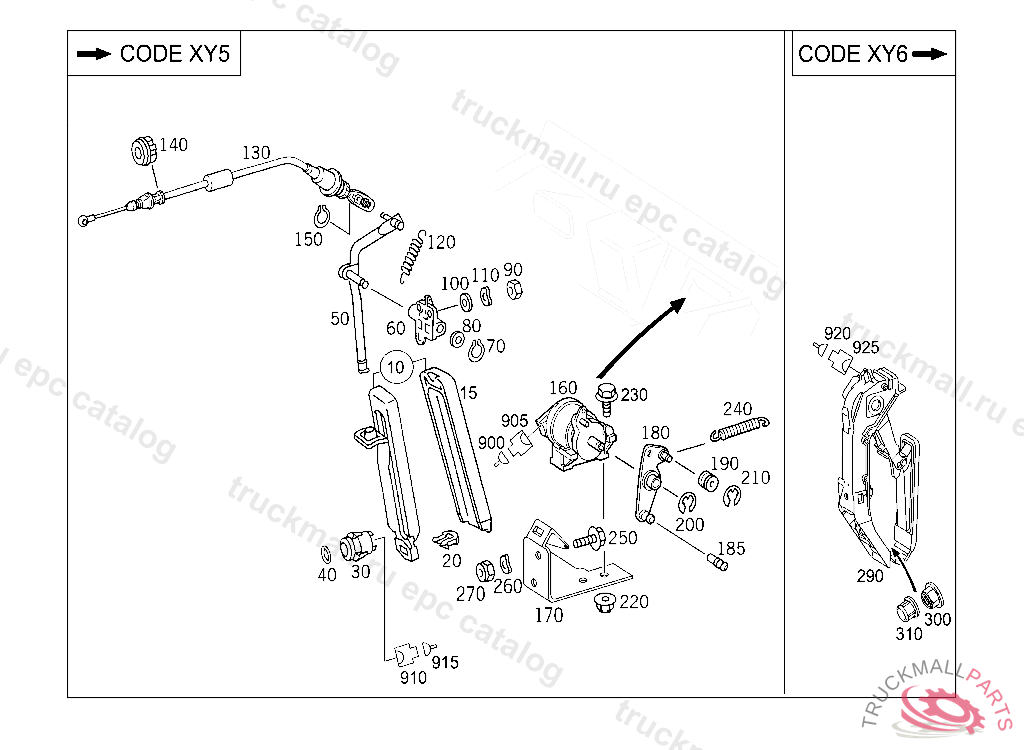

ACCELERATOR PEDAL
15
PAD , 000 112328 003 056792 007 046654 083 000998 086 000712 093 000557 102,103 091560 105 115062 183 001323 190 001262
20
CLIP
30
KICK-DOWN SWITCH , FROM CHASSIS: 011: 12/52 100001 007,008,015,017: 12/52 200001
40
SEAL RING KICK-DOWN SWITCH
50
LEVER ACCELERATOR PEDAL
60
BEARING PEDAL LEVER TO FRONT PANEL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
70
LOCK RINGTO 000 553 37 01,000 553 39 01,
80
FITTED WASHER ACCELERATOR PEDAL BEARING,B 838714,J 003392
90
NUT SPRING-LOADED PUSH ROD
100
WASHER COMPRESSED AIR LINE TO BRACKET
110
SPRING WASHER LICENSE PLATE TO BRACKET
120
SPRING
130
BOWDEN CABLE TO ACCELERATOR PEDAL LEVER, X 16755320060816
140
RUBBER BUFFER WIRE CABLE TO FIRE WALL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
150
LOCK PLATE PIN TO CLUTCH SLAVE CYLINDER BOOT, Replaced By: N006799005004
160
SENDER UNIT
170
BRACKET PEDAL VALUE SENSOR, X 16755320060816
180
LEVER CONTROL LEVER
185
BALL PIVOT
190
ROLLER , NOT USED
200
LOCK PLATE , 656999
210
LOCK PLATE RELEASE LEVER TO SHAFT
220
NUT , Replaced By: N913023006001
230
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
240
SPRING , NOT USED
250
SCREW PUMP TO BRACKET
260
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
270
NUT
290
ACCELERATOR PEDAL , F 02695920020531
300
NUT MOUNTING FRAME TO SUPPORT M6
310
COVER ACCELERATOR PEDAL TO FIRE WALL
900
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
900
GASKET. BLIND PLUG BLUE
905
PIN BUSHING HOUSING 6-POLE
910
PIN BUSHING HOUSING BIPOLAR
915
ROUND PIN BUSHING4 MM2
920
GASKET. BLIND PLUG BLUE
920
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
920
GASKET YELLOW 0.2-0.5MM2,126373
925
PIN BUSHING HOUSING 6-POLE
