Главная
›
Mercedes
›
CROSS-COUNTRY VEHICLE
›
G 500
›
463.248 FROM CHASSIS 144226
›

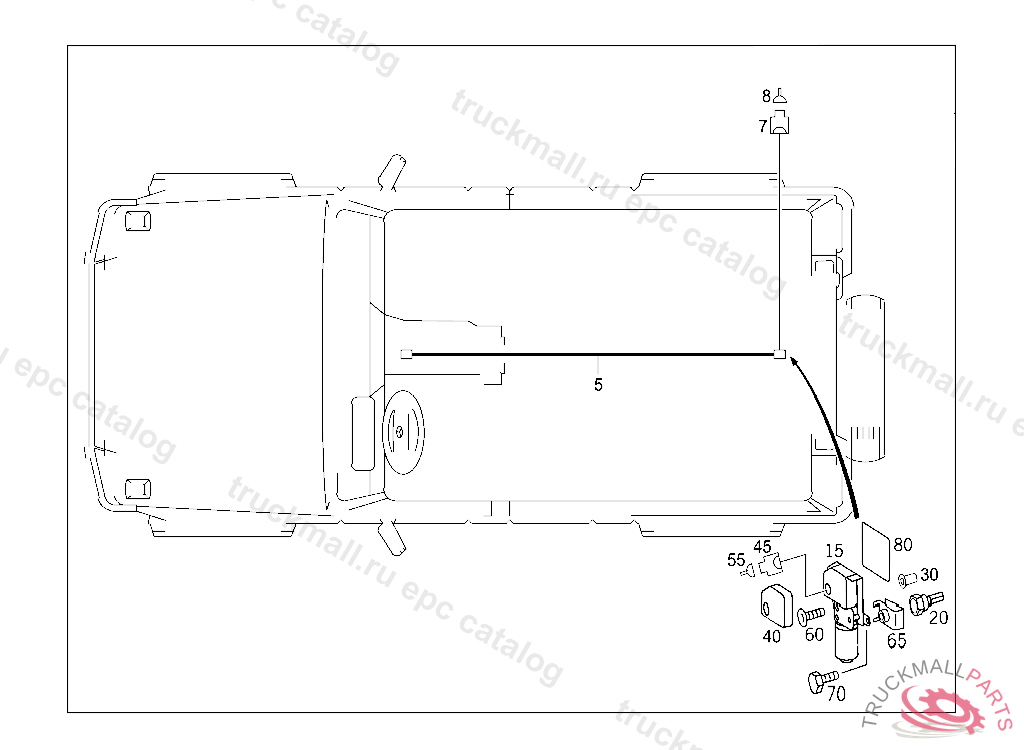

82 ELECTRICAL SYSTEM
›
460 SLIDING ROOF ELECTRICAL EQUIPMENT
Mercedes A0015453826 - Контактный штифт
G 500 463.248 FROM CHASSIS 144226
82 ELECTRICAL SYSTEM - 460 SLIDING ROOF ELECTRICAL EQUIPMENT
Поз.
Артикул
Описание
5
A4635403206
WIRING HARNESS SLIDING ROOF
7
A0115455028
PIN BUSHING HOUSING HEADLAMP,WIPER MOTOR,BLOWER SWITCH
8
A0035452626
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
8
A0015453726
PIN BUSHING
15
A4637800007
DRIVE SLIDING ROOF
20
A1237800048
CAP , 033 102016 123 329278 130 276373
30
N913024006100
RIVETED NUT. RIVET NUT BRACKET TO ORNAMENTAL GRILLE M6X14.5
30
N913010006106
RIVETED NUT REFRIGERANT LINE TO CAB REAR PANEL
40
A1247820256
COVERING ELECTRIC SLIDING ROOF MOTOR
45
A0095453628
COVERTO 006 545 81 28
45
A0095455328
PLUG HOUSING FINAL CONTROL ELEMENT, 8-POLE
55
A0015453826
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
60
N007991006008
SCREW GRIP RAIL MOUNTING M 6 X 20
65
A0039941745
LOCK
70
N304017006016
SCREW PUMP TO BRACKET
80
A4636820040
INSULATION CONTACT SPIRAL
