Mercedes A4636823271 - ЭКРАН ЗАЩИТНЫЙ ГЛУШИТЕЛЯ

G 55 AMG 463.270 FROM CHASSIS 144226

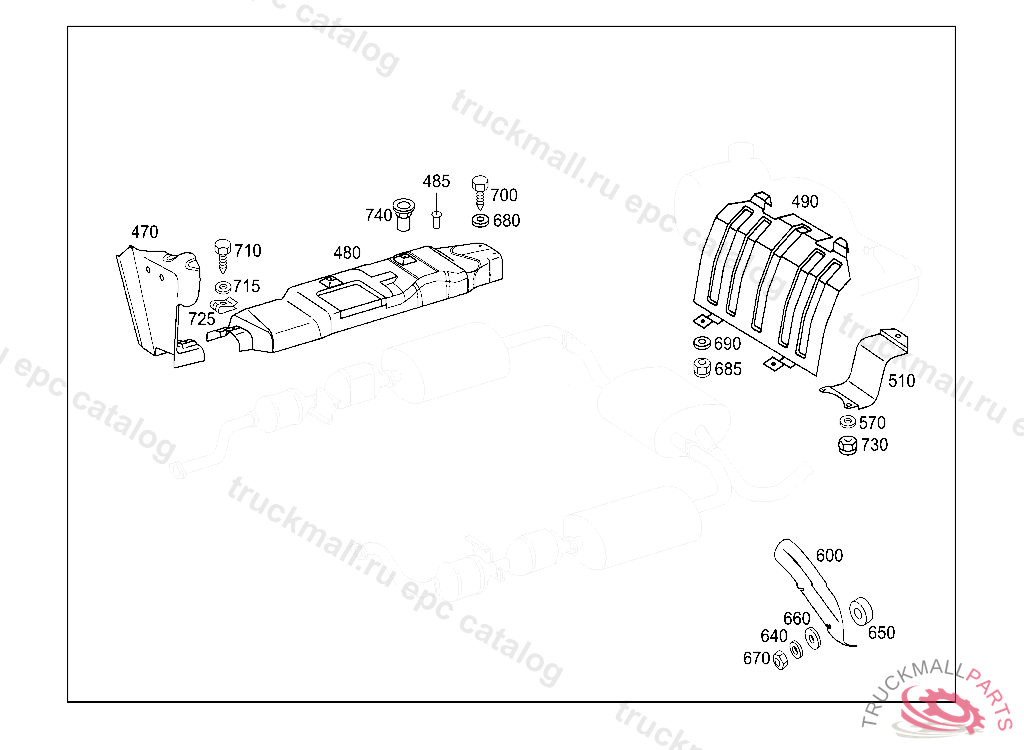

49 EXHAUST SYSTEM - 300 SCREENING PLATES IL. 2

Поз.
Артикул
Описание
470
A4636823271
SCREENING FRONT LEFT, X 16755120060929
470
A4636823671
SCREENING FRONT EXHAUST SYSTEM
480
A4636822520
INSULATION LEFT
480
A4636822620
INSULATION LEFT
480
A4636802020
SCREENING RIGHT
490
A4634920130
PROTECTIVE PLATE AT FRAME ABOVE MUFFLER REAR
510
A4634921130
PROTECTIVE PLATE
570
A4634920176
WASHER
570
A4604920376
WASHER MAIN MUFFLER SUSPENSION
700
N000000001454
TAPPING SCREW , A 192209 ALSO INSTALLED ON A 159651 - A 192207 WITH CODE 805 FROM MODEL YEAR'95
710
N000000000461
TAPPING SCREW MOUNTING PARTS 4.8X16
710
N007976004304
SHEET METAL SCREW
715
A4634920176
WASHER
715
A4604920376
WASHER MAIN MUFFLER SUSPENSION
725
A0029948245
LOCK INTAKE SCOOP TO FENDER
730
N910112006001
NUT , Replaced By: N913023006001
740
A2109900150
HEXAGON NUT W COLLAR BRACKET MOUNTING
