Поз.
Артикул
Описание

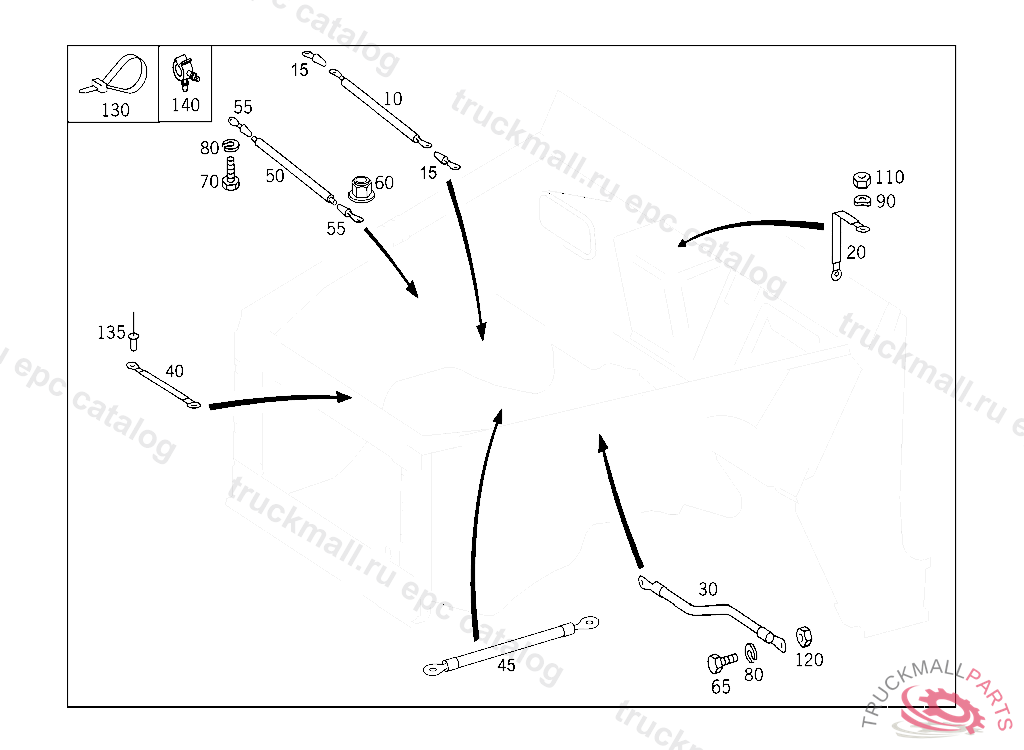

10
GROUND STRAP FRAME TO BODY
15
CABLE SHOE BATTERY CABLE
20
GROUND STRAP FROM ENGINE HOOD TO COWL
30
NEG. CABLE FROM SIDE MEMBER TO ENGINE
40
GROUND STRAP ENGINE HOOD CATCH
40
GROUND STRAP FROM IGNITION COIL TO CYLINDER HEAD, 200 A 086780 280,283 F 013043
45
GROUND STRAP GROUND TANK TAKE-OFF FRAME
50
ELECTRIC CABLE FROM BATTERY TO BATTERY SUPPORT, ORDER BY THE METER
55
CABLE SHOE BATTERY CABLE
60
NUT JUMP LEAD NEGATIVE POLE
65
SCREW HANDLE TO LID
65
HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRACKET
70
HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRACKET
80
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
90
SPRING WASHER LICENSE PLATE TO BRACKET
110
NUT SPRING-LOADED PUSH ROD
120
NUT
130
LOOM TIE LINE MOUNTING 280 MM
135
RIVET ,190 000697105 108727
