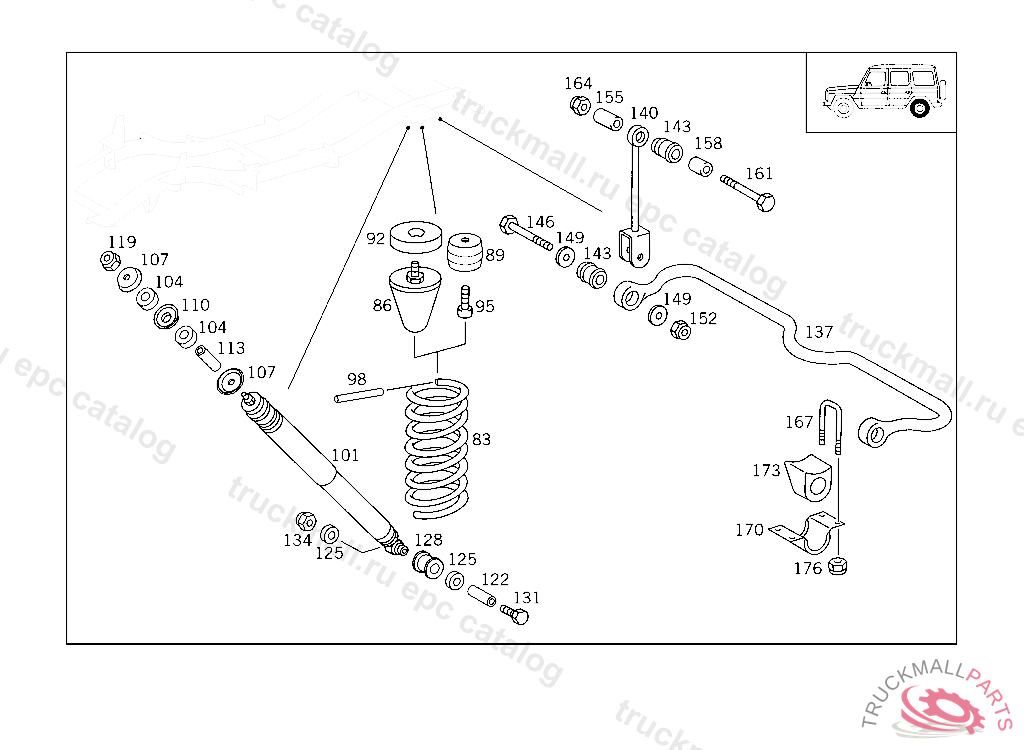

Поз.
Артикул
Описание
83
REAR SPRING BLUE, ONLY REPLACEABLE BY PAIRS
83
REAR SPRING YELLOW-ORANGE, ONLY REPLACEABLE BY PAIRS
83
REAR SPRING VIOLET, ONLY REPLACEABLE BY PAIRS
83
REAR SPRING , ONLY REPLACEABLE BY PAIRS
83
REAR SPRING YELLOW-ORANGE, ONLY REPLACEABLE BY PAIRS
86
RUBBER BUFFER
89
HELPER SPRING REAR
92
SPRING CASE ,038939 DENMARK,FROM CHASSIS 038052
95
CAP BOLT. SCREW CYLINDER TO TRANSMISSION CASE M 12X40
95
SCREW , Replaced By: N000912012204
98
HOSE , Replaced By: A4609977082
98
HOSE515 MM
101
SHOCK ABSORBER REAR 200GE-300GE, F & S
101
SHOCK ABSORBER REAR
104
RETAINER
107
RUBBER BUFFER
110
RETAINERTO 004 326 04 00
113
BUSHING BOTTOM TO 673 323 00 00,675 323 06 00
119
NUT STEERING SUPPORT TO FRAME
119
NUT , Replaced By: N910113014000
122
BUSHINGTO 004 326 04 00,003 326 88 00
125
SPACER RINGTO 002 323 86 00,003 323 03 00,
125
SPACER RINGBILSTEIN
128
RUBBER MOUNTING BOTTOM TO 006 323 29 00,31 00
131
SCREW SHOCK ABSORBER TO BOTTOM BRACKET M 16X85
131
SCREW , Replaced By: N000960016250
134
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
134
NUT COMBINATION CYLINDER TO BEARING BRACKET
137
TORSION BAR REAR
140
LINK REAR
143
BEARING TORSION BAR BEARING
146
SCREW CONNECTING PIPE TO EXHAUST MANIFOLD M 12X65
149
WASHER
152
NUT END PIECE TO EXHAUST PIPE
155
BUSHING LINK TO CONSOLE
158
BUSHING LINK TO CONSOLE
161
SCREW SPRING CLAMP,5 533057
164
NUT END PIECE TO EXHAUST PIPE
167
CLAMP
170
BRACKET
173
RUBBER MOUNTING
173
RUBBER MOUNTING TORSION BAR
176
NUT STRAP TO BRACKET
176
NUT , Replaced By: N910113010000
