Поз.
Артикул
Описание

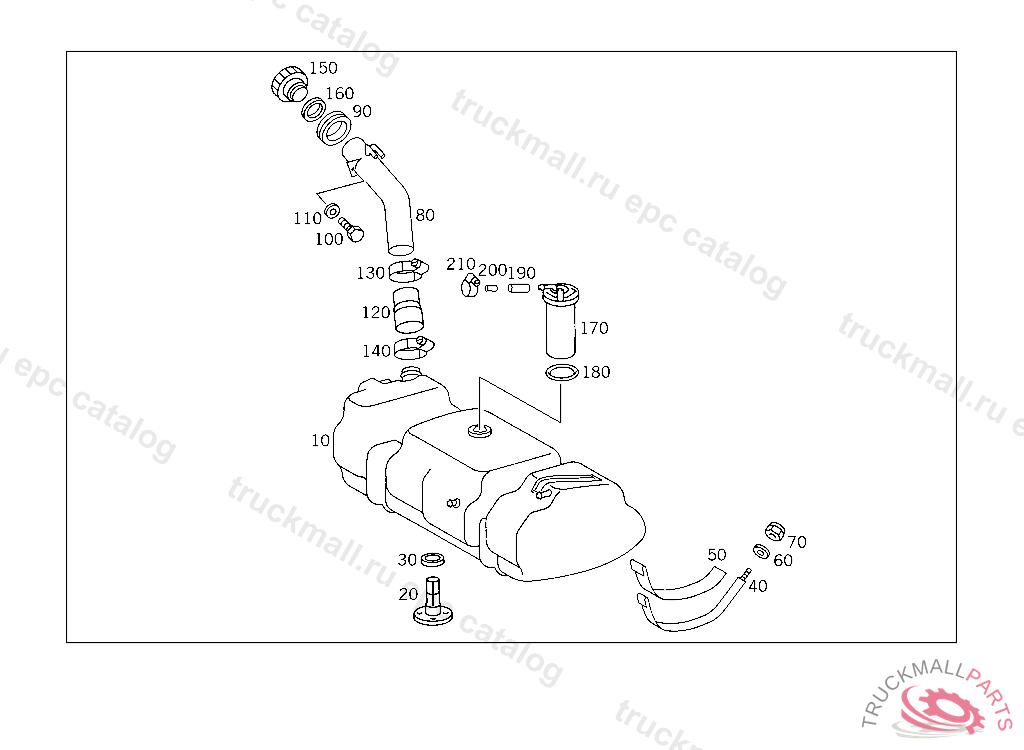

10
FUEL TANK , CONVERSION TO PLASTIC FUEL TANK POSSIBLE WITH MANUFACTURER'S CONFIRMATION
20
FUEL STRAINER
30
SEAL RING
40
STRAP FUEL TANK MOUNTING, 059608(WHC: WDB) 904079(WHC: VAG)
50
SHIM RIGHT FUEL TANK, 059608(WHC: WDB) 904079(WHC: VAG)
50
SHIM LEFT TO A 461 470 00 04
60
WASHER EXHAUST MUFFLER TO STRAP
70
NUT STRAP TO BRACKET
80
FILLER NECK
90
GROMMET FILLER NECK THRU FENDER RECESS
100
SCREW PUMP TO BRACKET
110
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
110
WASHER COMPRESSED AIR LINE TO BRACKET
120
HOSE FROM FILLER PIPE TO FUEL TANK
120
EXTENSION BETWEEN FUEL TANK AND FILLER NECK
130
CLAMP , Replaced By: N000000000672
130
CLAMP HOSE FASTENING 50-70X13 MM
140
CLAMP (DRY FILTER)
140
CLAMP HOSE TO RETARDER 60-80X13 MM
150
FILLER CAP , WITH LOCK UNDEFINED
150
FILLER CAP , Replaced By: A0004700730
150
FILLER CAP *** FA.HUF, STATE LOCK NUMBER WHEN ORDERING
150
FILLER CAP
160
SEAL RING
170
SENDER UNIT FUEL TANK
180
GASKET FUEL GAUGE SENDER UNIT TO FUEL TANK, FOR USE WITH SHORT MERCEDES-BENZ CAB5 3506525 495522
190
HOSE LEAK LINE, ORDER BY THE METER
200
CYLINDRICAL PIN DIFFERENTIAL LOCK
210
CLAMP CHECK VALVE,K 169122
