Поз.
Артикул
Описание

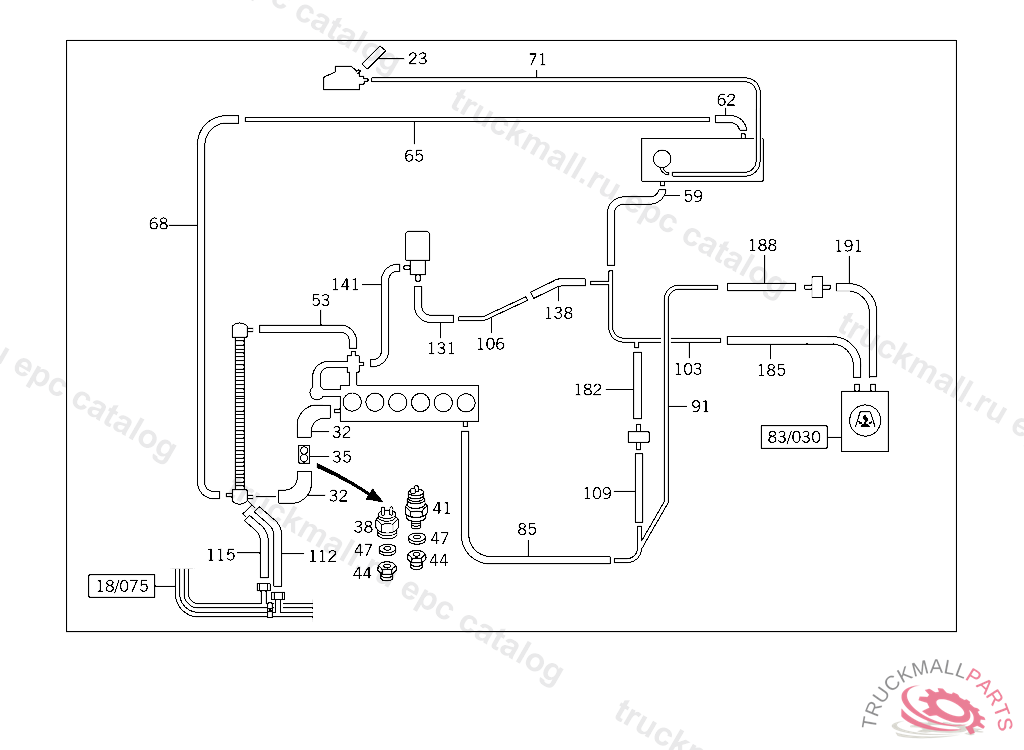

23
COOLING WATER PIPE OVERFLOW
23
HOSE TO ELEMENT AT FRONT SEAT
32
HOSE ON RADIATOR,TOP
35
LINE ON RADIATOR,TOP
38
SWITCH,AUTOMATIC TEMPERATURE SWITCH
41
SWITCH,AUTOMATIC TEMPERATURE SWITCH
44
SCREW PLUG FUEL TANK
44
SCREW PLUG
47
SEAL RING
53
HOSE RADIATOR BOTTOM
59
HOSE FROM EXPANSION TANK TO RECIRCULATING PUMP
62
HOSE ENGINE BREATHING 8X15X2550MM, TO BE ADAPTED DURING ASSEMBLY
62
HOSE , Replaced By: N000000000734
65
BREATHER PIPE FROM RADIATOR TO EXPANSION TANK
68
HOSE , Replaced By: N000000000734
68
HOSE ENGINE BREATHING 8X15X2550MM, TO BE ADAPTED DURING ASSEMBLY
71
HOSE ENGINE BREATHING 8X15X2550MM, TO BE ADAPTED DURING ASSEMBLY
71
HOSE , Replaced By: N000000000734
85
HOSE HEATING VALVE, ONLY USED WITH AUXILIARY HEATER
91
LINE
103
LINE AT FIRE WALL
106
LINE
109
HOSE , Replaced By: A4635019782
109
HOSE FROM MOLDED HOSE TO HEAT EXCHANGER, TO BE ADAPTED DURING ASSEMBLY
112
LINE RADIATOR BOTTOM
115
LINE ON RADIATOR,TOP
131
HOSE FROM RECIRCULATING PUMP TO AUXILIARY HEATER, ORDER BY THE METER
131
HOSE FROM PIPE TO HEATER UNIT
131
HOSE FEED & RETURN LINES TO TUNNEL
138
HOSE STANDARD VERSION 200GE-300GE, 078648 907337
141
HOSE HEAT EXCHANGER
182
HOSE
185
HOSE FROM HEAT EXCHANGER TO RETURN
188
HOSE
191
HOSE
