Главная
›
Mercedes
›
CROSS-COUNTRY VEHICLE
›
G 400 CDI
›
463.332 FROM CHASSIS 144226
›
27 MERCEDES-BENZ AUTOMATIC TRANSMISSION
›

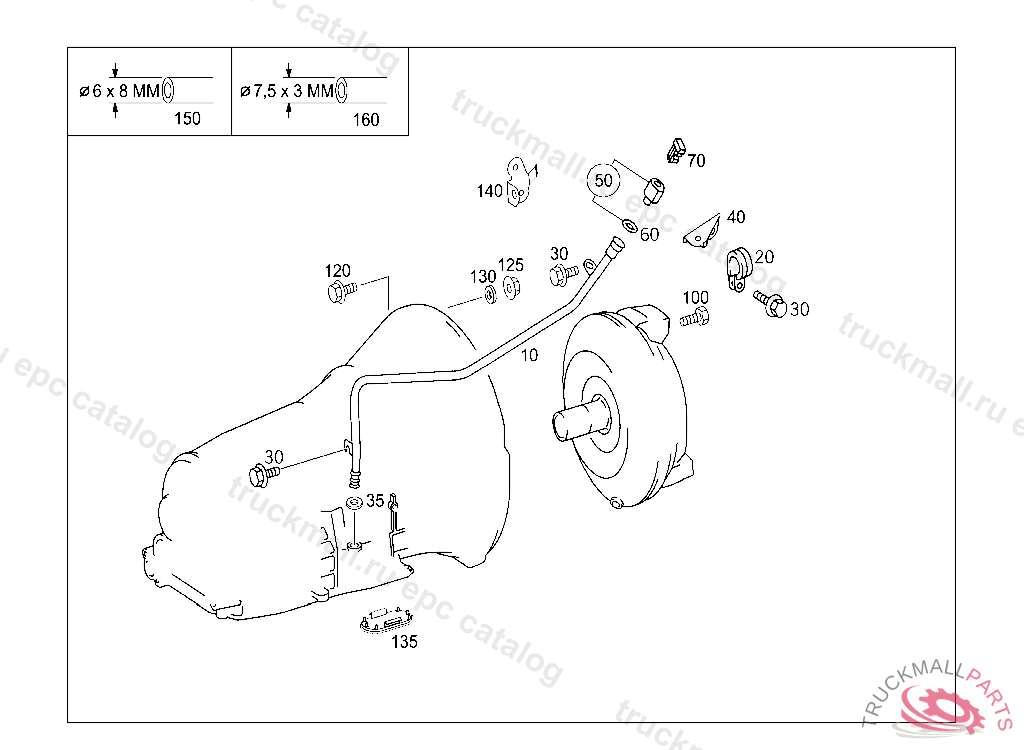

125 ATTACHED PARTS FOR TRANSMISSION, OIL FILLER PIPE
Mercedes A0229972248 - Кольцо уплотнительное щупа АКПП
G 400 CDI 463.332 FROM CHASSIS 144226
27 MERCEDES-BENZ AUTOMATIC TRANSMISSION - 125 ATTACHED PARTS FOR TRANSMISSION, OIL FILLER PIPE
Поз.
Артикул
Описание
10
A2202700184
OIL FILLER PIPE
20
N916016012200
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
30
N910106006004
HEXAGON HEAD BOLT
35
A0229972248
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
40
A2202710840
BRACKET BRACKET TO ENGINE, A 34893920030131
50
A1402700091
COVER OIL FILLER PIPE
60
A0229972248
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
70
A1409910055
DOWEL PIN OIL FILLER PIPE
100
A1249902201
SCREWM 8X18
120
N910143010000
SCREW PLATE TO FRAME M 10X45
120
A0049908104
BOLT. SCREW OIL FILTER TO CYLINDER CRANKCASE M 10X95
120
N000912010233
SCREW STRAP TO SUPPORT M 10X140
125
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
130
N000000003386
WASHER P.T.O. TO TRANSMISSION
130
N000125010532
WASHER RADIATOR TO RUBBER MOUNTING
135
A0009983121
CAP CAP ASSEMBLY OPENING IN OIL PAN
