Mercedes A0009907420 - БОЛТ М8

OM 422 OTOMARSAN/TUERKEI 482.912

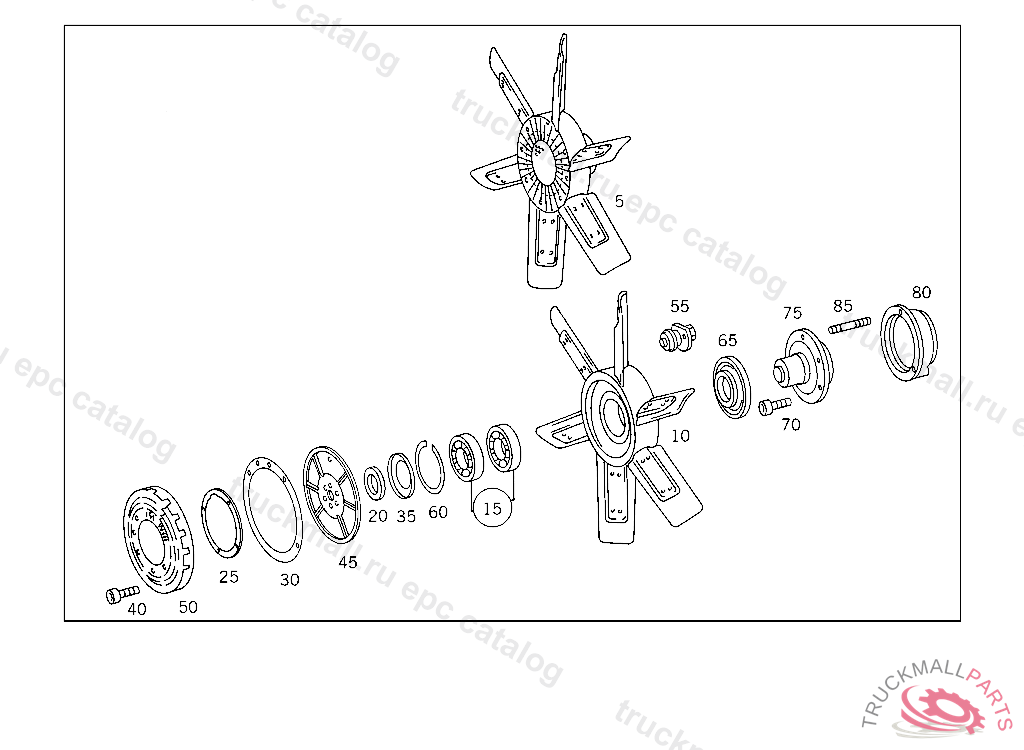

20 ENGINE COOLING SYSTEM - 001 FAN

Поз.
Артикул
Описание
5
A0022056206
FAN 8-BLADE,WITH FLEXIBLE FAN HUB, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
A0012059506
FAN , Replaced By: A0022056206
10
A0012057006
FANTO 001 205 40 06
15
A0049810525
BALL BEARING
20
A0002060351
SPACER RING
25
A0002060380
GASKET
30
A0002060580
GASKET FRONT COVER
30
A0002060080
GASKET , Replaced By: A0002060580
35
A0002060160
SEAL RING
40
A0019900012
SCREW COVER TO FAN TO 001 205 95 06
45
A0002060828
PRIMARY CUPTO 001 205 95 06
50
A0002062803
COVERTO 001 205 95 06
55
A0002000072
CLAMPING PIECE (SLIDE)
60
A0002050173
LOCK AS REQUIRED 2.1 MM
60
A0002050373
LOCK AS REQUIRED 2.3 MM
60
A0002050073
LOCK AS REQUIRED 2.0 MM
60
A0002050273
LOCK AS REQUIRED 2.2 MM
65
A0039979340
SEAL RING
70
A0009907420
SCREW
75
A0002061845
FLANGETO 001 205 95 06
80
A4220351114
INTERMEDIATE PIECE FAN TO VIBRATION DAMPER
85
N000939008120
STUD BOLT FAN,INTERMEDIATE PIECE,AND PULLEY TO HUB OR TO DAMPER,RESP.
999
A0005832235
RECEPTACLE SILICONE GREASE
