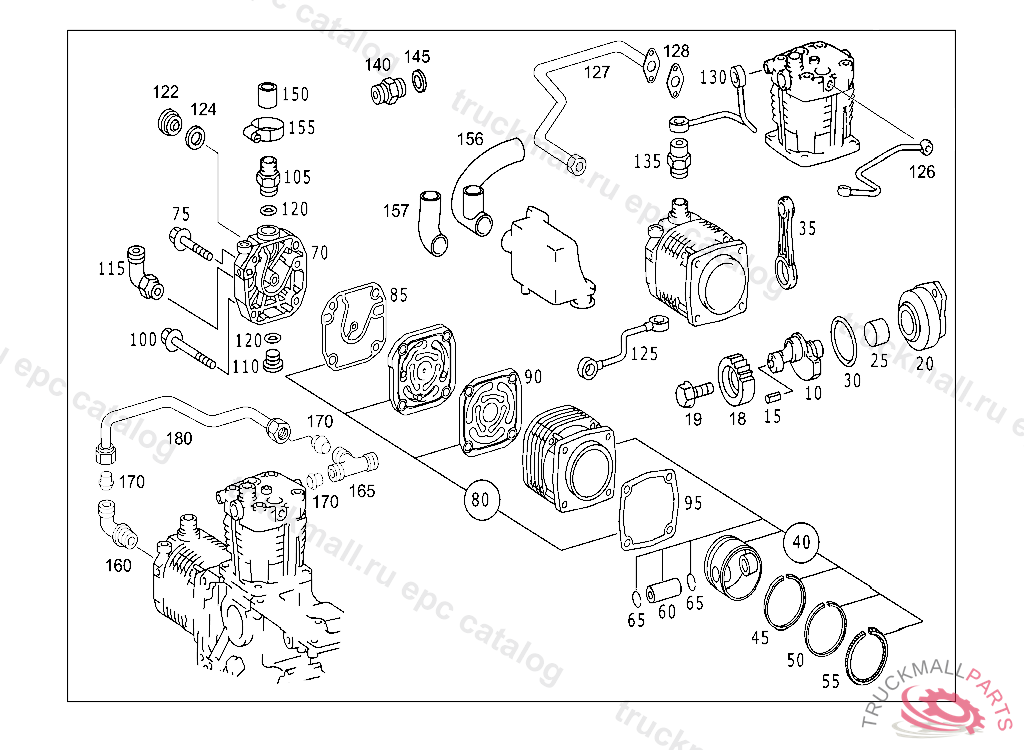

Поз.
Артикул
Описание
10
CRANKSHAFT TWO-CYLINDER
15
ROLL PIN
18
DRIVE GEAR F COMPRESSOR
19
SCREW DRIVE GEAR TO CRANKSHAFT
20
FLANGE AIR COMPRESSOR BEARING FLANGE
20
FLANGE AIR COMPRESSOR BEARING FLANGE
25
BUSHING
30
SEAL RING BEARING FLANGE IN TIMING CASE & AIR COMPRESSOR HOUSING,RESP.
30
SEAL RINGTO 388 476 71 69
35
CONNECTING ROD
35
CONNECTING ROD
40
CYLINDER LINER WITH PISTON,AIR-COOLED
45
PISTON RING GROOVE I
50
PISTON RING GROOVE II
55
PISTON RING GROOVE III
60
PISTON PIN
65
SNAP RING
70
CYLINDER HEAD HORIZONTAL AIR COMPRESSOR
70
CYLINDER HEAD VERTICAL AIR COMPRESSOR
70
CYLINDER HEAD HORIZONTAL AIR COMPRESSOR
70
CYLINDER HEAD HORIZONTAL AIR COMPRESSOR
75
SCREW GGVS-COMPONENT IN BATTERY CARRIER M6 X 55
80
VALVE PARTS KIT
85
GASKET DISC VALVE TO CYLINDER HEAD
85
GASKET DISC VALVE TO CYLINDER HEAD
90
VALVE DISC (SUCTION DISC)
95
GASKET CYLINDER LINER TO TIMING CASE
95
GASKET CYLINDER LINER TO TIMING CASE
100
SCREW CYLINDER HEAD AND CYLINDER LINER TO CYLINDER CRANKCASE
105
FITTING SUCTION CONNECTION
110
SCREW PLUG OIL COOLER,5 360280
115
ELBOW FITTING LINE CONNECTION
120
SEALING CORD SUCTION LINE TO OIL PUMP
122
SCREW PLUG VERTICAL AIR COMPRESSOR
124
SEAL RING SPEEDOMETER DRIVE
125
LINE AIR-COMPRESSOR-TO-CRANKCASE COOLING WATER RETURN LINE
125
LINE AIR-COMPRESSOR-TO-CRANKCASE COOLING WATER RETURN LINE, Replaced By: A5412001852
126
LINE FROM CRANKCASE COOLING WATER INLET TO AIR COMPRESSOR, Replaced By: A5412003552
126
LINE AIR-COMPRESSOR-TO-CRANKCASE COOLING WATER RETURN LINE
126
COOLANT LINE FROM CRANKCASE COOLING WATER INLET TO AIR COMPRESSOR
127
SUCTION LINE HORIZONTAL AIR COMPRESSOR TO VERTICAL AIR COMPRESSOR
128
GASKET COOLING WATER LINE
130
COOLANT LINE HORIZONTAL AIR COMPRESSOR TO VERTICAL AIR COMPRESSOR
135
FITTING HAND PUMP TO FUEL FILTER
140
SCREW-IN FITTING , Replaced By: A0029970271
140
SCREW-IN FITTING AIR COMPRESSOR,CONNECTION: "20"
145
THRUST RING SUCTION LINE TO OIL PUMP
150
HOSE INTAKE MUFFLER TO AIR COMPRESSOR
155
LOOM TIE. CLAMP HOSE FASTENING
156
HOSE FROM INTAKE MUFFLER TO AIR INTAKE PIPE
157
HOSE FROM INTAKE MUFFLER TO AIR INTAKE PIPE
160
ELBOW FITTING LINE CONNECTION
165
T-FITTING COMPRESSED AIR LINE TO AIR COMPRESSOR
165
T-FITTING COMPRESSED AIR LINE TO AIR COMPRESSOR
170
COUPLING HALF. SEAL CONE LINE CONNECTION DN 18
180
LINE AIR COMPRESSOR LINE 18X1.5MM
