Mercedes A0011552815 - ШКИВ ГЕНЕРАТОРА

OM 502 LA 542.942

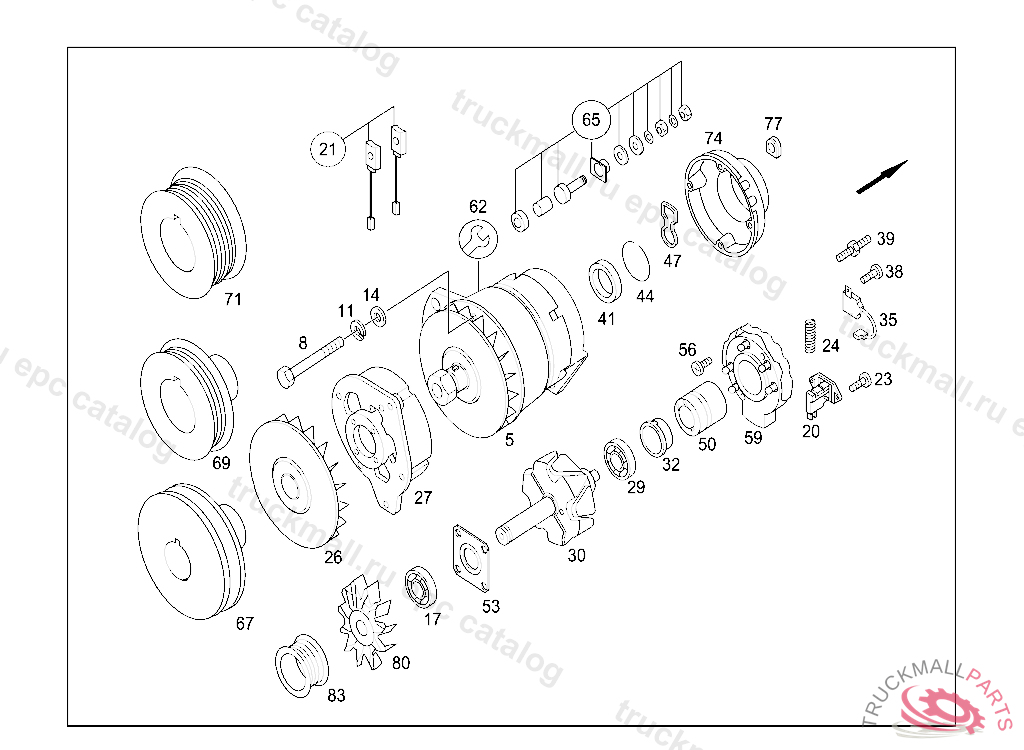

15 ENGINE ELECTRICAL EQUIPMENT - 980 EVOBUS SPECIAL FITTINGS IL. 1

Поз.
Артикул
Описание
5
A0111545002
ALTERNATOR28V/140A
8
A0009907721
SCREW
11
A0009906147
LOCK WASHER
14
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
14
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
17
A0059812125
BALL BEARING
20
A0021549606
REGULATOR AND CUT-OUT
23
A0009907521
SCREW REGULATOR MOUNTING TO 009 154 07 02
26
A0011550818
FANTO 011 154 50 02
29
A0049811401
CYLINDR. ROLLER BEARING
30
A0001546715
ROTOR
32
A0001540051
SPACER RING
35
A0011566701
CONDENSER
38
N007985006580
SCREW APPARATUS PLATE TO CAB,K 062140
41
A0069977447
SEAL RING
44
N009045030000
SNAP RING
47
A0001541180
GASKET
56
A0009907221
SCREW
59
A0011540816
RECTIFIERTO 009 154 08 02,008 154 78 02
62
A0001501672
REPAIR KIT ROTOR TO 009 154 08 02,008 154 78 02
65
A0001500429
REPAIR KIT TERMINAL
67
A0011552815
PULLEY ALTERNATOR TOP,093699
74
A4421540104
COVER WITH AIR INTAKE. COVER
77
A0001541280
CABLE GROMMET. GASKETTO 011 154 50 02
