Mercedes N304017008034 - Болт крепления

C 350 CDI 204.223

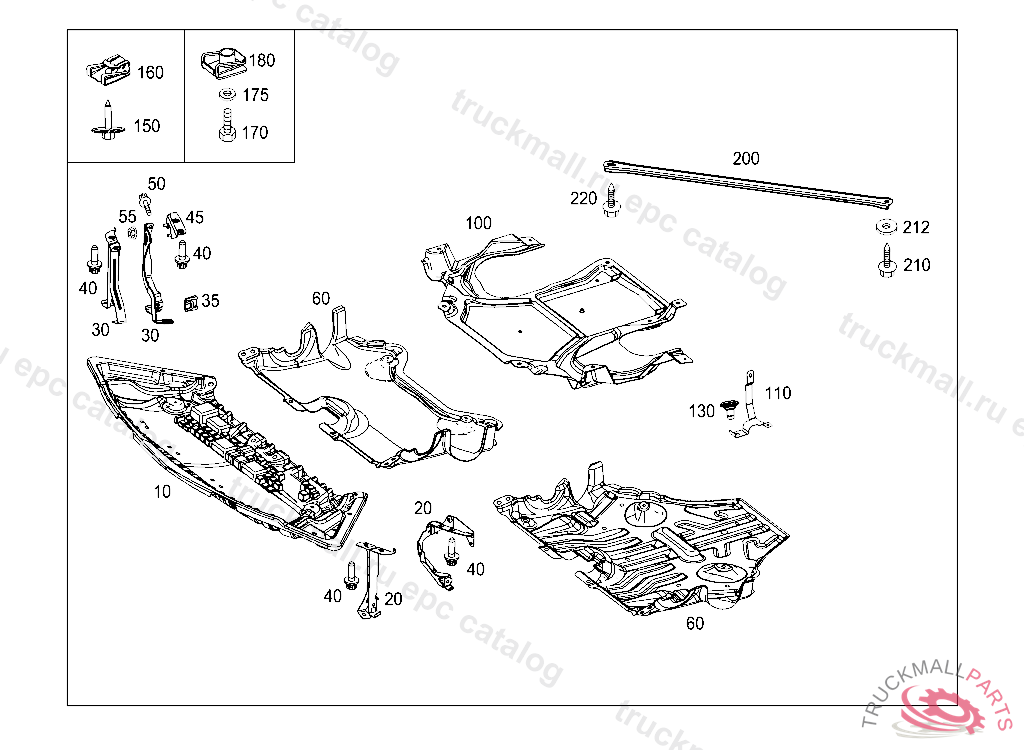

52 CHASSIS SHEET METAL / AIR INTAKE - 030 ENGINE COMPARTMENT PANELLING, GASOLINE VEHICLES

Поз.
Артикул
Описание
20
A2045241340
BRACKET LEFT
30
A2045241440
BRACKET RIGHT
40
N910143006002
HEXALOBULAR BOLT. SCREW
60
A2045240101
PROTECTIVE PLATE CENTRAL
130
A2109900150
HEXAGON NUT W COLLAR BRACKET MOUNTING
150
A0019906036
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
160
A0019949845
LOCK. CLIP-TYPE NUT
160
A0049943145
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
170
N304017008034
SCREW BRACKET TO CROSS CONNECTION STRUT
175
N000000003250
WASHER BRACKET TO CAB REAR PANEL
180
A0049941845
SPRING-THREAD NUT PROTECTIVE PLATE
200
A2045241147
STRUT BETWEEN LONGITUDINAL MEMBER ANDFRAME-TYPE INTEGRAL SUPPORT
210
N000000005053
HEXAGON HEAD BOLT HEAT SHIELD MOUNTING M10X20
212
N001440012005
WASHER BEARING BRACKET TO BRACKET
220
N000000005053
HEXAGON HEAD BOLT HEAT SHIELD MOUNTING M10X20
