Поз.
Артикул
Описание

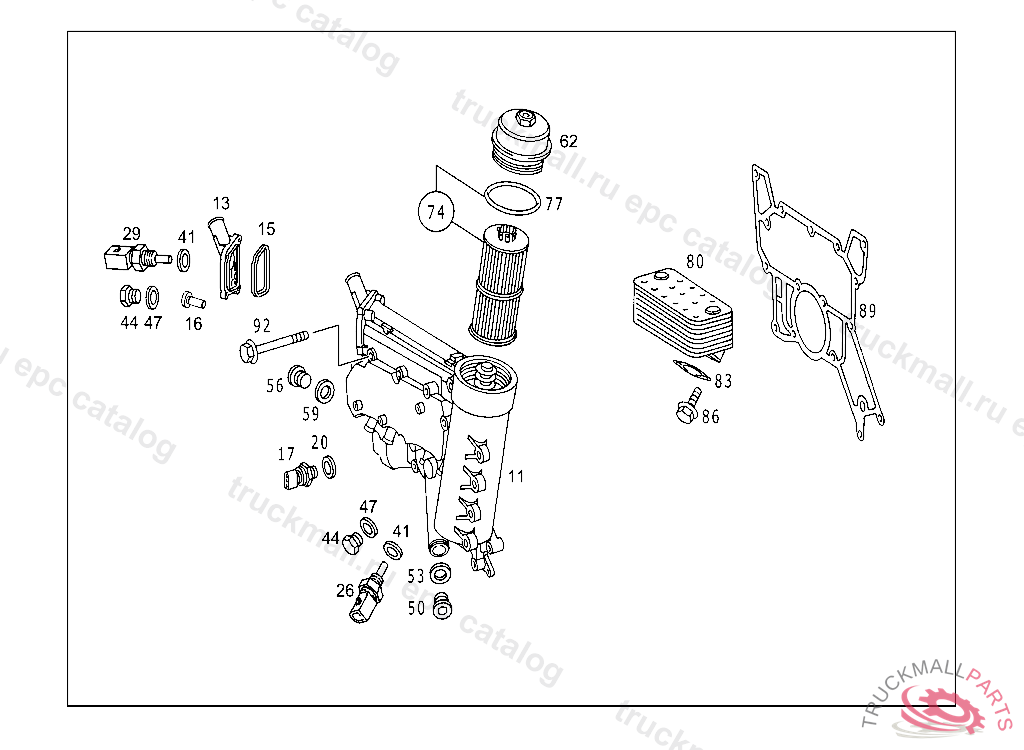

11
OIL COOLER HOUSING , FITTING A 5411880102 AND SEAL A 5411880080 INCLUDED IN PACKAGE CONTENTS SEAL UNNEEDED THREADED OPENINGS WITH SCREWS/BOLTS BOLT M14 N 007604 014110, SEALING RING N 000000 001069 BOLT M16 N 007604 016108, SEALING RING N 000000 001070
11
HOUSING , Replaced By: A5411883004
13
PIPE SOCKET
15
GASKET
16
HEXALOBULAR BOLT BRACKET TO CONSOLE M6X16,V 224423
17
PRESSURE SWITCH OIL PRESSURE
20
SEALING RING OIL PRESSURE GAUGE SENDER UNIT
26
SENDER UNIT TEMPERATURE SENDER UNIT
26
SENDER UNIT TEMPERATURE GAUGE SENDER UNIT
29
SENDER UNIT TEMPERATURE GAUGE SENDER UNIT
29
SENDER UNIT TEMPERATURE SENDER UNIT
41
SEALING RING
44
SCREW PLUG RELAY VALVE,CONNECTION "20",RIGHT
44
SCREW PLUG FUEL TANK
47
SEALING RING
47
SEALING RING OIL PRESSURE GAUGE SENDER UNIT
50
SCREW PLUG FRONT COVER
53
SEALING RING NON-RETURN OIL VALVE
56
SCREW PLUG
59
SEALING RING. SCREW TO PLUG LONGITUDINAL OIL DUCT,OIL PUMP
62
COVER OIL FILLING
74
TS OIL FILTER ELEMENT PARTS KIT
77
SEAL RING COVER TO FILTER HOUSING
80
OIL COOLER
80
OIL COOLER
83
GASKET , RECOMMENDED FOR TAKING ON STOCK
86
HEXAGON HEAD BOLT. SCREW ON STOP M 8X50
89
GASKET OIL COOLER TO CYLINDER CRANKCASE, FOLLOWING CONVERSION TO HIGH-SPEED BELT DRIVE,USE REPLACEMENT PART FROM KIT 599020/01/02
92
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
92
HEXAGON HEAD BOLT MOUNTING,GAS CYLINDERS M10X110
92
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
