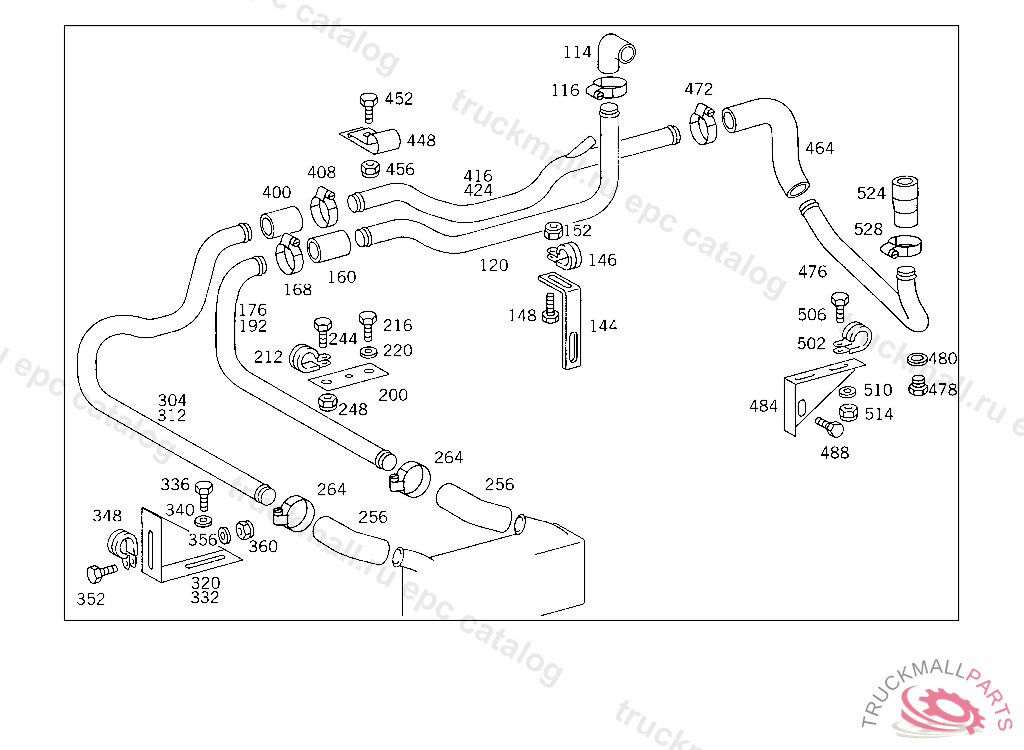

Поз.
Артикул
Описание
114
MOLDED HOSE FROM HEATING WATER PIPE TO HEATER
116
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
116
CLAMP , Replaced By: N000000000671
120
COOLING WATER PIPE
120
COOLING WATER PIPE
146
CLAMP SAFETY VALVE AT BRACKET
146
CLAMP SUCTION LINE TO CROSS MEMBER
148
SCREW CAB FLOOR COVERING M 6X25
152
NUT PUMP TO BRACKET
152
NUT , Replaced By: N913004006001
160
HOSE CONNECTION OF OIL FILLER PIPES, ORDER BY THE METER
168
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
168
CLAMP , Replaced By: N000000000671
168
CLAMP HOSE FASTENING 50-70X13 MM
168
CLAMP , Replaced By: N000000000672
176
COOLING WATER PIPE COOLING WATER LINE TO OIL COOLER
192
COOLING WATER PIPE
200
BRACKET COOLING WATER PIPE TO TRANSMISSION
212
CLAMP SAFETY VALVE AT BRACKET
216
SCREW BRACKET TO FRAME SIDE MEMBER
220
WASHER
244
SCREW PUMP TO BRACKET
244
SCREW , Replaced By: N304017006016
248
NUT PUMP TO BRACKET
248
NUT , Replaced By: N913004006001
256
HOSE BRAKE VALVE,CONNECTION: "30"
264
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
264
CLAMP , Replaced By: N000000000671
304
COOLING WATER PIPE FROM OIL COOLER TO RETURN HOSE CONNECTION
312
COOLING WATER PIPE
320
BRACKET COOLING WATER PIPE TO TRANSMISSION
332
BRACKET FROM HOSE CONNECTION TO OIL COOLER
336
SCREW BRACKET TO FRAME SIDE MEMBER
340
WASHER
348
CLAMP SAFETY VALVE AT BRACKET
352
SCREW CAB FLOOR COVERING M 6X25
356
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
360
NUT PUMP TO BRACKET
360
NUT , Replaced By: N913004006001
400
HOSE CONNECTION OF OIL FILLER PIPES, ORDER BY THE METER
408
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
408
CLAMP , Replaced By: N000000000671
408
CLAMP HOSE FASTENING 50-70X13 MM
408
CLAMP , Replaced By: N000000000672
416
LINE FROM COOLING WATER LINE TO FEED HOSE CONNECTION
424
LINE
448
CLAMP SAFETY VALVE AT BRACKET
452
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
452
SCREW , Replaced By: N304017008016
452
SCREW CAB FLOOR COVERING M 6X25
456
NUT
464
MOLDED HOSE FROM HEATING WATER PIPE TO HEATER
472
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
472
CLAMP , Replaced By: N000000000671
476
LINE COOLING WATER LINE TO WATER PUMP
476
LINE FROM MOLDED HOSE TO WATER PUMP
478
SCREW PLUG 3/2-WAY VALVE,CONNECTION:,5 363121
480
SEAL RING LINE CONNECTION
484
BRACKET COOLING WATER LINE TO ENGINE
484
BRACKET COOLING WATER LINE TO ENGINE
488
SCREW OIL LINE TO CRANKCASE
502
CLAMP SAFETY VALVE AT BRACKET
502
CLAMP OIL LINE TO BRACKET
506
SCREW CAB FLOOR COVERING M 6X25
510
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
514
NUT
524
HOSE
524
HOSE , Replaced By: A3965060035
528
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
528
CLAMP , Replaced By: N000000000671
528
CLAMP HOSE FASTENING 50-70X13 MM
528
CLAMP , Replaced By: N000000000672
999
JOINT
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
999
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR 9X12 MM, LENGTH AVAILABLE 3000 MM
999
ADAPTER FITTING TEST CONNECTION
999
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
999
VALVE PARTTO 004 997 00 36,5 757289 AUSSERDEM EINGEBAUT IN 5 759173
999
ELBOW FITTING LINE CONNECTIONS
999
CONNECTOR , Replaced By: A0029905478
999
T-FITTING 3/2-WAY VALVE,CONNECTION: "33", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
999
SCREW. UNION SCREW , Replaced By: A0009973734
999
SCREW. UNION SCREW LINE CONNECTION
999
PROTECTIVE CAPWABCO
999
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
999
T-FITTING POWER STEERING
999
SEAL CONE LINE CONNECTION
999
ELBOW FITTING , Replaced By: A0049905371
999
ELBOW FITTING
999
999
FITTING LINE CONNECTION, Replaced By: N000000006446
999
SCREW SUPPORTING ARM TO TRANSMISSION CASE, 357.4 FROM IDENT NO. 064258 ALSO INSTALLED ON 061497,062932,062958,062976,062992,063007,063024,063038,063055,063069,063245,063260,063278,063294, 063312,063383,063666,063721,063762,063803,063896,063932,063986,064049,064076,064188,064206,064215, 064228.
999
VALVE REDUCTION VALVE 1,2 BAR
999
VALVE , Replaced By: A0034314906
999
VALVE REDUCTION VALVE 3 BAR
999
VALVE REDUCTION VALVE 2 BAR, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "2"
999
VALVE (3/2-WAY SOLENOID VALVE) WABCO
999
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
999
SEAL RING VALVE TO VALVE
999
FITTING LINE CONNECTION
999
SCREW REDUCTION VALVE TO BRACKET
999
SEAL RINGWABCO
999
SEAL RING24X2 MM
999
RUBBER MOUNTING ADJUSTABLE,FRONMT
999
BRACKET LINE MOUNTING
999
LINE FROM HIGH PRESSURE HOSE TO CONNECTOR 2375 MM
999
999
COOLING WATER PIPE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6005011524
999
ENGINE SUPPORT CLUTCH END
999
999
999
OUTLET ,000562
999
HOSE , Replaced By: A3015011582
999
MOLDED HOSE , Replaced By: A3015010782
999
HOSE
999
SUPPORTING ARM LEFT FRONT RUBBER MOUNTING, 357.4 FROM IDENT NO. 064258 ALSO INSTALLED ON 061497,062932,062958,062976,062992,063007,063024,063038,063055,063069,063245,063260,063278,063294, 063312,063383,063666,063721,063762,063803,063896,063932,063986,064049,064076,064188,064206,064215, 064228.
999
SUPPORTING ARM
999
PULL ROD FROM LEVER I TO LEVER II WITH KICKDOWN SWITCH
999
BOOT PULL ROD
999
LEVER DOUBLE LEVER
999
999
LINE
999
999
999
CLAMP LINE MOUNTING
999
CLAMP , Replaced By: A9424310043
999
UNION NUT LINE CONNECTION
999
FITTING LINE CONNECTION
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
SCREW VALVE TO CAB M 8X85
999
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: A0079900801
999
SCREW CENTRAL LOCK TO CAB M 10X16
999
NUT , Replaced By: N304032008006
999
SCREW , Replaced By: N000961016065
999
SCREW AT ENGINE MOUNTING,TO MOUNT LINES
999
SCREW BRACKET TO SUPPORT
999
GLAND , Replaced By: A0019901967
999
SEAL RINGTO 000 429 24 30
999
SEAL RING SRREW PLUG
999
CLAMP , Replaced By: N000000001641
999
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
HOSE FEED AND RETURN LINE CONNECTION, LENGTH AVAILABLE 1000 MM
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LOCK WASHERROCKINGER TYP 59 G140,59 G150
999
NUT , Replaced By: N913004008001
999
NUT BRACKET TO SIDE MEMBER
999
UNION NUT LINE CONNECTION, Replaced By: N000000006239
999
HOLLOW SCREW HEATING CONNECTION
999
HOLLOW SCREW LINE CONNECTION
999
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
999
FITTING
999
CLAMP BATTERY CABLE MOUNTING
999
CLAMP HOSE TO COOLING WATER PIPE
999
