Mercedes N912004008102 - Кольцо стопорное

207 D/208 D 601.376

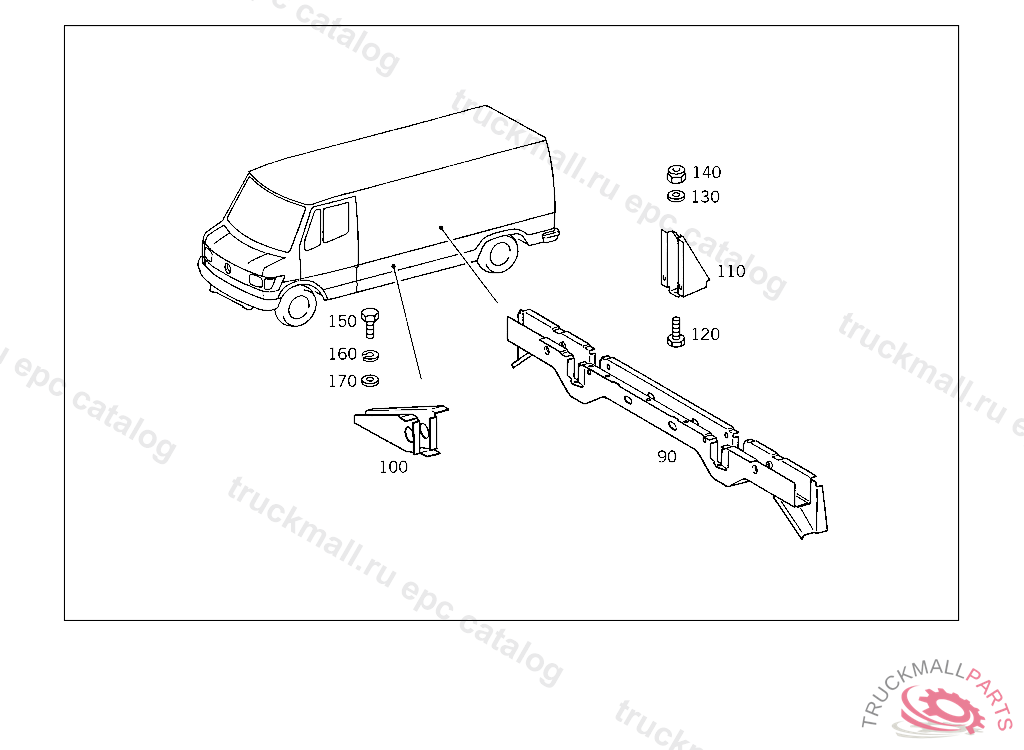

24 ENGINE SUSPENSION - 001 CHASSIS PARTS W/AUTO.TRANSMISSION IL.1

Поз.
Артикул
Описание
90
A6113102537
CROSS MEMBER
90
A6013102937
CROSS MEMBER , Replaced By: A6113102537
100
A6014700781
BRACKET FUEL SYSTEM,691934
110
A6014700281
BRACKET
120
N304017010002
SCREW BRACKET TO SIDE MEMBER
120
N000933010129
SCREW , Replaced By: N304017010002
130
N007349010003
WASHER , Replaced By: N007349010007
130
N007349010007
WASHER STRUT TO CROSS MEMBER
140
N910113010000
NUT STRAP TO BRACKET
140
N913004010008
NUT , Replaced By: N910113010000
150
N304017008033
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
160
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
170
A3129901940
WASHER
