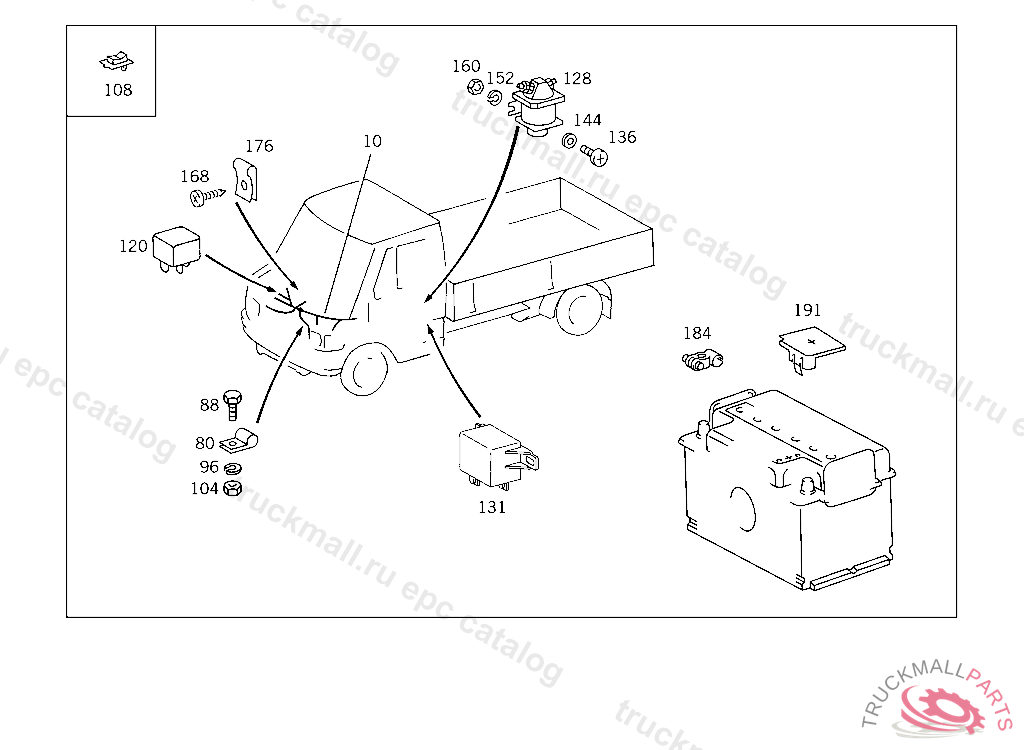

Поз.
Артикул
Описание
10
CABLE HARNESS FROM RELAY TO CONNECTION POINT
10
ELECTRIC CABLE FROM RELAY TO CONNECTION POINT,693538
10
CABLE HARNESS FROM RELAY TO CONNECTION POINT,979896
10
CABLE HARNESS FROM RELAY TO CONNECTION POINT,979896
10
CABLE HARNESS FROM RELAY TO CONNECTION POINT,979895
10
CABLE HARNESS , Replaced By: A6015406110
80
CLAMP , Replaced By: N000000001045
80
CLAMP , Replaced By: N916016010211
80
CLAMP CABLE HARNESS MOUNTING
88
SCREW PUMP TO BRACKET
88
SCREW , Replaced By: N304017006016
96
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
108
BRACKET RUBBER BUFFER TO BRACKET
120
RELAY APPARATUS PLATE 12V 30 A/WEHRLE
120
RELAY BRAKE FLUID CONTROL,BRAKE LINING WEAR INDICATION 12 V 30 A/BOSCH
128
CONTACTOR , Replaced By: A3885457067
128
CONTACTOR
128
CONTACTOR RELAY
131
RELAY (BATTERY CUT-OFF RELAY)
136
SCREW PANELLING TO BUMPER
136
SCREW RELAY
136
SCREW , Replaced By: A2209840429
144
WASHER , Replaced By: N000433005304
144
WASHER BOOT TO CAB FLOOR
152
LOCK WASHER BRACKET TO STEERING COLUMN END
152
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
160
NUT IN CASE OF SUBSEQUENT INSTALLATION
160
NUT , Replaced By: N304032005005
160
NUT SPRING-LOADED PUSH ROD
168
SHEET METAL SCREW , Replaced By: N000000002062
168
SCREW
176
NUT RETAINER
184
CLAMPING PIECE BATTERY
184
CLAMPING PIECE POS. POLE
184
CLAMPING PIECE BATTERY
191
BOOT , Replaced By: A0015460835
999
ELECTRIC CABLE FROM RELAY TO CONNECTION POINT
999
ELECTRIC CABLE FROM RELAY TO CONNECTION POINT,693537
