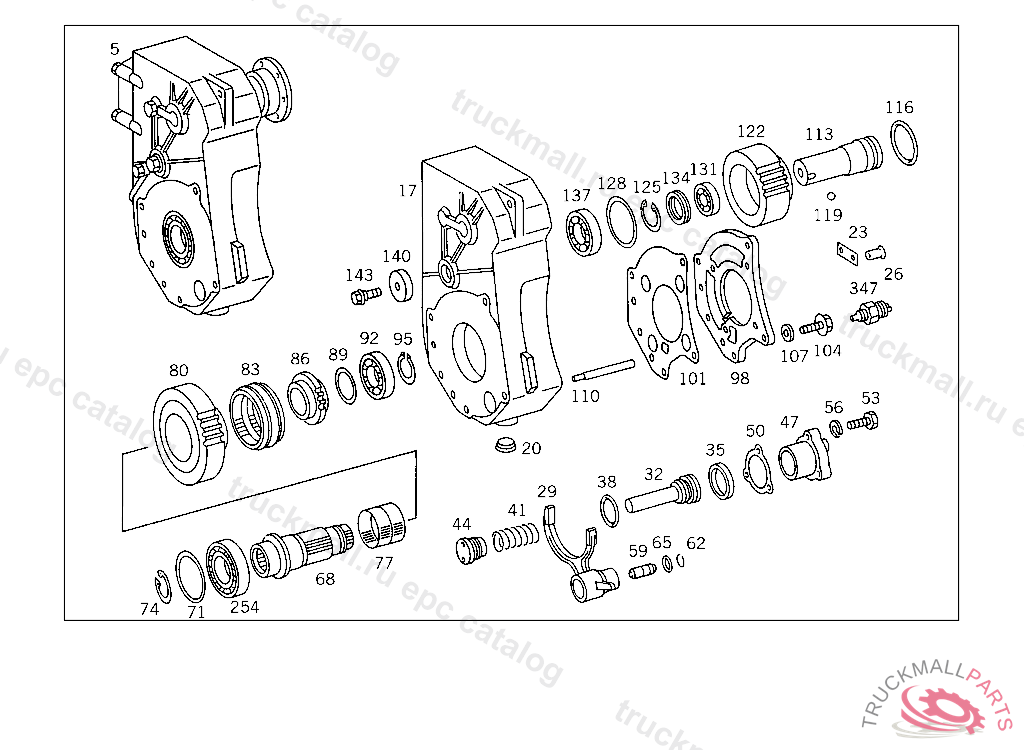

Поз.
Артикул
Описание
5
P.T.O.NA 4/125-10
5
P.T.O.NA 4/125-10
5
P.T.O.NA 4/125-10
17
HOUSING P.T.O.
20
SCREW PLUG HOUSING,BOTTOM,183596
20
SCREW PLUG HOUSING,BOTTOM,183596
23
UNIT IDENTIFICATION PLATE , Replaced By: A4055840624
23
UNIT IDENTIFICATION PLATE P.T.O. HOUSING
26
RIVET , Replaced By: N001476003007
26
GROOVED NAIL3X4,TO 000 431 94 14,000 431 96 14
29
SHIFTING FORK P.T.O. CONTROL
32
PISTON , Replaced By: A9452640515, +001A0002642060
32
PISTON , Replaced By: A9452640215
32
PISTON SHIFTING FORK
35
RING , Replaced By: A0002642060, +001A9452640615
35
SEAL RING FRONT,021425
38
SEAL RING REAR,021425
38
SEAL RING REAR,021425
41
SPRING SHIFTING FORK
44
BUSHING PISTON
47
CYLINDER HOUSING,FRONT,021424
50
GASKET , Replaced By: A3852811180
50
GASKET CYLINDER TO P.T.O. HOUSING
53
SCREW BRACKET TO CROSS CONNECTION STRUT
53
SCREW , Replaced By: N304017008034
56
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
59
PIN P.T.O. INDICATOR ACTUATION
62
SNAP RING P.T.O. INDICATOR ACTUATION
65
SEAL RING P.T.O. INDICATOR ACTUATION
68
SHAFT ON DRIVE END
71
SPACER WASHER DRIVE SHAFT,AS REQUIRED 0.10 MM
71
SPACER RING BEARING TO DRIVE SHAFT
71
SPACER WASHER DRIVE SHAFT,AS REQUIRED 0.30 MM
71
SPACER WASHER DRIVE SHAFT,AS REQUIRED 0.15 MM
71
SPACER WASHER DRIVE SHAFT,AS REQUIRED 0.05 MM
74
RETAINING RING. LOCK RING DRIVE SHAFT
77
NEEDLE BEARING DRIVE GEAR
77
NEEDLE BEARING DRIVE GEAR
77
NEEDLE BEARING DRIVE GEAR
80
GEAR MAIN SHAFT DRIVE GEAR
83
SLIDING COLLAR DRIVE SHAFT
86
FOLLOWER DRIVE SHAFT
89
SPACER WASHER DRIVE SHAFT,AS REQUIRED 0.20 MM
89
SPACER WASHER DRIVE SHAFT,AS REQUIRED 0.10 MM
92
BALL BEARING DRIVE SHAFT,FRONT
92
BALL BEARING DRIVE SHAFT,FRONT
95
LOCK RING AS REQUIRED 45X2.5 MM
98
COVER CASE,REAR,183597
101
GASKET , Replaced By: A3872614880
101
GASKET , Replaced By: A3872613880
104
SCREW COVER TO P.T.O.
107
WASHER RADIATOR TO RUBBER MOUNTING
107
WASHER , Replaced By: N000125010532
110
OIL PIPE COVER TO P.T.O. CASE
113
SHAFT INTERMEDIATE GEAR
116
SEAL RING , Replaced By: A0179977148
116
SEAL RING SHAFT TO TRANSMISSION CASE
119
BALL P.T.O. SHAFT
122
GEAR P.T.O. INTERMEDIATE GEAR
125
RETAINING RING. LOCK RING BEARING TO DRIVE SHAFT
128
FITTED WASHER DRIVE SHAFT,AS REQUIRED 0.30 MM
128
FITTED WASHER AS REQUIRED 0.10 MM
128
SPACER WASHER P.T.O. HOUSING, AS REQUIRED 0.15 MM
128
FITTED WASHER AS REQUIRED 0.50 MM
128
SPACER RING DRIVE SHAFT,REAR
131
TAPERED ROLLER BEARING DRIVE SHAFT,REAR
131
TAPERED ROLLER BEARING DRIVE SHAFT,REAR
131
TAPERED ROLLER BEARING DRIVE SHAFT,REAR
131
TAPERED ROLLER BEARING DRIVE SHAFT,REAR
134
SPACER RING DRIVE SHAFT,REAR
137
TAPERED ROLLER BEARING DRIVE SHAFT,REAR
137
TAPERED ROLLER BEARING , Replaced By: A0169813505
137
TAPERED ROLLER BEARING DRIVE SHAFT,REAR
137
TAPERED ROLLER BEARING DRIVE SHAFT,REAR
140
COVER SHAFT TO TRANSMISSION CASE
143
SCREW FLANGE TO SHAFT
254
CYLINDR. ROLLER BEARING DRIVE SHAFT,FRONT
254
CYLINDR. ROLLER BEARING DRIVE SHAFT,FRONT
254
CYLINDR. ROLLER BEARING DRIVE SHAFT,FRONT
347
SWITCH
347
SWITCH
347
SWITCH , Replaced By: A0015455709
999
INTERMEDIATE SHAFT ,044719 THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3872640505, +001A3892600590
999
SEAL RING THRU HOLE
