Mercedes N910002004129 - Клипса

E 400 BLUE EFFICIENCY 207.461

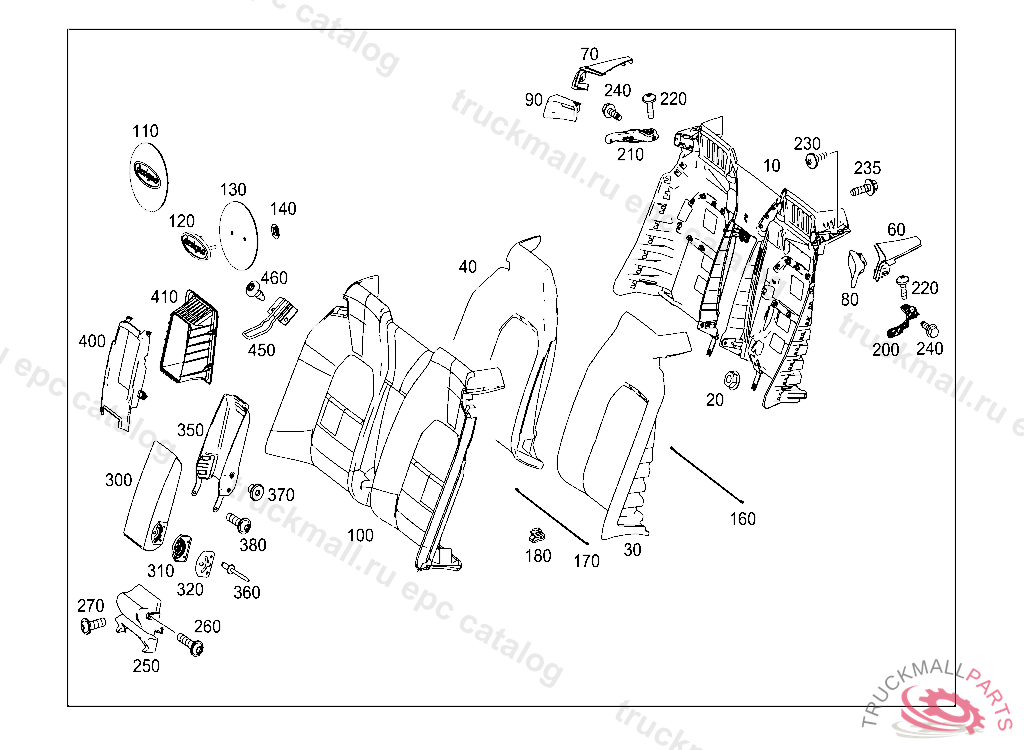

92 REAR SEAT BENCH - 020 REAR BACKREST

Поз.
Артикул
Описание
10
A2079200026
FRAME PART
20
N910112006001
NUT , Replaced By: N913023006001
30
A2079200316
REST LEFT
30
A2079200516
REST LEFT
40
A2079200616
REST RIGHT
40
A2079200416
REST RIGHT
60
A2079240137
COVER LEFT SEAT BELT GUIDE
70
A2079240237
COVER RIGHT SEAT BELT GUIDE
80
A2079240159
ESCUTCHEON LEFT SEAT BELT GUIDE
90
A2079240259
ESCUTCHEON RIGHT SEAT BELT GUIDE
100
A2079203801
COVER REAR SEAT BACKREST , F 20130121 8S73 274A QFT207A2220 ESPRESSO BROWN
100
A2079208900
COVER REAR SEAT BACKREST , 8R01 874A QFT207A2093 ESPRESSO BROWN
100
A2079208401
COVER REAR SEAT BACKREST , 9E43 231A QFT207A2041 BLACK
100
A2079206800
COVER REAR SEAT BACKREST
100
A2079207000
COVER REAR SEAT BACKREST
100
A2079201501
COVER REAR SEAT BACKREST , 9D88 121A QFT207A2016 BLACK
100
A2079209000
COVER REAR SEAT BACKREST , 8R01 874A QFT207A2093 ESPRESSO BROWN
100
A2079206901
COVER REAR SEAT BACKREST , 9D88 741A QFT207A2040 BLACK
100
A2079206600
COVER REAR SEAT BACKREST
100
A2079206900
COVER REAR SEAT BACKREST
100
A2079201200
COVER REAR SEAT BACKREST
100
A2079208800
COVER REAR SEAT BACKREST , 8R01 874A QFT207A2093 ESPRESSO BROWN
100
A2079202501
COVER REAR SEAT BACKREST
100
A2079208301
COVER REAR SEAT BACKREST , 9E43 231A QFT207A2041 BLACK
100
A2079208700
COVER REAR SEAT BACKREST , 8R01 874A QFT207A2093 ESPRESSO BROWN
100
A2079201100
COVER REAR SEAT BACKREST
100
A2079201601
COVER REAR SEAT BACKREST , 9D88 121A QFT207A2016 BLACK
100
A2079202601
COVER REAR SEAT BACKREST
100
A2079207001
COVER REAR SEAT BACKREST , 9D88 741A QFT207A2040 BLACK
100
A2079204001
COVER REAR SEAT BACKREST , F 20130121 8S73 274A QFT207A2220 ESPRESSO BROWN
110
A2218100269
PLATE DESIGNO, 7K71QFT204A2185 CHROME
130
A2219120014
BRACKET
140
N912010006000
LOCK PLATE BRACKET MOUNTING
160
A2019240729
BRACKET SEAT COVER MOUNTING,LONGITUDINAL, USED WITH LEATHER TRIM
170
A1239242329
BRACKET SEAT COVER MOUNTING,TRANSVERSE
180
A1409883778
CLIP
200
A2079290131
CONSOLE REAR BACKREST MOUNTING LEFT
210
A2079290231
CONSOLE REAR BACKREST MOUNTING RIGHT
220
N000000003894
HEXALOBULAR BOLT BUMPER COVERING M6X20
230
N000000003894
HEXALOBULAR BOLT BUMPER COVERING M6X20
235
N910143006002
HEXALOBULAR BOLT. SCREW
240
N910143006002
HEXALOBULAR BOLT. SCREW
250
A2079205330
REAR SEAT BACKREST CENTRAL BOTTOM
250
A2079200186
COVER CENTRAL BOTTOM
260
A0019845829
HEXALOBULAR BOLT SWITCH TO INSTRUMENT PANEL M4X16
270
A0019846429
SCREW W COLLAR A DRIVEM5X35
300
A2079700530
FOLDING ARMREST
310
A2099730020
BEARING FOR ARMREST, INNER
320
A2099730120
BEARING FOR ARMREST, OUTER
350
A2078400025
COVER SKI-BAG
360
N910002004129
RIVET REFLECTOR TO BRACKET
370
A2039900410
BOLT ARMREST M8X8
380
A0019846429
SCREW W COLLAR A DRIVEM5X35
400
A2079200386
COVER FRONT
410
A2079204501
COVER, THROUGH-LOADING REAR
410
A2079230222
COVER REAR
450
A2078400049
RETAINING CLIP
460
A0019844329
BOLT. SCREW CAN NEUTRAL POINT ON EQUIPMENT PLATE M 6X15/10
