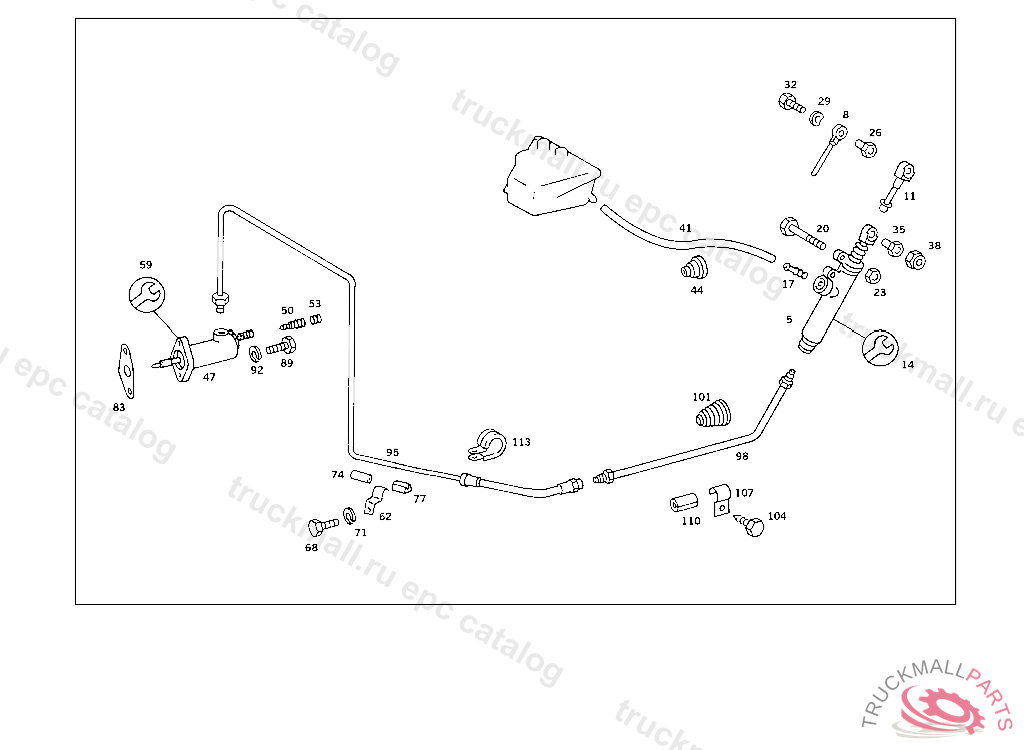

Поз.
Артикул
Описание
5
MASTER CYLINDER , 000,003,007,102,103,105,200 A 091118 083,086,093,183,190,193,280,283 F 015866, Replaced By: A0012954406, +001A0002950833
5
MASTER CYLINDER , 000,003,007,102,103,105,200 A 091119 083,086,093,183,190,193,280,283 F 015867
8
ROD CLUTCH MASTER CYLINDER,5 366603
11
ROD ,A 049605
14
REPAIR KIT MASTER CYLINDER, 000,003,007,102,103,105,200 A 091118 083,086,093,183,190,193,280,283 F 015866
14
REPAIR KIT MASTER CYLINDER, 000,003,007,102,103,105,200 A 091119 083,086,093,183,190,193,280,283 F 015867
17
INTERMEDIATE PIECE
20
SCREW CONNECTOR
23
NUT CYLINDER TO BRACKET TO0002902112
23
NUT BATTERY MOUNTING
26
NUTTO 126 290 01 39
29
SPRING WASHER , Replaced By: N000137008212
29
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
32
SCREW BRACKET TO CROSS CONNECTION STRUT
32
SCREW , Replaced By: N304017008034
35
BUSHING PISTON ROD TO CLUTCH PEDAL
38
NUT BRACKET TO BATTERY/APPARATUS SUPPORT,5 579088
41
HOSE FROM RESERVOIR TO MASTER CYLINDER 330 MM
44
BOOT
47
SLAVE CYLINDERTEVES
47
SLAVE CYLINDER , Replaced By: A0002956507
47
SLAVE CYLINDER , Replaced By: A0012956807
50
BLEEDER VALVE
53
PROTECTIVE CAP ,5 962906
53
PROTECTIVE CAP , Replaced By: A0004217187
59
REPAIR KIT , Replaced By: A0002902111
59
REPAIR KIT , Replaced By: A0002902867
59
REPAIR KIT , Replaced By: A0002900611
59
REPAIR KIT SLAVE CYLINDER TO 2012900311,0002958207
59
SLAVE CYLINDER SLAVE CYLINDER TO 000 295 65 07,001 295 30 07,
62
BRACKET
68
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
68
SCREW , Replaced By: N304017008016
71
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
74
HOSE30 MM, ORDER BY THE METER
77
BUSHING
83
GASKET
89
SCREW , Replaced By: N304017008027
89
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
92
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
95
PIPE FROM CLUTCH HOSE TO SLAVE CYLINDER
95
PIPE , Replaced By: A4602950113
95
PIPE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER
98
LINE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER
98
LINE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER, TO BE ADAPTED DURING ASSEMBLY
98
LINE , Replaced By: A1003204153
98
LINE , Replaced By: A1262900813
98
LINE , Replaced By: A1262900713
98
LINE , EXHAUST STOCK OF OLD PARTS UP TO CHASSIS: 021 006237 022,023 021380, Replaced By: A1262900313
98
LINE , EXHAUST STOCK OF OLD PARTS UP TO CHASSIS: 021 006237 022,023 021380, Replaced By: A1262900213
101
BOOT FROM CLUTCH MASTER CYLINDER LINE TO SLAVE CYLINDER
104
SCREW
107
CLAMP
110
HOSE30 MM, ORDER BY THE METER
113
CLAMP SENSOR CABLE TO BRACKET
113
CLAMP HYDRAULIC LINE TO SIDE MEMBER,RB012797
999
BOOT
999
BOOT KUGELFISCHER
999
LOCK
999
LOCK
