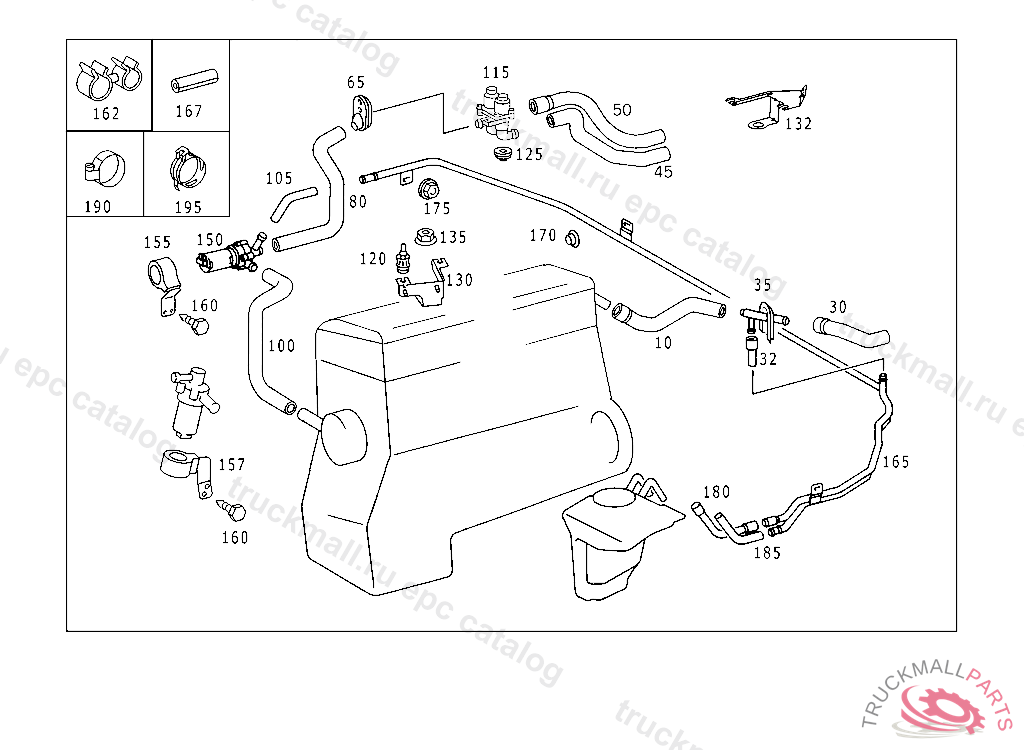

Поз.
Артикул
Описание
10
HOSE FROM ENGINE TO CONNECTING TUBE
30
HOSE FROM CONNECTING TUBE TO HEAT EXCHANGER
30
HOSE FROM CONNECTING TUBE TO HEAT EXCHANGER
32
HOSE FEED, HEATED WINDSHIELD WASHER 54 MM,B 655335 TO BE ADAPTED DURING ASSEMBLY
35
PIPE LINE FEED THRU PARTITION PANEL
35
PIPE LINE FEED THRU PARTITION PANEL
35
PIPE LINE FEED THRU PARTITION PANEL
35
PIPE LINE FEED THRU PARTITION PANEL
45
HOSE FROM HEAT EXCHANGER TO WATER VALVE
45
HOSE FROM HEAT EXCHANGER TO WATER VALVE
50
HOSE FROM HEAT EXCHANGER TO WATER VALVE
50
HOSE FROM HEAT EXCHANGER TO WATER VALVE
65
GROMMET HOSE THRU ENGINE COMPARTMENT PARTITION PANEL
80
HOSE FROM WATER VALVE TO RECIRCULATING PUMP, ONLY FOR USE WITH AIR CONDITIONER,OR AUTOMATIC AIR CONDITIONER,OR IN LOW-TEMPERATURE COUNTRIES
80
HOSE FROM WATER VALVE TO RECIRCULATING PUMP
100
HOSE FROM RECIRCULATING PUMP TO ENGINE
105
HOSE RETURN, PANE WASHER WATER HEATING
105
HOSE RETURN, PANE WASHER WATER HEATING
115
VALVE (DOUBLE WATER VALVE),ELECTROMAGNETIC
115
VALVE (DOUBLE WATER VALVE),ELECTROMAGNETIC
120
RUBBER BUFFER BETWEEN BRACKET AND DOUBLE WATER VALVE
125
RUBBER BUFFER WATER VALVE TO BRACKET
130
BRACKET FOR DOUBLE WATER VALVE,ON FIRE WALL
132
BRACKET WATER VALVE TO HYDROPNEUMATIC SPRING LEG DOME
135
NUT WINDOW REGULATOR TO REAR DOOR
150
RECIRCULATING PUMP , ONLY USED WITH HEATED PANE WASHER CODE 875
150
RECIRCULATING PUMP"SWF",5/91
155
BRACKET CIRCULATION PUMP, ONLY FOR USE WITH AIR CONDITIONER,OR AUTOMATIC AIR CONDITIONER,OR IN LOW-TEMPERATURE COUNTRIES
160
COMBINATION BOLT BRACKET TO FRAME
165
PIPE LINE FEED & RETURN LINES
165
PIPE LINE FEED & RETURN LINES
167
HOSE4.5X10X900MM
170
FASTENER BUTTON INSULATION TO PARTITION PANEL,RIGHT
175
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
180
HOSE , Replaced By: A2028323794
180
HOSE FEED, PANE WASHER WATER HEATING
185
HOSE RETURN, PANE WASHER WATER HEATING
190
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
190
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
190
HOSE CLAMP LINE MOUNTING
190
CLAMP , Replaced By: N000000000667
195
CLAMP15 MM
195
CLAMP25 MM
195
LOOM TIE. CLAMP16 MM
195
CLAMP27 MM
195
CLAMP14 MM
