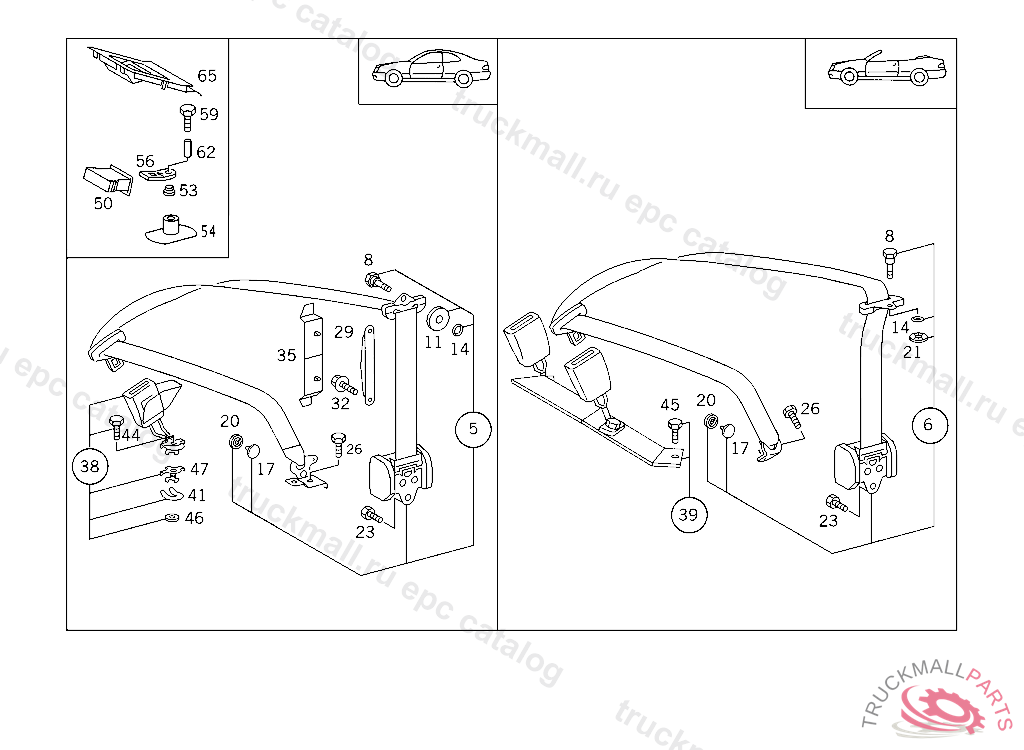

Mercedes A1409840033 - Болт

CLK 430 USA 208.470
92 REAR SEAT BENCH - 150 REAR SEAT SAFETY BELT
  • Поз.
    Артикул
    Описание
  • 6
    SAFETY BELT , F 129678 T 028295 EXCEPT CODE 800 ALSO INSTALLED IN VEHICLE FROM F 129679, T 028296 WITH CODE 809 NO.9A86 INO.9A86 INO.5B74 INO.9A86 INO.8G75 INO.9A86 INO.9A86 INO.9A86 INO.7D50 I
  • 8
    SCREW GUIDE BRACKET,B 688751
  • 14
    SEAL RING BELT LOCK TO FRONT SEAT
  • 17
    STOP UPPER PART
  • 20
    STOP LOWER PART
  • 21
    LOCK GUIDE BRACKET
  • 23
    SCREW SAFETY BELT TO SIDE MEMBER
  • 26
    SCREW SAFETY BELT TO SIDE MEMBER
  • 39
    FASTENER DOUBLE
  • 45
    SCREW BELT END FITTING
  • 56
    BRACKET , ONLY FOR AUSTRALIA CODE 625
  • 59
    SCREW , ONLY FOR AUSTRALIA CODE 625
