Главная
›
Mercedes
›
TRANSMISSION
›
ZF 6 HP 502 C
›
721.133
›
27 ZF-ECOMAT AUTOMATIC TRANSMISSION
›

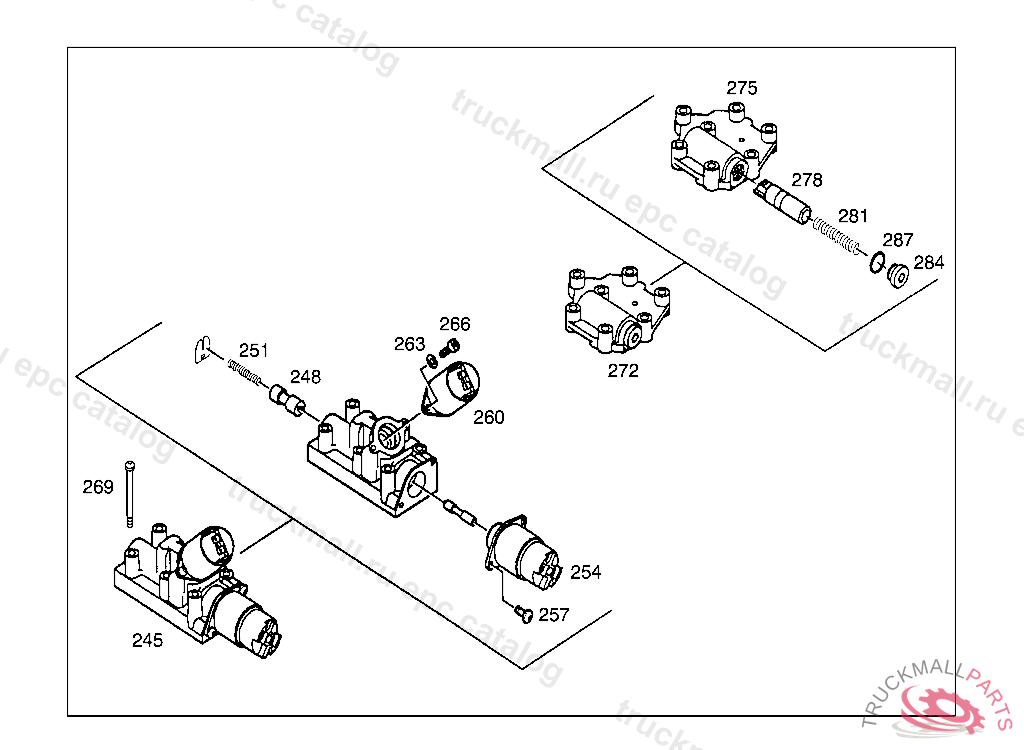

500 CENTRAL VALVE BODY ASSEMBLY AND ATTACHMENT PARTS IL. 4
Mercedes A0089931901 - Пружина
ZF 6 HP 502 C 721.133
27 ZF-ECOMAT AUTOMATIC TRANSMISSION - 500 CENTRAL VALVE BODY ASSEMBLY AND ATTACHMENT PARTS IL. 4
Поз.
Артикул
Описание
245
A0002777035
VALVE (THROTTLE VALVE)
248
A0002778331
PISTON
251
A0089930101
SPRING
251
A0089931901
SPRING VALVE,052255
251
A0079931001
SPRING , Replaced By: A0089930101
254
A0002772398
LIFTING MAGNET
257
A0039901012
SCREW SOLENOID VALVE TO VALVE M 5X12
260
A0002777735
VALVE (SOLENOID VALVE)
263
N000433005304
WASHER BOOT TO CAB FLOOR
266
N000000002035
SCREW. HEXALOBULAR BOLT COVER TO MOUNTING FRAME M5X12
266
N304017005007
SCREW MOUNTING PARTS M 5X12, Replaced By: N000000002035
269
A0039901112
SCREW VALVE TO VALVE M 6X80
269
A0039900812
SCREW PLATE TO VALVE M 6X65
272
A0002771536
VALVE PART
275
A0002770801
VALVE BODY ASSEMBLY VALVE HOUSING
278
A0002778331
PISTON
281
A0089930101
SPRING
281
A0089931901
SPRING VALVE,052255
281
A0079931001
SPRING , Replaced By: A0089930101
284
N000908016008
SCREW PLUG
287
N007603016105
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
999
A0002700482
BREATHER
999
A0002760017
SENDER UNIT
