Mercedes N000094004051 - ШПЛИНТ КРЕПЛЕНИЯ ЦИЛИНДРА

VL 3/6 D-4,1 730.059

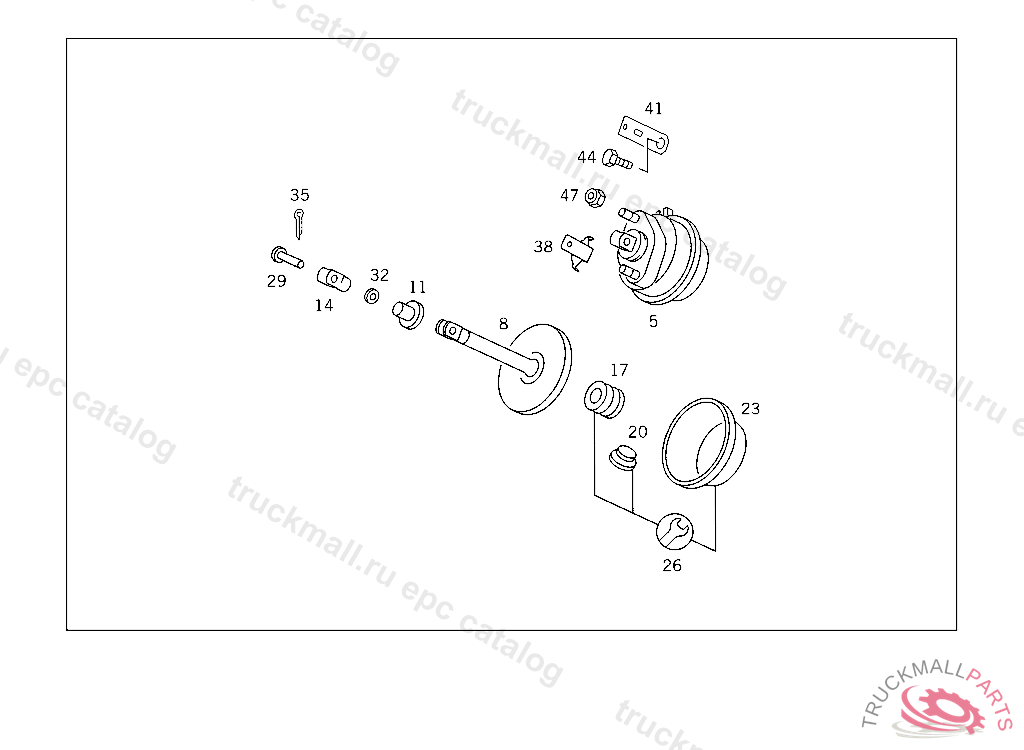

42 FRONT WHEEL BRAKE - 220 BRAKE CYLINDER,ATTACHMENT PARTS IL. 1

Поз.
Артикул
Описание
5
A0014205924
BRAKE CYLINDERBOSCH
5
A0014201724
BRAKE CYLINDERKNORR
5
A0074202518
BRAKE CYLINDERWABCO
17
A0004213886
CUPTO 007 420 68 18,WABCO
20
A0004210011
PLUGTO 694 420 71 18/72 18
23
A0004311728
DIAPHRAGMWABCO
29
N001444014216
PIN WHEEL CYLINDER TO SLACK ADJUSTER
29
A3619910005
PIN COMBINATION CYLINDER TO SLACK ADJUSTER
29
N001444014209
PIN , Replaced By: A3619910005
32
N000433015005
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
35
N000094004051
COTTER PIN STRAP TO SUPPORT
38
A3874291340
BRACKET LINE TO REAR AXLE, NOT USED
47
N910113016002
NUT COMBINATION CYLINDER TO BEARING BRACKET
47
N913004016004
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
