Поз.
Артикул
Описание

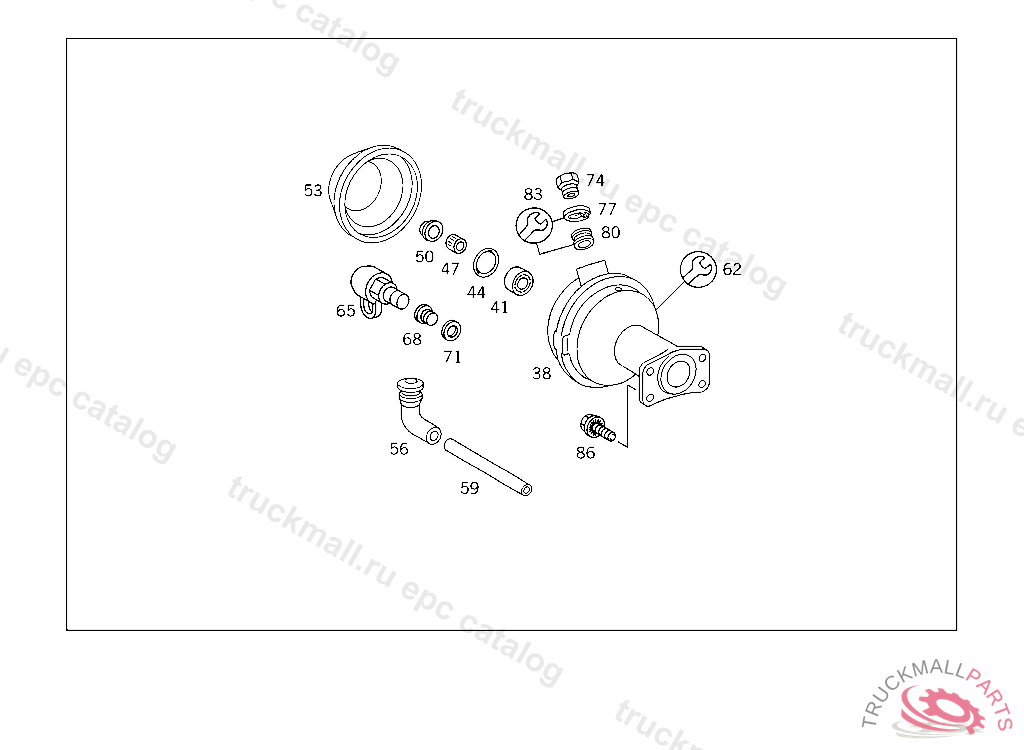

38
BRAKE CYLINDER (DIAPHRAGM CYLINDER) KNORR
38
BRAKE CYLINDER (DIAPHRAGM CYLINDER) WABCO
38
BRAKE CYLINDER (DIAPHRAGM CYLINDER) BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
38
BRAKE CYLINDER , Replaced By: A0034202724
41
GUIDETO 673 420 11 24
44
SEAL RINGBOSCH
47
SPACER DIAPHRAGM CYLINDER,REAR TO 673 420 11 24
50
CUP DIAPHRAGM CYLINDER,REAR TO 673 420 11 24
53
DIAPHRAGMTO 008 420 95 18,008 420 97 18,BOSCH
53
DIAPHRAGMTO 007 420 65 18, 012 420 00 18, WABCO
53
DIAPHRAGMBOSCH, Replaced By: A0004314028
56
ELBOW FITTING BLEEDING
56
PIPE SOCKETWABCO
59
BREATHER PIPE , Replaced By: A0089979082
59
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
62
REPAIR KITKNORR
65
TEST CONNECTION SHUTTLE VALVE,CONNECTION: "2"
65
TEST CONNECTION SHUTTLE VALVE,CONNECTION: "2"
68
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
71
SEAL RING LINE CONNECTION
74
SCREW. UNION SCREW LINE CONNECTION
77
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
80
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
83
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
86
SCREW DIAPHRAGM CYLINDER TO BRAKE ANCHOR
86
SCREW RELEASE LEVER TO BELL HOUSING M 10X45, SERRATED BOLT
86
SCREW , Replaced By: A6529902504
