Поз.
Артикул
Описание

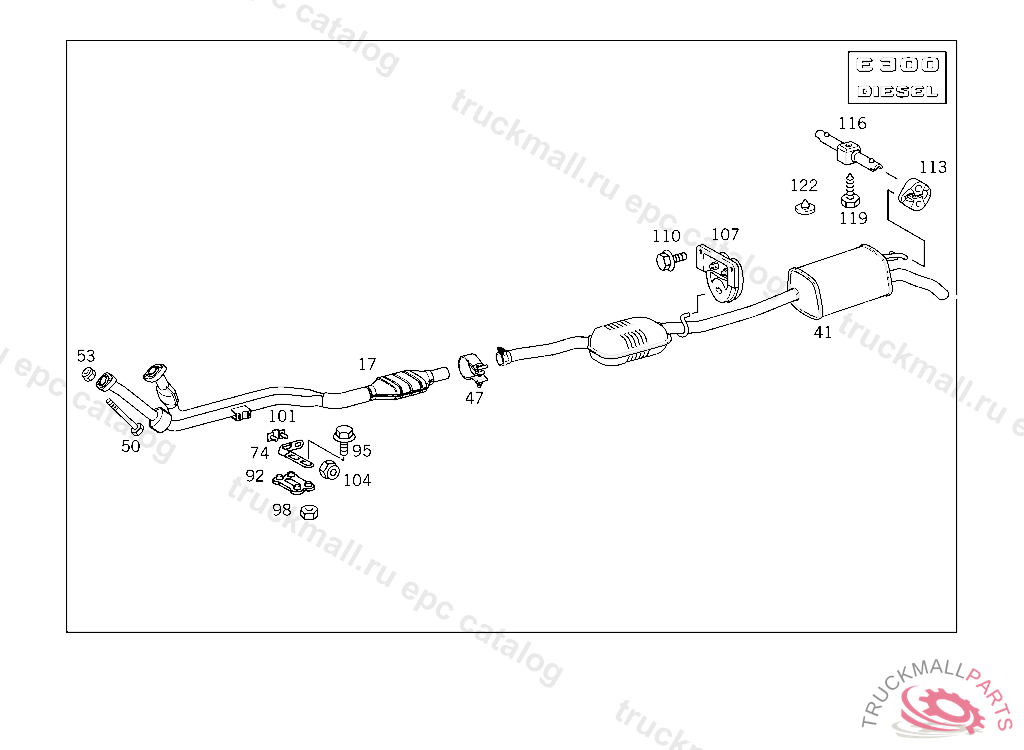

17
EXHAUST PIPE FRONT
41
EXHAUST PIPE CENTRAL AND REAR
47
CLAMP , Replaced By: A2024900941
47
CLAMP FRONT EXHAUST PIPE TO REAR EXHAUST PIPE
50
SCREW , Replaced By: N304017008053
50
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
53
NUT POWER CYLINDER TO BRACKET
53
NUT , Replaced By: A0009903250
74
BRACKET FRONT EXHAUST PIPE TO TRANSMISSION
74
BRACKET FRONT EXHAUST PIPE TO TRANSMISSION
92
RUBBER PAD FRONT EXHAUST PIPE TO TRANSMISSION, FROM MODEL YEAR '96
95
COMBINATION BOLT , Replaced By: N304017008033
95
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
98
NUT
98
NUT , Replaced By: N304032008006
101
PLATE BRACKET TO MOUNTING PLATE OR TO TRANSMISSION
104
COLLAR NUT F SHAFT FRONT EXHAUST PIPE TO TRANSMISSION
107
BRACKET CENTRAL MUFFLER SUSPENSION
110
COMBINATION BOLT BRACKET TO EXHAUST MUFFLER
113
SUSPENSION RING REAR MUFFLER SUSPENSION
116
BRACKET REAR MUFFLER SUSPENSION
119
COMBINATION BOLT , Replaced By: N304017008021, +001N000125008443
119
SCREW PIPE CLAMP
122
BUFFER , Replaced By: A2104920487
122
BUFFER , Replaced By: A2104920487
122
BUFFER , Replaced By: A2104920587
122
BUFFER REAR MUFFLER SUSPENSION
