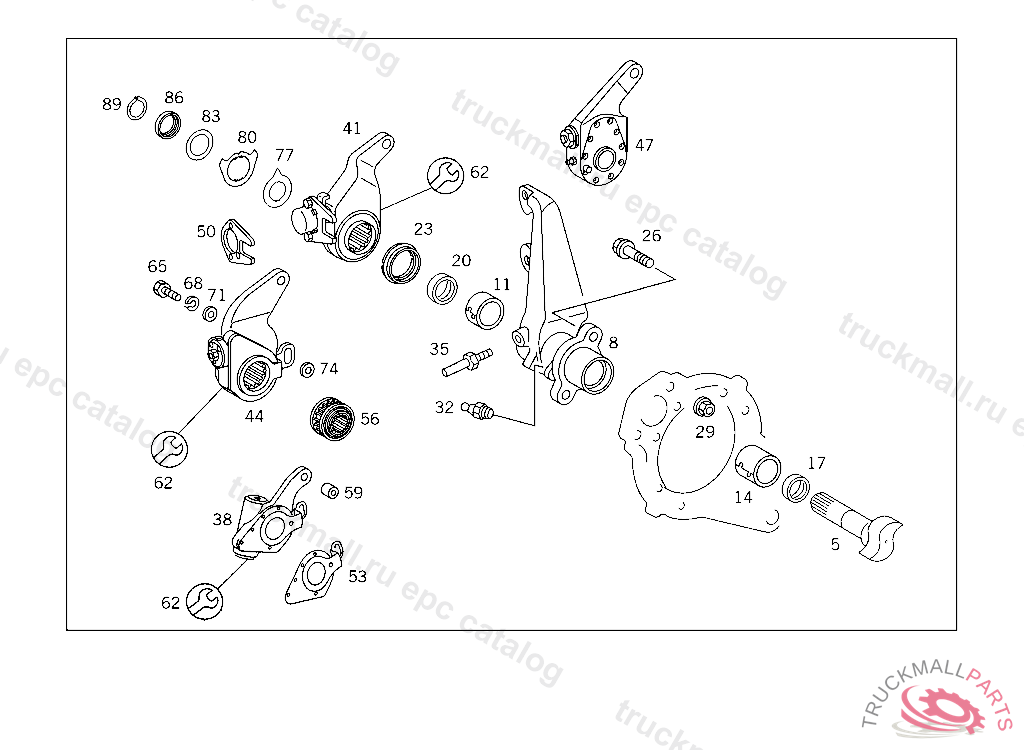

Поз.
Артикул
Описание
5
BRAKE CAMSHAFT WITH LUBRICATING BORE,LEFT
5
BRAKE CAMSHAFT WITH LUBRICATING BORE,RIGHT
5
BRAKE CAMSHAFT , Replaced By: A6234210636
5
BRAKE CAMSHAFT , Replaced By: A6234210536
8
BEARING BRACKET LEFT BRAKE CAMSHAFT VD4/VL4, Replaced By: A6234210106, +001A3054210750, +001A6584210150, +001A0039970547, +001A0129973747
8
BEARING BRACKET LEFT BRAKE CAMSHAFT NR4/NS4, Replaced By: A6234210006, +001A3054210750, +001A6584210150, +001A0039970547, +001A0129973747
8
BRAKE ANCHOR LEFT BRAKE CAMSHAFT VD4/VL4
8
BRAKE ANCHOR RIGHT BRAKE CAMSHAFT VD4/VL4
11
BUSHING OUTSIDE
14
BUSHING INSIDE
17
SEAL RING INSIDE BEARING BRACKET
17
SEAL RING INSIDE BEARING BRACKET
17
SEAL RING INSIDE BEARING BRACKET
17
SEAL RING , Replaced By: A0129974147
17
SEAL RING , Replaced By: A0149972247
20
SEAL RING OUTSIDE BEARING BRACKET
20
SEAL RING OUTSIDE BEARING BRACKET
20
SEAL RING OUTSIDE BEARING BRACKET
20
SEAL RING , Replaced By: A0129973647
20
SEAL RING , Replaced By: A0129973747
23
SPACER WASHER ADJUSTER TO BRAKE CAMSHAFT
26
SCREW REAR WHEEL BRAKE TO REAR AXLE
26
SCREW BEARING BRACKET TO BRAKE ANCHOR M16X142
29
NUT , Replaced By: A0009905750
29
NUT BEARING BRACKET TO BRAKE ANCHOR
32
GREASE NIPPLE
35
PIN ADJUSTER STOP
38
ADJUSTER AUTOMATIC,LEFT
41
ADJUSTER AUTOMATIC,LEFT
41
ADJUSTER , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3934200038
41
ADJUSTER , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3934200038
50
WASHER ADJUSTER
53
CONTROL UNIT
56
WORM GEAR"SAB"
62
REPAIR KIT , Replaced By: A0004200092
62
REPAIR KIT SLACK ADJUSTER "SAB"
65
HEXAGON HEAD BOLT CONTROL ARM, LINKAGE ADJUSTER ON BEARING BRACKET M8X12
68
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
71
WASHER , Replaced By: N000125008443
71
WASHER EXHAUST MUFFLER TO STRAP
74
FITTED WASHER SLACK ADJUSTER TO BEARING BRACKET
74
FITTED WASHER SLACK ADJUSTER TO BEARING BRACKET
77
STOP WASHER SLACK ADJUSTER TO BRAKE SHAFT
83
SPACER WASHER ADJUSTER,AS REQUIRED 1.50 MM
83
SPACER WASHER ADJUSTER,AS REQUIRED 2.50 MM
83
SPACER WASHER ADJUSTER,AS REQUIRED 0.50 MM
83
SPACER WASHER ADJUSTER,AS REQUIRED 2.00 MM
86
SPACER WASHER ADJUSTER TO BRAKE CAMSHAFT
86
SPACER WASHER BRAKE SHAFT TO BEARING BRACKET 4,00MM
89
LOCK RING ADJUSTER TO BRAKE CAMSHAFT
