Mercedes N304017006016 - Винт M 6 X 16 8.8

E 320 210.065 FROM MODEL YEAR CODE 800

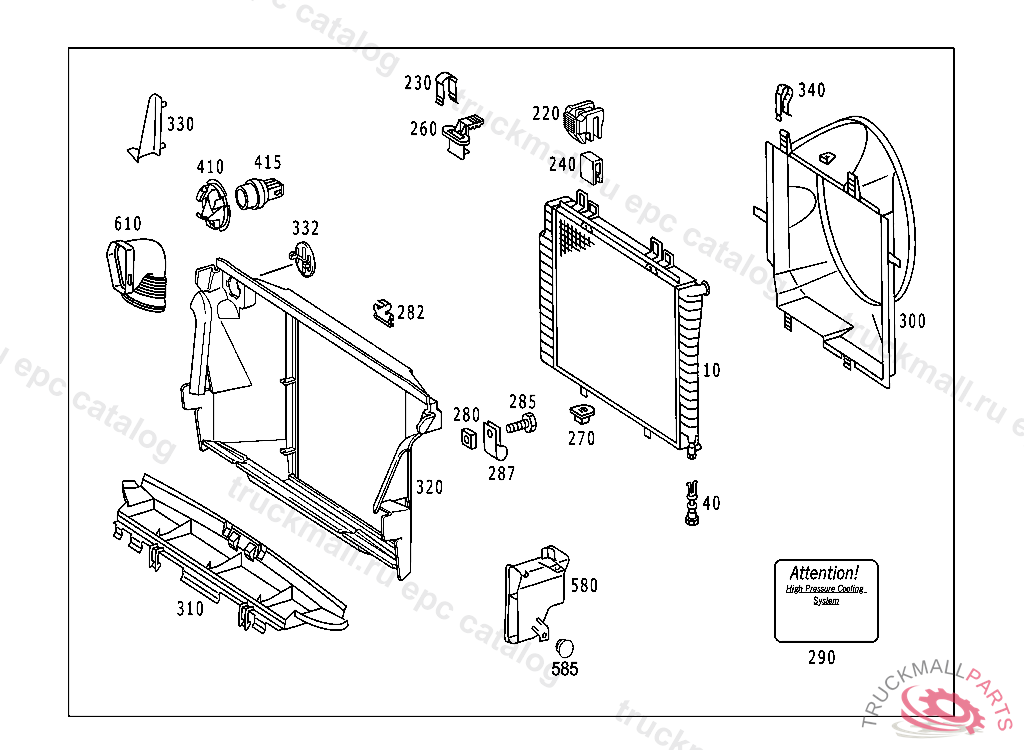

30 CONTROL - 015 CONTROL IL. 2

Поз.
Артикул
Описание
10
A2105007103
RADIATOR
40
A0005000185
SCREW WATER DRAIN
220
A2105040146
CLAMP RADIATOR TO CENTRAL STIFFENING
240
A2105040412
RUBBER MOUNT RADIATOR TO CENTRAL STIFFENING
270
A2105040012
RUBBER MOUNTING RADIATOR TO SUPPORT
280
A1269901152
NUT , F 184896
282
A2105041140
BRACKET ENGINE HOOD RELEASE CABLE TO AIR BAFFLE
285
N304017006016
SCREW PUMP TO BRACKET
287
N000000001045
CLAMP CABLE HARNESS MOUNTING
290
A2105840721
GUIDE SIGN EXPANSION TANK AND RADIATOR,RESP., IN ENGLISH "140", EXPORT,ON SPECIAL REQUEST
310
A2105052130
AIR BAFFLE BETWEEN RADIATOR AND BUMPER
320
A2105000816
AIR BAFFLE
332
A2105050203
COVER
340
A1235040246
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
610
A2105281904
SCOOP
