Mercedes A0125458428 - Корпус разъема

E 320 210.065 FROM MODEL YEAR CODE 800

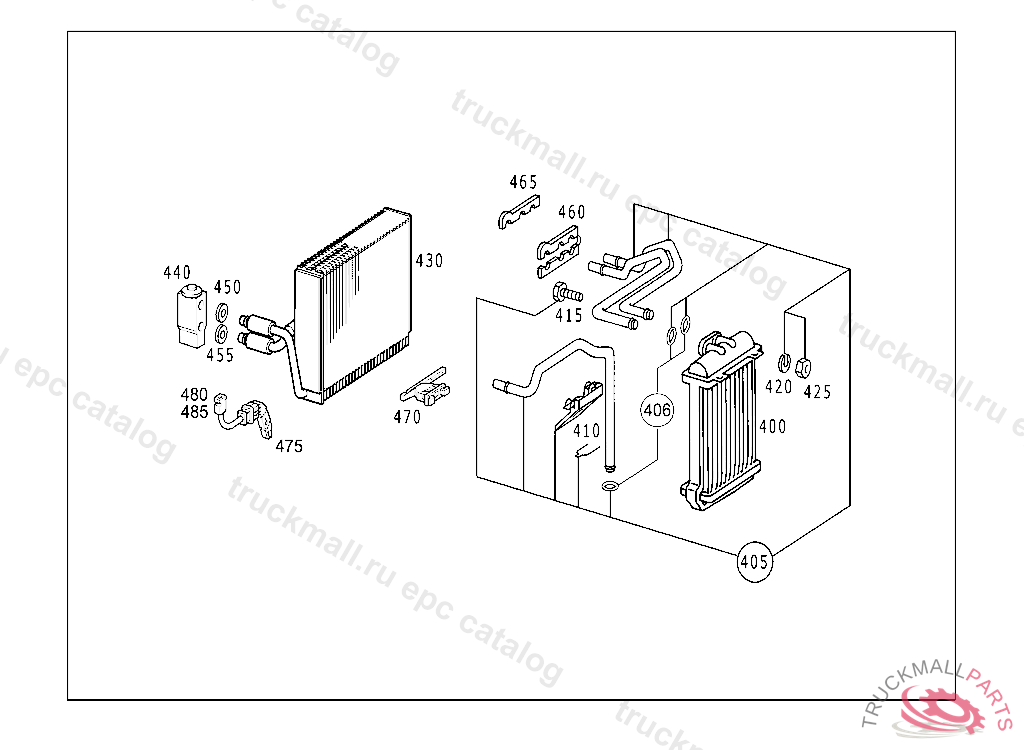

83 HEATING AND VENTILATION - 045 HEATER CASE WITH BLOWER IL. 2

Поз.
Артикул
Описание
400
A2108300661
HEAT EXCHANGER
405
A0018303415
PIPE LINE PARTS KIT
406
A0008357998
SEAL PARTS KIT
410
A1408350034
SPRING HEAT EXCHANGER PIPES
415
N304017005011
SCREW COVER PLATE TO BRACKET
420
N912004005103
LOCK WASHER BRACKET TO STEERING COLUMN END
425
N000562005001
NUT PUMP TO BRACKET
430
A2108301058
EVAPORATOR , A 00384320000110
440
A2108300084
VALVE (EXPANSION VALVE)
440
A2028300184
VALVE (EXPANSION VALVE), A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
450
A1409970745
SEAL RING FROM LIQUID TANK TO T-FITTING
455
A1409970845
SEAL RING HOSE TO CONDENSER 14 MM
460
A2028351498
SEAL
465
A2028351598
SEAL ON RETURN TUBES TO CENTER NOZZLE CONNECTION
470
A2108300472
TEMPERATURE SENSOR HEAT EXCHANGER
475
A2108300772
TEMPERATURE SENSOR EVAPORATOR
475
A2108300572
TEMPERATURE SENSOR EVAPORATOR
480
A0125458428
PLUG HOUSING
485
A0115451628
PLUG PIN
