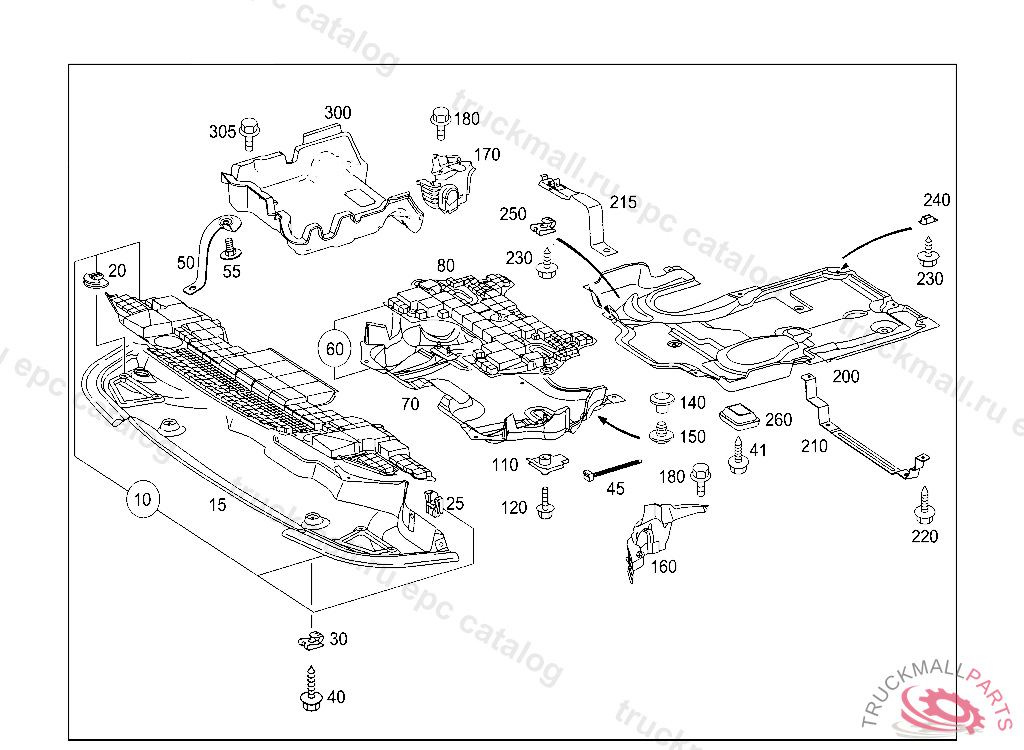

Поз.
Артикул
Описание
10
ANTINOISE CAPSULE FRONT
10
ENCAPSULATION FRONT, B 29418520080109 L 02144420080124 V 00001820080124
15
PANELING ANTINOISE CAPSULE
20
CATCH MAINTENANCE FLAP LEFT
25
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
30
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
40
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
41
HEXALOBULAR BOLT TIME-LAG RELAY M5X12
45
CABLE TIE IONIC EXCHANGER 380X7.8MM
60
ANTINOISE CAPSULE CENTRAL
60
ENCAPSULATION CENTRAL, Replaced By: A2115204323
70
PROTECTIVE PLATE CENTRAL
70
PANELING CENTRAL
80
DAMPING STRIP CENTRAL
110
SPRING-THREAD NUT PROTECTIVE PLATE
120
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
120
SCREW-AND-WASHER ASSEMBLY PANELING MOUNTING, RIGHT M8X30
140
FASTENER BUTTON LOWER PART
150
FASTENER BUTTON UPPER PART
200
ANTINOISE CAPSULE REAR
200
ANTINOISE CAPSULE REAR
210
BRACKET ON FLOOR
215
BRACKET ON FLOOR
230
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
240
LOCK. CLIP-TYPE NUT
250
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
260
EXPANSION PLUG ON TUNNEL 14 X 11 MM
305
SCREW PUMP TO BRACKET
