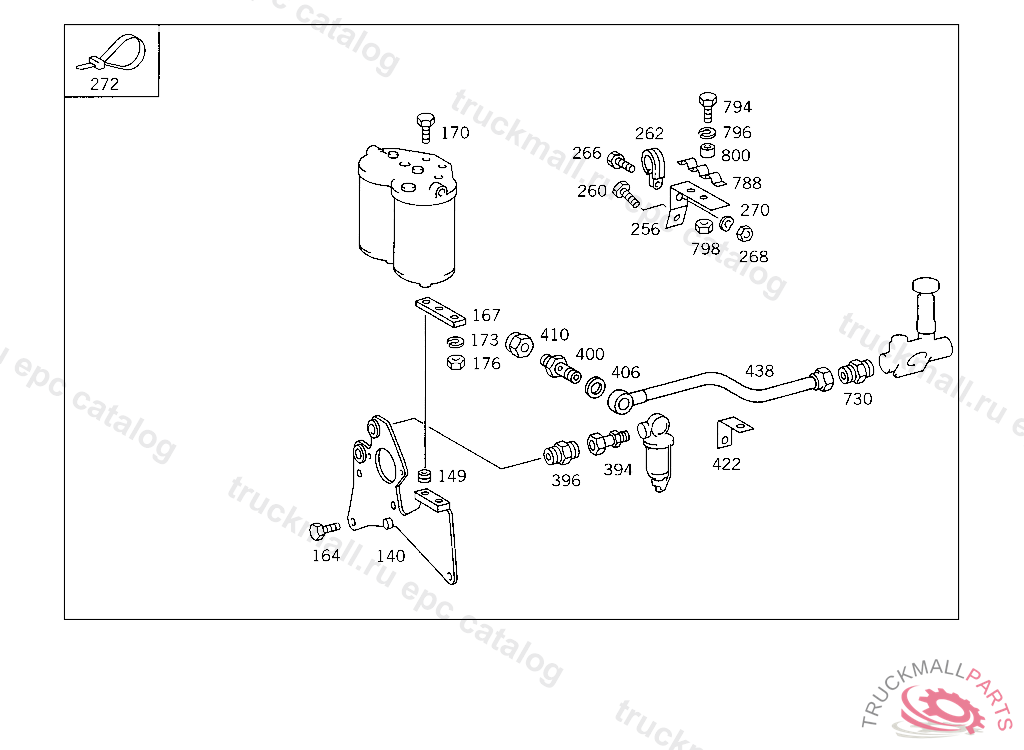

Поз.
Артикул
Описание
140
SUPPORT FUEL FILTER
149
THREADED INSERT DE-AERATION LINE TO COOLING WATER LINE
164
SCREW STRUT TO CROSS MEMBER M 10X25
164
SCREW CLUTCH LINE TO FLYWHEEL HOUSING M16 X 30
167
BRACKET
170
SCREW AIR CLEANER SUPPORT TO SIDE MEMBER, REAR
170
SCREW LEFT AND RIGHT CONSOLES TO CAB
170
SCREW BRACKET WITH FILTER TO SUPPORT
170
HEXAGON HEAD BOLT , Replaced By: A0029902704
173
SPRING WASHER CAB FLOOR
173
LOCK WASHER FITTING TO BRACKET
176
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
256
BRACKET FUEL LINE FIXTURE
260
SCREW BRACKET TO SIDE MEMBER,K 168169
260
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET M 8X95
260
SCREW BRACKET TO ALTERNATOR
262
CLAMP HEATER-PLUG/SOLENOID-VALVE BRANCH-OFFS TO NOZZLE HOLDER,K 092646
262
CLAMP , Replaced By: N916016010211
262
CLAMP , Replaced By: N000000001045
262
CLAMP CABLE HARNESS MOUNTING
262
CLAMP LINE MOUNTING SA 088202/01
266
SCREW PUMP TO BRACKET
266
SCREW LICENSE PLATE TO BRACKET
266
SCREW , Replaced By: N304017006020
266
SCREW , Replaced By: N304017006016
268
NUT SPRING-LOADED PUSH ROD
270
SPRING WASHER , Replaced By: N000137008212
270
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
272
LOOM TIE LINE MOUNTING 280 MM
394
FITTING IN PRE-CLEANER
396
SCREW-IN FITTING LINE CONNECTION TO TRANSMISSION
400
HOLLOW SCREW FITTING LINE CONNECTION
406
SEAL RING INJECTION PUMP
410
NUT TWO-CIRCUIT BRAKE VALVE,CONNECTIONS: "21,22", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
422
ANGLE LINE MOUNTING
438
LINE FROM PREFILTER TO FEED PUMP
730
ADAPTER FITTING HYDRAULIC PUMP, UP TO ENGINE 15000150 WITH PUMP 000 466 59 01
730
SCREW-IN FITTING RETURN LINE TO STEERING
788
CLAMP LINE MOUNTING
794
SCREW COVER PLATE TO COVER PLATE M 6 X 12
794
SCREW , WITH DIESEL ENGINE
794
SCREW PUMP TO BRACKET
794
SCREW CAB FLOOR COVERING M 6X25
794
SCREW , Replaced By: N304017006018
794
SCREW , Replaced By: N304017006016
796
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
796
LOCK WASHER WIRE CABLE TO LEVER
798
NUT SPRING-LOADED PUSH ROD
800
BUSHING FUEL LINE FIXTURE
999
CLAMPING BRACKET FILTER HOUSING TO PUMP
999
SEPARATOR (WATER SEPARATOR)
999
NUT
999
BANJO UNION FUEL LINES AND BREATHING
999
STUD
999
CLAMPING PIECE FUEL FILTER TO BRACKET,012710
999
FITTING RETURN
999
LOOM TIE LINE MOUNTING
999
FITTING FUEL LINE TO HAND PUMP
999
HOLLOW SCREW FUEL LINES TO SOLENOID VALVE
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
999
INTERMEDIATE PIECE AT INJECTION PUMP
999
LINE FROM FUEL DISTRIBUTOR TO FEED PUMP
999
LINE FROM INJECTION PUMP OVERFLOW VALVE TO T-FITTING
999
LINE FROM FUEL FILTER TO INJECTION PUMP
999
LINE FROM FUEL FEED PUMP TO DISTRIBUTOR,062710
999
BRACKET , Replaced By: A4220901241
999
FILTER , Replaced By: A4420900452
999
PLATE LINE MOUNTING,920657
999
LINE
999
HOLLOW SCREW FUEL LINE LEADING TO FUEL PUMP
999
LINE FROM INJECTION PUMP OVERFLOW VALVE TO RETURN CONNECTION, NOT USED
999
LINE FROM FEED PUMP TO FILTER, NOT USED
999
LINE , Replaced By: A4470700432
999
LINE FROM FUEL FILTER TO INJECTION PUMP, NOT USED
999
LINE , Replaced By: A4470700332
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
LOCK WASHER BRACKET TO SUPPORTING ARM
999
NUT , Replaced By: N304032008006
999
WASHER , Replaced By: N007349008007
999
WASHER
999
SEAL RING SCREW PLUG
999
SEAL RINGTO 000 553 03 05,000 553 18 05,
999
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
999
SCREW SUPPORT TO FENDER
999
NUT
999
HEXAGON HEAD BOLT. SCREW BRACKET TO CROSS MEMBER
999
COMBINATION BOLT LEFT & RIGHT CHARGE AIR PIPES TO CYLINDER HEAD M 8X93
999
NUT. UNION NUT RETURN
999
FITTING WATER SEPARATOR
