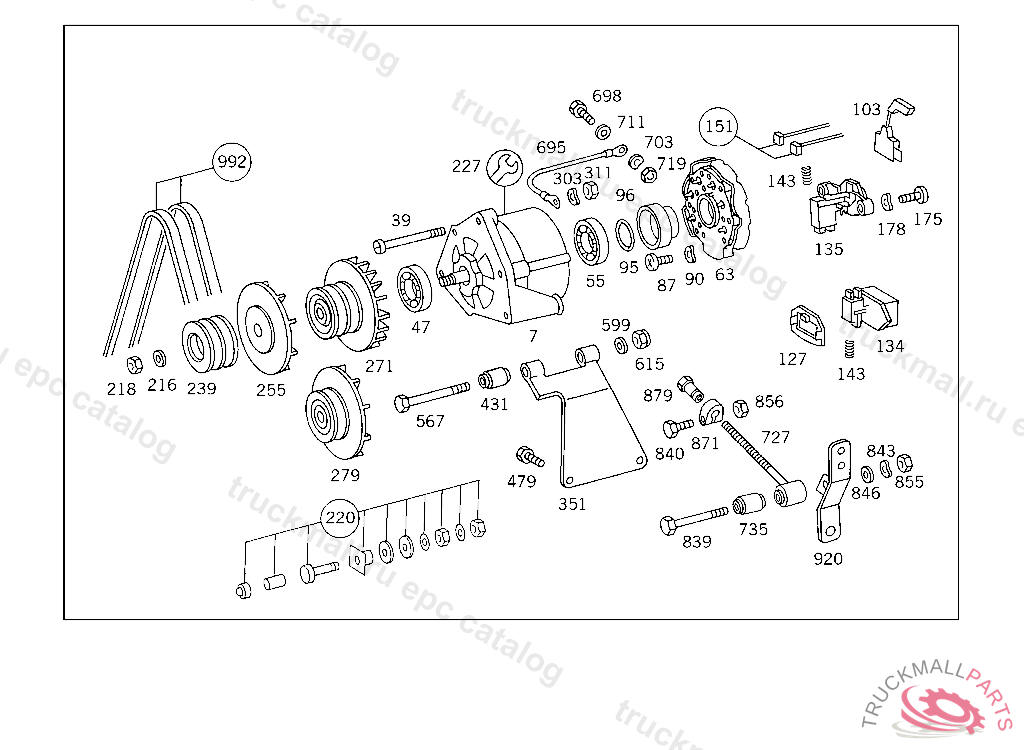

Поз.
Артикул
Описание
7
ALTERNATOR28V 20/65A
7
ALTERNATOR , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
7
ALTERNATOR THREE-PHASE, UP TO IDENT NO. 556499 EXCEPT 543411,543418,551148,551588,551771,552021,552392,552551,552654,552687,552694,552840,552846,553000, 553005,553105,553112,553185,553210,553226,553264,553332,553602,553651,553660,553795,554081,554103, 554107,554213,554266,554270,554333,554993,555186,555885,555902,555992,556045,556120,556138,556143, 556146,556169,556181,556184,556187,556189,556194-556197,556215. PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
7
ALTERNATOR28V 10/80A, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
7
ALTERNATORN1 28V 10/55A, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
7
ALTERNATOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 352 855102 366 072446, Replaced By: A0071548102, +001A0001557118
7
ALTERNATOR , Replaced By: A0071542602
7
ALTERNATOR , Replaced By: A0071542302, +001A0001557118
7
ALTERNATOR , Replaced By: A0071542702
7
ALTERNATOR , Replaced By: A0051548302
7
ALTERNATOR , Replaced By: A0071542402
7
ALTERNATOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 845546, Replaced By: A0071542302
7
ALTERNATOR , Replaced By: A0071542402
7
ALTERNATOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 366 047556, Replaced By: A0071542702
7
ALTERNATOR , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0091540602
7
ALTERNATOR , Replaced By: A0091540702
7
ALTERNATOR , Replaced By: A0071542402
7
ALTERNATOR , Replaced By: A0091541502
7
ALTERNATOR , Replaced By: A0091541502
7
ALTERNATOR WITH REGULATOR INCORPORATED,LESS PULLEY
7
ALTERNATOR14V/65A, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
39
SCREW
39
SCREW
39
SCREWTO 005 154 51 02
39
SCREW , Replaced By: A0009907721
39
SCREW , Replaced By: A0009908221
39
SCREW
39
SCREW , Replaced By: A0019900321
39
SCREW , Replaced By: A0009909721
39
SCREW , Replaced By: A0019900821
39
SCREW , Replaced By: A0009909821
39
SCREW , Replaced By: A0009908321
39
SCREW , Replaced By: A0009907921
39
SCREW , Replaced By: A0009907121
39
SCREW , Replaced By: A0019902120
39
SCREW , Replaced By: A0019902120
39
SCREW , Replaced By: A0009907621
39
SCREW , Replaced By: A0009909621
39
SCREW HOUSING
39
SCREW HOUSING
39
SCREW
39
SCREW
39
SCREWTO 008 154 31 02
39
SCREW
47
BALL BEARINGTO 005 154 32 02
47
GROOVED BALL BEARING DRIVE END BEARING 005 154 45 02/84 02
47
BALL BEARING
47
BALL BEARING , Replaced By: A0059812225
47
BALL BEARING , Replaced By: A0079816625
47
GROOVED BALL BEARING , Replaced By: N000625436303
47
GROOVED BALL BEARING
47
BALL BEARING DRIVE END BEARING TO 008 154 31 02
47
BALL BEARINGTO 007 154 27 02, 009 154 07 02
47
GROOVED BALL BEARING
55
BALL BEARINGTO 007 154 27 02, 009 154 07 02
55
CYLINDR. ROLLER BEARING
55
BALL BEARINGTO 005 154 34 02
55
BALL BEARING , Replaced By: A0059813325
55
BALL BEARING , Replaced By: A0089811225
55
BALL BEARING SLIP RING SIDE
55
BALL BEARING , Replaced By: A0089814625
55
BALL BEARING SLIP RING SIDE TO 007 154 81 02
55
BALL BEARING , Replaced By: A0059819225
55
CYLINDR. ROLLER BEARING SLIP RING SIDE
55
GROOVED BALL BEARING
55
BALL BEARING SLIP RING SIDE TO 008 154 31 02
63
RECTIFIERTO 005 154 45 02,006 154 86 02
63
RECTIFIER
63
RECTIFIERTO 009 154 15 02
63
RECTIFIERTO 007 154 28 02
63
RECTIFIERTO 008 154 31 02
63
RECTIFIERTO 005 154 34 02
63
RECTIFIER , Replaced By: A0001545716
63
RECTIFIER , Replaced By: A0001544616
63
RECTIFIER , Replaced By: A0001544716
63
RECTIFIERTO 005 154 51 02
63
RECTIFIER , Replaced By: A0011541516
63
RECTIFIER , Replaced By: A0001545116
63
RECTIFIER
63
RECTIFIER , Replaced By: A0011541416
63
RECTIFIERTO 366 150 06 50, NOT USED
63
RECTIFIER , Replaced By: A0011541116
63
RECTIFIER , Replaced By: A0011541616
63
RECTIFIER , Replaced By: A0011541316
63
RECTIFIER , Replaced By: A0011542116
63
RECTIFIER , Replaced By: A0011542116
63
RECTIFIERTO 007 154 24 02,009 154 06 02, Replaced By: A0011541316
63
RECTIFIER , Replaced By: A0011542716
63
RECTIFIER , Replaced By: A0011542116
63
RECTIFIER
63
RECTIFIERTO 009 154 08 02,008 154 78 02
63
RECTIFIER
63
RECTIFIER
63
RECTIFIERTO 005 154 32 02
63
RECTIFIERTO 005 154 83 02,006 154 67 02
87
SCREW
87
SCREW T-FITTING TO BRACKET M4X25
90
SPRING WASHER ALTERNATOR CONNECTION D+
95
SEAL RINGTO 005 154 34 02
96
RINGTO 007 154 27 02
103
CONDENSER
103
CONDENSER
103
CONDENSER
103
CONDENSER
103
CONDENSERTO 004 154 75 02
103
CONDENSER , Replaced By: A0011566901
127
GASKETTO 007 154 26 02
127
GASKET
127
GASKET
134
REGULATOR AND CUT-OUT
134
REGULATOR AND CUT-OUTTO 005 154 32 06
134
REGULATOR (ELECTRONIC FIELD REGULATOR)
134
REGULATORTO 007 154 26 02
134
REGULATOR AND CUT-OUT , Replaced By: A0021545806
134
REGULATOR AND CUT-OUT (ELECTRONIC FIELD REGULATOR)
134
REGULATOR AND CUT-OUT
134
REGULATORTO 008 154 31 02
134
REGULATOR AND CUT-OUTTO 005 154 34 02
134
REGULATOR AND CUT-OUT , Replaced By: A0001541805
134
REGULATOR AND CUT-OUT , Replaced By: A0001541805
134
REGULATOR AND CUT-OUT , Replaced By: A0021546806
134
REGULATOR AND CUT-OUT , Replaced By: A0021546806
134
REGULATOR AND CUT-OUT , Replaced By: A0021549606
134
REGULATOR AND CUT-OUT , Replaced By: A0001542205
134
REGULATOR AND CUT-OUT
135
REGULATOR AND CUT-OUT , Replaced By: A0001541705
135
REGULATOR AND CUT-OUT , Replaced By: A0001541805
135
REGULATOR AND CUT-OUTTO 366 150 06 50, NOT USED
135
REGULATOR AND CUT-OUT , Replaced By: A0001541705
135
REGULATOR AND CUT-OUT , Replaced By: A0021549506
135
REGULATORTO 007 154 26 02
135
REGULATOR AND CUT-OUTTO 005 154 32 06
135
REGULATORTO 007 154 27 02
135
REGULATOR AND CUT-OUT WITH GASKET TO 007 154 81 02
143
SPRING
143
SPRING
151
CARBON BRUSH SET , Replaced By: A0001548614
151
CARBON BRUSH SET , Replaced By: A0001548114
151
CARBON BRUSH SET
151
CARBON BRUSH SETTO 007 154 28 02,009 154 08 02
151
BRACKET WITH CARBON BRUSHES TO 008 154 31 02
151
CARBON BRUSH SETTO 007 154 27 02
151
CARBON BRUSH SETTO 005 154 34 02
151
CARBON BRUSH SETTO 009 154 07 02
151
CARBON BRUSH SET
151
CARBON BRUSH SETTO 008 154 78 02
175
SCREW ADDITIONAL WORK ON FRAME MOUNTED CABLE HARNESS
175
SCREW
175
SCREW
175
SCREW FUSE BOX TO SIDE MEMBER,5 097182
175
SCREWR & S, M 4X8
175
SCREW , Replaced By: N007985004130
175
SCREW , Replaced By: N000000001933
178
SPRING WASHER ALTERNATOR CONNECTION D+
216
WASHER PULLEY TO ALTERNATOR
218
NUT WEAR INDICATOR
220
TERMINAL TERMINALS: B+, B-, D+, W
227
REPAIR KIT ROTOR TO 009 154 08 02,008 154 78 02
227
REPAIR KIT (PARTS KT),ROTOR TO 007 154 27 02,009 154 07 02
227
REPAIR KIT ROTOR TO 005 154 52 02
227
REPAIR KIT ROTOR TO 007 154 28 02
227
REPAIR KIT
227
REPAIR KIT , Replaced By: A0001500372
227
REPAIR KIT , Replaced By: A0001500472
227
REPAIR KIT , Replaced By: A0001500672
239
PULLEY , Replaced By: A0011551015
239
PULLEY TWO-GROOVE,208848/91, Replaced By: A0011555815
239
PULLEY , Replaced By: A0001557218
239
BELT PULLEY F POLY-V BELT TWO-GROOVE,208848/91
239
PULLEY TWO-GROOVE,061992
239
PULLEY TWO-GROOVE
255
FAN ALTERNATOR
255
FAN
271
FANTO 344 154 71 02
271
FAN , Replaced By: A0001558518
271
FAN FAN TWO-GROOVE V-BELT PULLEY TO 006 154 24 02
279
FAN ALTERNATOR
279
FAN WITH PULLEY
303
SPRING WASHER HEATER PLUG CABLE HARNESS
303
SPRING WASHER ALTERNATOR CONNECTION W
303
SPRING WASHER , Replaced By: N000137008212
303
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
311
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
311
NUT , Replaced By: N304032005005
311
NUT , Replaced By: N913023006001
311
NUT IN CASE OF SUBSEQUENT INSTALLATION
311
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
351
SUPPORT , Replaced By: A4071501970
351
SUPPORT , Replaced By: A4951500070
351
SUPPORT ALTERNATOR
431
BUSHING
431
BUSHING
431
BUSHING , NOT USED
431
BUSHING
431
BUSHING
479
SCREW STRAP TO BRACKET
479
SCREWM 10X20
479
SCREW SUPPORT TO CYLINDER CRANKCASE
479
SCREW REAR SPRING BRACKET TO FRAME M 14X45
479
SCREW BRACKET IN CYLINDER CRANKCASE
