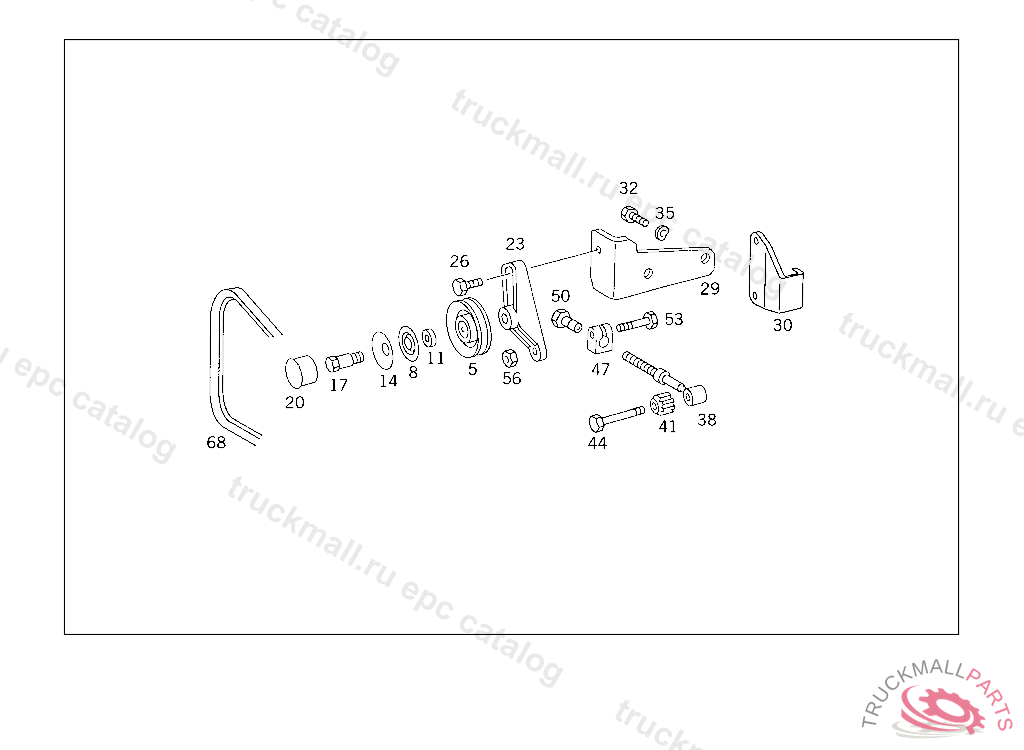

Поз.
Артикул
Описание
5
PULLEY , Replaced By: A1161300460
8
SEAL RING TIGHTENER PULLEY TO LEVER
11
SPACER RING TIGHTENER PULLEY TO LEVER
14
COVER PLATE TIGHTENER PULLEY TO LEVER
17
FITTED SCREW TIGHTENER PULLEY TO LEVER
20
CAP TIGHTENER PULLEY TO LEVER
23
LEVER TIGHTENER PULLEY
26
SCREW BRACKET TO FRAME M 12X35
29
BRACKET TIGHTENER PULLEY,093247
32
SCREW BRACKET TO CAB MOUNTING CONSOLE
35
SPRING WASHER BEARING BRACKET TO SIDE MEMBER,4 207081
38
CLAMPING BOLT
41
BUSHINGTO 355 150 03 72,366 150 13 72
41
BUSHING
44
SCREW BRACKET TO FRAME SIDE MEMBER
47
CLAMPING PIECE TIGHTENER PULLEY
47
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
50
NUT TIGHTENER PULLEY TO LEVER
53
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
56
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
68
V-BELT12.5X1400
