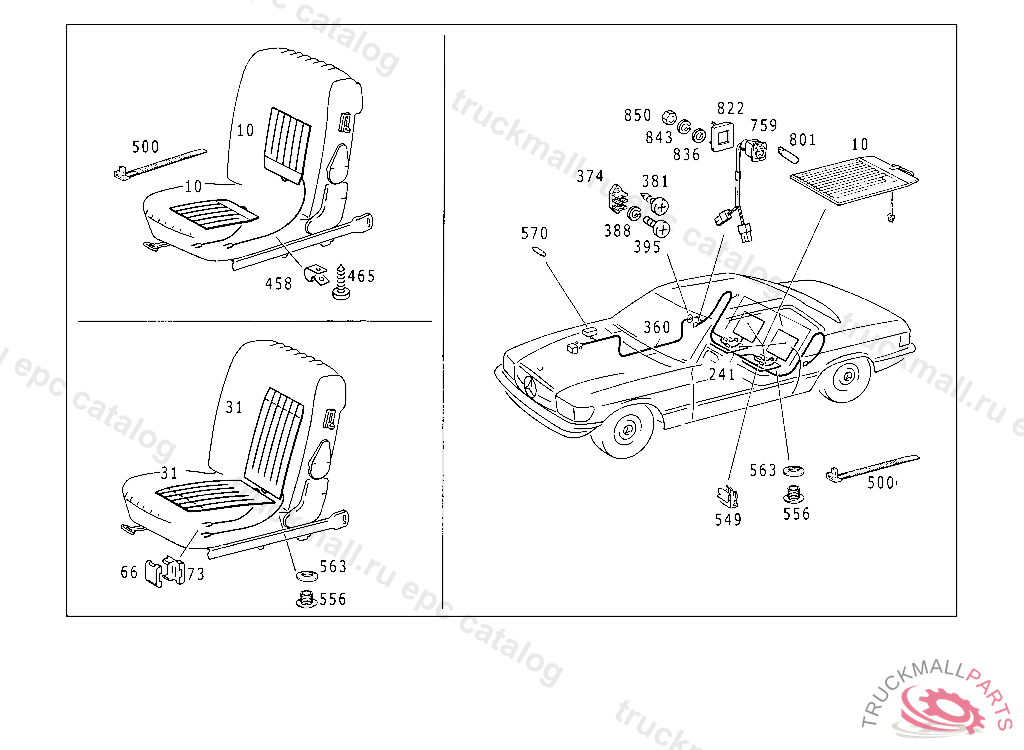

Поз.
Артикул
Описание
10
HEATING PAD BACKREST AND SEAT CUSHION
31
HEATING PAD BACKREST AND SEAT CUSHION
66
PLUG HOUSING
73
COVER
241
ELECTRIC CABLE REAR SEAT
360
ELECTRIC CABLE (ADDITIONAL CABLE)
374
CABLE CONNECTOR , FROM CHASSIS:108.016 050831 108.018 053598 108.019 054235
381
SHEET METAL SCREW BRACKET TO CAB FLOOR
388
LOCK WASHER T-FITTING TO BRACKET
395
SCREW ELECTRIC CABLE TO CABLE CONNECTOR
458
CLAMP WIRE CABLE TO FIRE WALL
465
SCREW
465
SHEET METAL SCREW , Replaced By: N000000002062
500
LOOM TIE TO MOUNT PLASTIC PIPING
500
LOOM TIE
500
LOOM TIE
500
LOOM TIE , UP TO CHASSIS: 108.012 UNTIL PRODUCTION STOP 108.016 042417 108.018,019 043374 109.016 002452
549
CLIP PLUG TO REAR PILLAR
556
EYE
556
EYE
563
EYE
570
FUSEA16
570
FUSE , Replaced By: N072581008101
570
FUSEA8
759
SWITCH SEAT HEATING
801
BULB
822
COVERING SWITCH TO INSTRUMENT PANEL, UP TO IDENT NO.: 5 220080+ FROM IDENT-NO.: 6 900001-6 900052
836
WASHER BRACKET MOUNTING
843
LOCK WASHER BRACKET TO COVERING
850
NUT PLUG SOCKET TO BRACKET,5 906887
