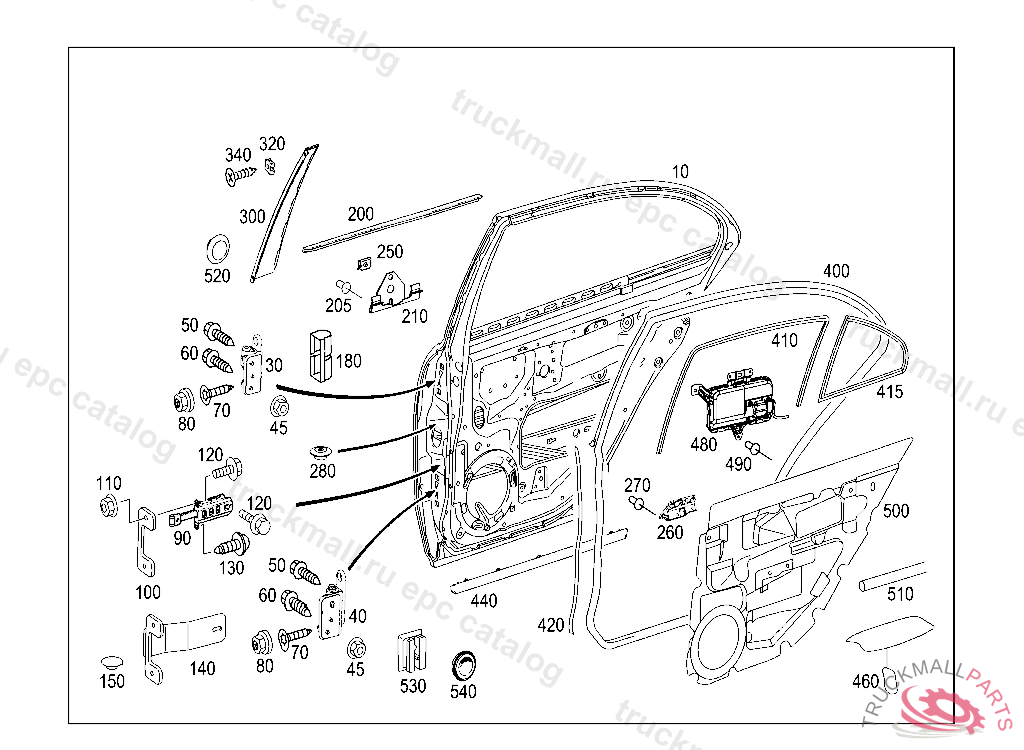

Поз.
Артикул
Описание
10
DOOR SHELL RIGHT
10
DOOR SHELL LEFT
10
DOOR SHELL LEFT
10
DOOR SHELL LEFT
10
DOOR SHELL RIGHT
10
DOOR SHELL RIGHT
30
HINGE RIGHT TOP
30
HINGE LEFT TOP
30
HINGE LEFT TOP
30
HINGE RIGHT TOP
30
HINGE RIGHT TOP, Replaced By: A2117301437
30
HINGE LEFT TOP, Replaced By: A2117301337
30
HINGE RIGHT TOP, Replaced By: A2117301037
30
HINGE LEFT TOP, Replaced By: A2117300937
40
HINGE LEFT BOTTOM
40
HINGE LEFT BOTTOM
40
HINGE RIGHT BOTTOM
40
HINGE RIGHT BOTTOM
40
HINGE RIGHT BOTTOM, Replaced By: A2117301637
40
HINGE LEFT BOTTOM, Replaced By: A2117301537
40
HINGE RIGHT BOTTOM, Replaced By: A2117301237
40
HINGE LEFT BOTTOM, Replaced By: A2117301137
45
NUT ASSEMBLY BOLT,A 267554
50
BOLT HINGE TO BODY M8X25, A 00901919990831
60
BOLT RIGHT DOOR HINGE
60
BOLT TO HINGE, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0139902101
70
SCREW LOCKING EYE REAR FENDER
80
CAP TO RIGHT DOOR HINGE SCREW
90
DOOR CHECK LEFT AND RIGHT
90
DOOR CHECK LEFT AND RIGHT
100
SPACER PLATE LEFT AND RIGHT
110
NUT , Replaced By: N913023006001
120
SCREW DOOR CHECK TO DOOR M6X12
120
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
120
SCREW
130
HEXALOBULAR BOLT OIL LINE TO CASE M6X20
140
BRACKET REBOUND STRAP
150
STOP PLUG DOOR CHECK TO DOOR
180
COVER DOOR BRAKE ON B-PILLAR
200
GARNISH MOULDING RIGHT DOOR EDGE, B 44999920090529 L 03499920090531 X 23999820070131
200
GARNISH MOULDING RIGHT DOOR EDGE, B 45000020090529 L 03500020090531 X 23999920070131
200
ORNAMENTAL TRIM LEFT DOOR EDGE, B 45000020090529 L 03500020090531 X 23999920070131
200
GARNISH MOULDING LEFT DOOR EDGE
200
GARNISH MOULDING RIGHT DOOR EDGE
200
GARNISH MOULDING LEFT DOOR EDGE, B 44999920090529 L 03499920090531 X 23999820070131
205
RIVET TRIM STRIP FASTENING
205
BLIND RIVET GRAB HANDLE BRACKET TO INTERIOR PLATE, A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
205
RIVET TYPE PLATE
210
CLIP TRIM STRIP FASTENING, B 11811620070116 L 00705720061231 X 21775820060926
210
CLIP GARNISH MOULDING TO FRONT DOOR EDGE
250
CLIP FIXED WINDOW AREA
260
BRACKET PANELING MOUNTING, RIGHT
260
BRACKET PANELING MOUNTING, LEFT
270
BLIND RIVET GRAB HANDLE BRACKET TO INTERIOR PLATE, A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
280
EXPANSION PLUG STEERING COLUMN END 20 MM,4 4307305 062722
300
ORNAMENTAL COVER WINDOW FRAME,RIGHT, A 37029820030728 A 57335120040331 X 11082820031008
300
ORNAMENTAL COVER WINDOW FRAME,LEFT, A 37029820030728 A 57335120040331 X 11082820031008
320
LOCK AT BRACKET,F 029921
340
TAPPING SCREW ROOF MOUNTED OPERATING UNIT
400
WEATHERSTRIP LEFT
400
WEATHERSTRIP RIGHT
410
WEATHERSTRIP RIGHT
410
WEATHERSTRIP LEFT
415
WEATHERSTRIP RIGHT
415
WEATHERSTRIP LEFT
420
RAIL LEFT
420
RAIL RIGHT
440
WEATHERSTRIP LEFT AND RIGHT
460
SEAL SIDE AIRBAG AT REAR LEFT AND RIGHT
480
AIR BAG RIGHT
480
AIR BAG LEFT
490
BLIND RIVET GRAB HANDLE BRACKET TO INTERIOR PLATE, A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
500
WEATHERSTRIP RIGHT
500
WEATHERSTRIP LEFT, TO BE ADAPTED DURING ASSEMBLY
510
SEALING CORD DOOR, ORDER BY THE METER
520
PLUG LOCK OPERATING LEVER ADJUSTMENT HOLE
530
BRACKET
540
GROMMET
