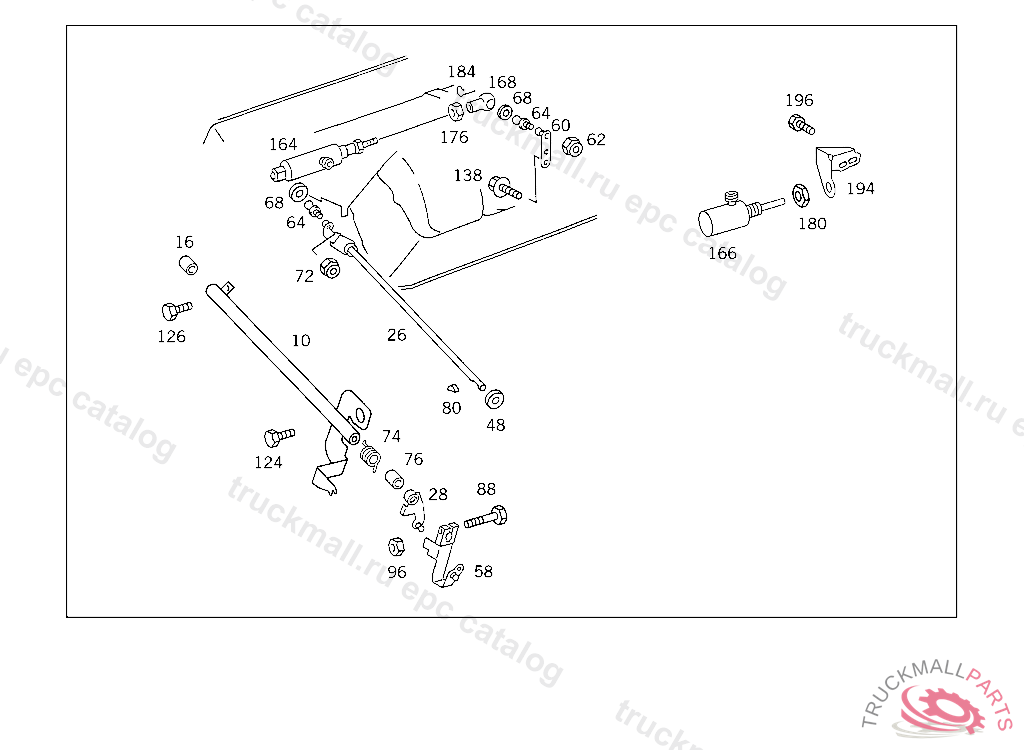

Поз.
Артикул
Описание
10
BEARING TUBE
16
BUSHING MOUNTING
26
SHAFT ,460462
28
LEVER
48
COVERING
58
LEVER CONTROL SHAFT
60
LEVER INJECTION PUMP CONTROL
60
LEVER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4420705921
62
NUT WINDOW REGULATOR TO REAR DOOR
64
BALL PIVOT INJECTION PUMP
64
BALL PIVOT
68
SEAL RING MODULATION PRESSURE CONTROL
72
NUT LEVER TO SHAFT
72
NUT HEATING PIPE TO BRACKET
74
SPRING CONTROL SHAFT LEVER ASSEMBLY TO CONTROL SHAFT
76
BUSHING
80
WOODRUFF KEY
88
HEXAGON HEAD BOLT. SCREW STARTER SWITCH TO STEERING COLUMN JACKET TUBE
88
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 6X35
88
SCREW. HEXAGON HEAD BOLT BATTERY AND ENGINE CABLE HARNESSES TO BRACKET M6X35
96
NUT LEVER TO SHAFT
96
NUT HEATING PIPE TO BRACKET
124
SCREW BEARING BRACKET TO CYLINDER CRANKCASE
126
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
126
SCREW , Replaced By: N304017010028
138
HEXAGON HEAD BOLT
138
SCREW PUMP TO BRACKET
164
CYLINDER , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 442 - 743376, Replaced By: A0000723112
164
CYLINDER , Replaced By: A0000721512
164
CYLINDER INJECTION PUMP CONTROL
164
CYLINDER (OPERATING CYLINDER),918799
164
CYLINDER (OPERATING CYLINDER)
164
CYLINDER (OPERATING CYLINDER)
166
CYLINDER , Replaced By: A0000723212
166
CYLINDER TORQUE REDUCER BOSCH
168
BALL SOCKET
168
BALL SOCKET
168
BALL SOCKET
176
NUT
176
NUT , Replaced By: N304035008001
176
NUT AT SHIFT LEVER
180
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
184
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
194
BRACKET CYLINDER
194
BRACKET CYLINDER,734141
196
SCREW PUMP TO BRACKET
999
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
999
NUT SPRING-LOADED PUSH ROD
999
SCREW LICENSE PLATE TO BRACKET
999
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
999
PIN POWER CYLINDER TO BRACKET
999
WASHER SHIFTING CYLINDER TO CASE
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
COTTER PIN
999
SCREW BRACKET TO INJECTION PUMP
999
SPRING , Replaced By: A4429935010
999
SCREW BRACKET TO INJECTION PUMP,012077 NOT USED
999
SCREW INJECTION PUMP WITH DRIVE GEAR TO CRANKCASE, NOT USED
999
SPACER TUBE CYLINDER TO LEVER, NOT USED
999
THREADED UNION CYLINDER TO LEVER
999
LEVER (DOUBLE LEVER)
999
ROD END
999
SPACER RING MANUAL FINE CONTROL TO GOVERNOR HOUSING
999
CYLINDER (POWER CYLINDER)
