Поз.
Артикул
Описание

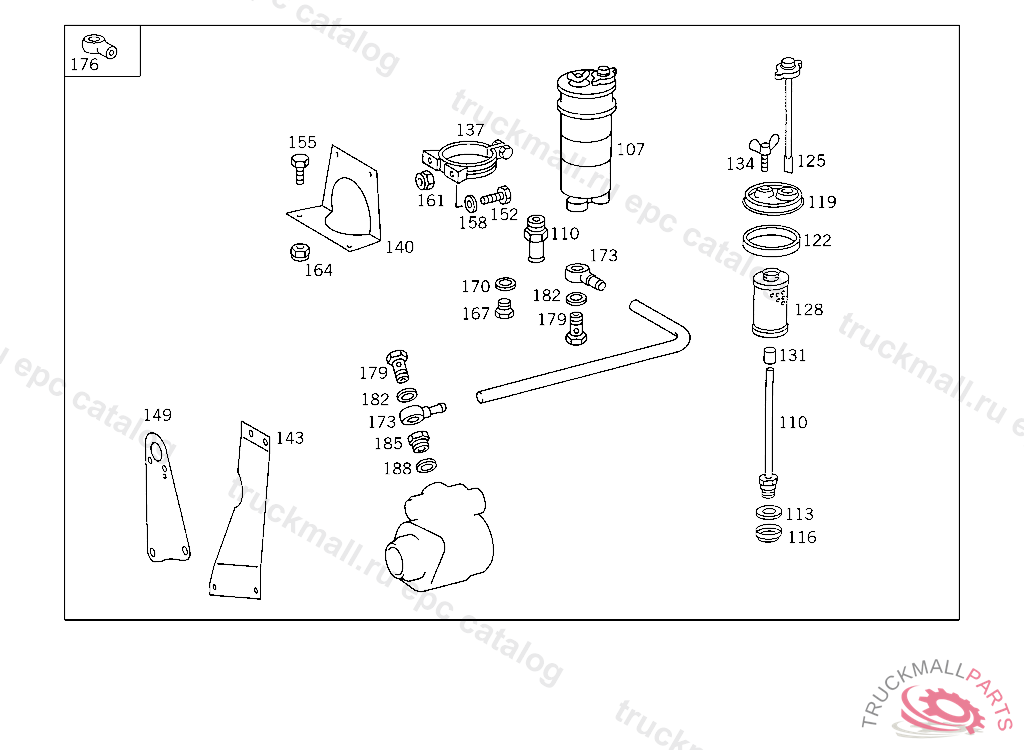

107
TANK , Replaced By: A0004666802
107
TANK OIL
110
SUPPORT FILTER ELEMENT
113
SPRING , 993034
116
VALVE DISC , 993034
119
COVER OIL TANK
122
SEAL RINGTO 000 466 38 02
125
OIL DIPSTICK OIL TANK
128
FILTER , 993034
131
RUBBER SLEEVETO 000 466 38 02
134
SCREW OIL TANK
137
CLAMP OIL TANK TO BRACKET
140
BRACKET OIL TANK
143
BRACKET OIL TANK
149
SUSPENSION EYE BRACKET TO ENGINE, TO BE ADAPTED DURING ASSEMBLY
149
SUSPENSION EYE , Replaced By: A4222230841
152
SCREW , Replaced By: N304017008034
152
SCREW BRACKET TO CROSS CONNECTION STRUT
155
SCREW PIPE CLAMP
155
SCREW , Replaced By: N304017008021
158
WASHER , Replaced By: N000125008443
158
WASHER EXHAUST MUFFLER TO STRAP
161
NUT , Replaced By: N913004008001
161
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
164
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
164
NUT , Replaced By: N913004008001
167
SCREW PLUG , Replaced By: A3219970630
167
SCREW PLUG FUEL DISCHARGE
170
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
173
BANJO UNION. LINE (SUCTION LINE),FROM OIL TANK TO PUMP
176
BANJO UNION
179
HOLLOW SCREW SUCTION LINE TO OIL PUMP
182
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
185
FITTING POWER STEERING PUMP TO BEARING FLANGE
188
SEAL RING POWER STEERING PUMP TO BEARING FLANGE
999
GASKET , Replaced By: A0004604361
999
GASKET KIT (GASKET KIT),POWER STEERING PUMP
999
SEAL RING
999
COVERTO 000 460 23 80
999
SEAL RINGTO 000 460 26 80
999
SEAL RINGTO 000 553 23 01,000 553 37 01,,4 250876
999
SUPPORT OIL LINE TO TRANSMISSION
999
BRACKET LINE CONNECTION
999
BRACKET LINE CONNECTION
999
BRACKET LINE MOUNTING
999
LINE STEERING-TO-POWER-CYLINDER DELIVERY LINE,FRONT CONNECTION
999
LINE STEERING-TO-POWER-CYLINDER DELIVERY LINE,REAR CONNECTION
999
LINE STEERING-TO-POWER-CYLINDER DELIVERY LINE,FRONT CONNECTION
999
LINE STEERING-TO-POWER-CYLINDER DELIVERY LINE,REAR CONNECTION
999
BRACKET FUEL LINE TO BELL HOUSING
999
BRACKET DELIVERY AND SUCTION LINES TO FRAME
999
CONNECTOR RETURN, FROM VALVE TO FITTING
999
SEAL RING VALVE TO VALVE,K 025179
