Поз.
Артикул
Описание

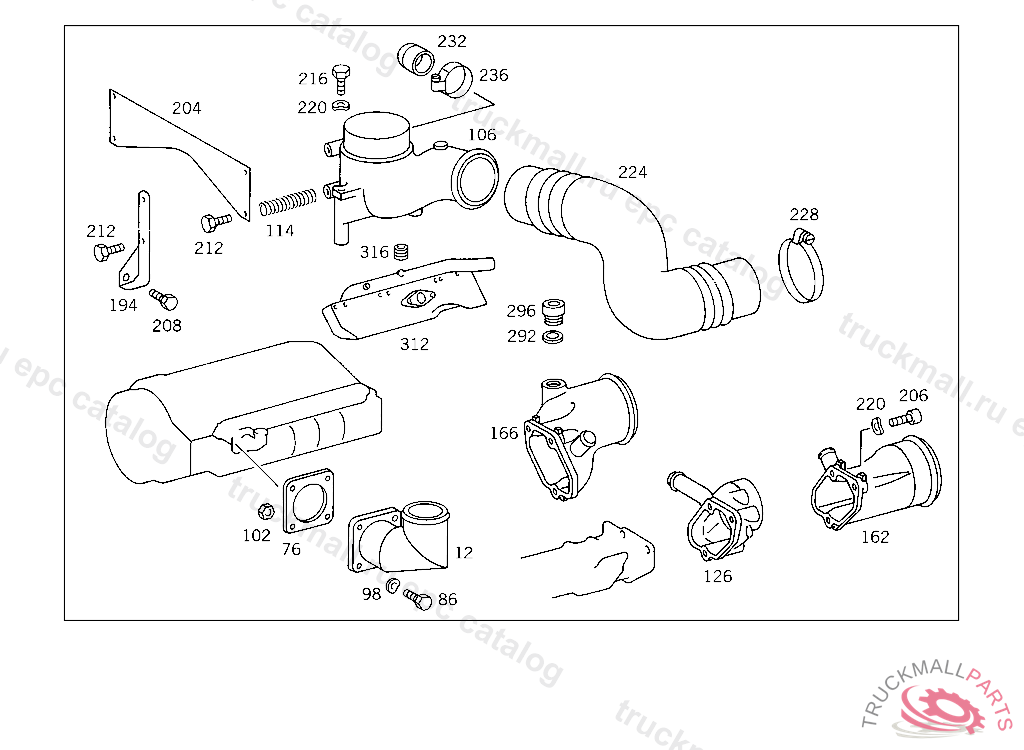

12
INTAKE MANIFOLD AIR INTAKE PIPE
76
GASKET FROM AIR INTAKE PIPE TO ENGINE, UP TO IDENT NO. 004702 EXCEPT FOR 004316,004586,004634,004640,004650,004662,004673.
86
SCREW CLAMP ON BRACKET
86
SCREW , Replaced By: N304017008018
86
SCREW , Replaced By: N304017008034
86
SCREW , Replaced By: N304017008033
86
SCREW BRACKET TO CROSS CONNECTION STRUT
86
HEXAGON HEAD BOLT SHIFT LEVER TO CAB FLOOR M 8X45
86
BOLT. SCREW BRACKET TO PUSH ROD CHAMBER COVER
86
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
86
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
86
SCREW BRACKET TO TRANSMISSION
86
SCREW SUPPORT TO FENDER
98
SPRING WASHER SHIFTING CYLINDER TO YOKE
98
WASHER EXHAUST MUFFLER TO STRAP
102
HEXAGON NUT. NUT , Replaced By: N913023008002
102
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
102
NUT STRAP TO SUPPORT,5 149419
106
CONNECTION PIPE SOCKET LEFT
106
CONNECTION PIPE SOCKET RIGHT
106
CONNECTION PIPE SOCKET LEFT
114
THREADED INSERT
126
CONNECTION PIPE SOCKET RIGHT
126
CONNECTION PIPE SOCKET LEFT
162
CONNECTION PIPE SOCKET LEFT
166
CONNECTION PIPE SOCKET RIGHT
194
BRACKET
204
BRACKET FITTING
206
SCREW CONVERTER HOUSING
206
SCREW PIPE ELBOW TO CHARGING AIR INTERCOOLER M 10X35,5 708090
206
SCREW PIPE TO CHARGING AIR INTERCOOLER
208
HEXAGON HEAD BOLT BRACKET TO TRANSMISSION
212
SCREW STOP TO BATTERY CASE
212
SCREW , Replaced By: N304017008016
212
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
216
SCREW , Replaced By: N304014008021
216
SCREW , Replaced By: N304014008009
216
HEXAGON HEAD BOLT. SCREW EXHAUST PIPE TO MUFFLER
216
SCREW 3/2-WAY VALVE TO BRACKET
216
SCREW CHARGING AIR ELBOW TO TURBOCHARGER
220
WASHER VIBRATION ABSORBER TO BRACKET
220
WASHER EXHAUST MUFFLER TO STRAP
220
SPRING WASHER STEERING COLUMN BRACKET TO CAB
220
WASHER , Replaced By: N000433010510
224
HOSE
224
HOSE INTAKE PIPE-SOCKET TO TURBOCHARGER
228
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
228
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
228
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
228
CLAMP , Replaced By: A0059971490
228
CLAMP , Replaced By: N000000000678
228
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, TO BE ADAPTED DURING ASSEMBLY
228
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
232
LOCKING CAP TO LOCK COOLING WATER BOTTOM OUTLET
232
LOCKING CAP TO PLUG INTAKE MANIFOLD AT AIR COMPRESSOR CONNECTION
232
LOCKING CAP , Replaced By: A3845067033
236
CLAMP25-40X13 MM
236
LOOM TIE
236
LOOM TIE , Replaced By: N000000000668
236
CLAMP , Replaced By: A0069970490
236
CLAMP , Replaced By: A0069970590
292
SEAL RING AT AIR COMPRESSOR
292
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
292
SEAL RING FROM PIPE ELBOW TO AIR COMPRESSOR
296
SCREW PLUG OIL COOLER,5 360280
296
SCREW PLUG , Replaced By: N000908026008
296
SCREW PLUG , Replaced By: A0009973532
312
AIR INTAKE PIPE , Replaced By: A4420980401
312
INTAKE PIPE
316
THREADED INSERT
999
THRUST RING SUCTION LINE TO OIL PUMP
999
LOCKING CAP
999
LOOM TIE , Replaced By: N916017025000
999
SLEEVE , Replaced By: A4229970083
999
SEAL RING LINE CONNECTION
999
LOOM TIE , Replaced By: N000000000668
999
SPACER RING PULLEY AND INTERMEDIATE PIECE TO WATER PUMP HUB
999
GASKET , Replaced By: A4421411480
999
GASKET , Replaced By: A4471410580
999
SPACER TUBE CABLE CONNECTOR BEHIND CAB,5 148678
999
GASKET , Replaced By: A4421410780
999
HOSE AIR COMPRESSOR CONNECTION
999
CONNECTOR
999
HOSE FROM AIR CLEANER TO INTAKE PIPE
999
CONNECTION PIPE SOCKET , Replaced By: A4041400037
999
CONNECTION PIPE SOCKET , Replaced By: A4241412157, +001N000908026005, +001N007603026106
999
CONNECTION PIPE SOCKET , Replaced By: A4241412257, +001N000908026005, +001N007603026106
999
INTAKE MANIFOLD , Replaced By: A4271410308
999
CAP AIR COMPRESSOR CONNECTION
999
INTAKE MANIFOLD , Replaced By: A4411400401
999
BRACKET
999
BRACKET FUEL FILTER MOUNTED,645919
999
AIR INTAKE PIPE , SEE SA 18540/72
999
AIR INTAKE PIPE , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 614576, Replaced By: A4420900629
999
BRACKET AIR INTAKE PIPE
999
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 614576, Replaced By: A4420980239
999
FITTING AT AIR COMPRESSOR
999
HOSE AIR-COMPRESSOR INTAKE PIPE CONNECTION
999
CONNECTOR , Replaced By: A4221400137
999
SLEEVE AIR INTAKE PIPE TO TURBOCHARGER
999
BRACKET
999
CONNECTION PIPE SOCKET , Replaced By: A4241410657, +004N007603026100, +004N007604026102
999
CONNECTION PIPE SOCKET , Replaced By: A4241410557
999
CONNECTION PIPE SOCKET , Replaced By: A4241411557
999
SHIM INTAKE MANIFOLD TO BRACKET,925974
999
AIR INTAKE PIPE
999
INTAKE PIPE
999
INTAKE PIPE , Replaced By: A4420982801, +001N000908026005, +001N007603026100
999
INTAKE PIPE
999
CAP TO PLUG AIR COMPRESSOR OPENING,128243
999
HOSE AIR-COMPRESSOR INTAKE PIPE CONNECTION
999
AIR INTAKE PIPE , NOT USED
999
WASHER
999
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT,5 433388
999
SCREW PULLEY
999
WASHER , Replaced By: N007349008007
999
WASHER
999
SEAL RING LINE TO OIL PUMP
999
COMBINATION BOLT TO PLUG AIR COMPRESSOR OPENING
999
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
999
CLAMP , Replaced By: A0069970490
