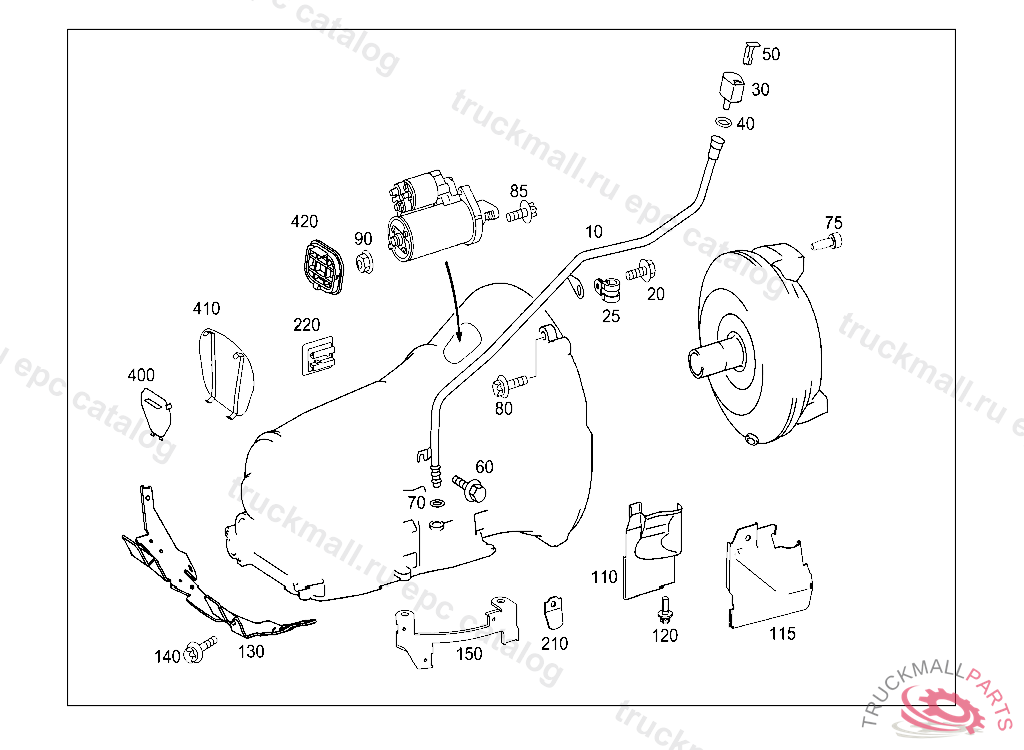

Поз.
Артикул
Описание
10
OIL FILLER PIPE
20
HEXAGON HEAD BOLT
25
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
25
MOUNTING CLAMP OIL FILLER TO ENGINE
30
COVER OIL FILLER PIPE
40
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
50
DOWEL PIN OIL FILLER PIPE
60
HEXAGON HEAD BOLT
70
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
75
SCREWM 8X18
80
SCREW PLATE TO FRAME M 10X45
85
HEXALOBULAR BOLT P.T.O. TO TRANSMISSION M10X90
110
COVER TRANSMISSION CASE AND OIL PAN
115
COVER AT TRANSMISSION CASE, F 45787220091213
115
SCREENING PLATE AT TRANSMISSION CASE, A 38522920100226 L 03616920091130 V 00202920091130 F 45787320091213 L 10798620100225
120
BOLT. SCREW CAN NEUTRAL POINT ON EQUIPMENT PLATE M 6X15/10
120
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
140
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
400
COVER MOUNTING HOLE IN OIL PAN
