Поз.
Артикул
Описание

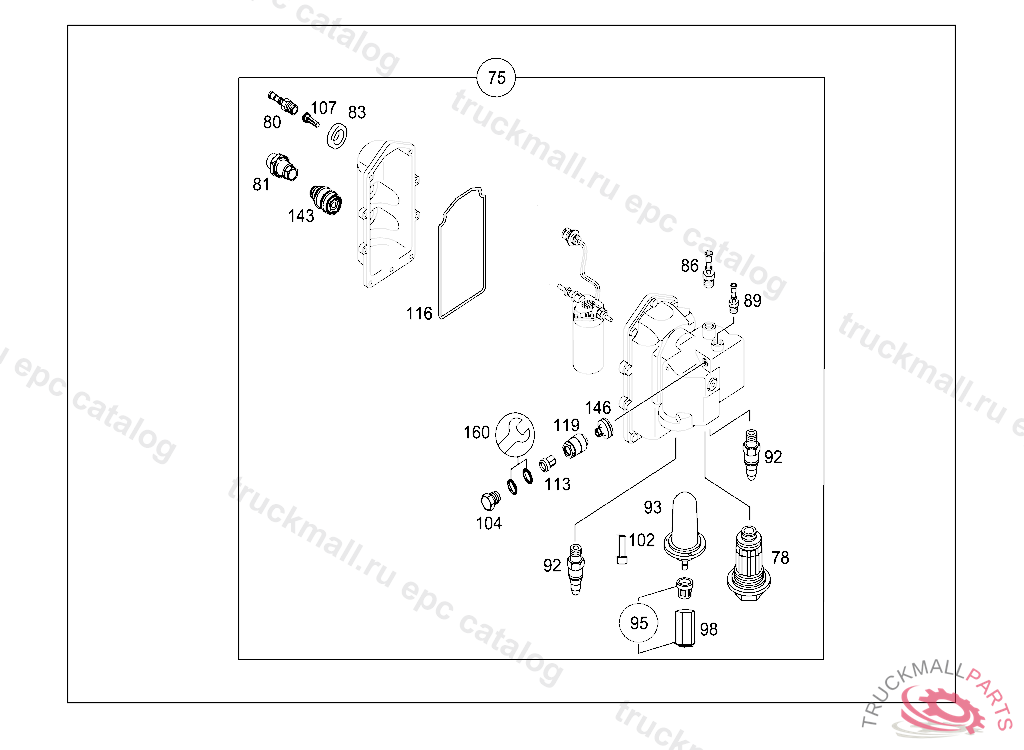

75
PUMP MODULE (UREA DELIVERY PUMP), FOR COMPONENT PARTS SEE SPARE PARTS LIST
75
PUMP MODULE , Replaced By: A0001402578
75
PUMP MODULE
78
FILTER ELEMENT WITH COVER
80
FITTING ADBLUE INPUT
83
GROMMET SEAL
86
FITTING ADBLUE OUTPUT
89
FITTING ADBLUE RETURN LINE
92
FITTING COOLING WATER INLET/OUTLET M14X1.5 / 10MM, FROM 01.07.09
93
ACCUM. BAG
95
VALVE INSERT RESERVOIR BLADDER
98
DUST PROTECTION CAP RESERVOIR BLADDER 11X10.5 MM
102
HEXALOBULAR BOLT RESERVOIR BLADDER AT PUMP MODULE M5X16
104
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 10, VOSS 232, Replaced By: A0009975034
107
STRAINER ON SUCTION SIDE
113
FILTER ADBLUE METERING DEVICE TO A000 140 05 78
116
GASKET HOUSING TO COVER
119
SCREW-IN FITTING HOUSING TO COVER TO A000 140 05 78
143
VALVE CRANKCASE BREATHER
146
VALVETO A000 140 05 78
160
REPAIR KIT O-RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 10, SDF
