Поз.
Артикул
Описание

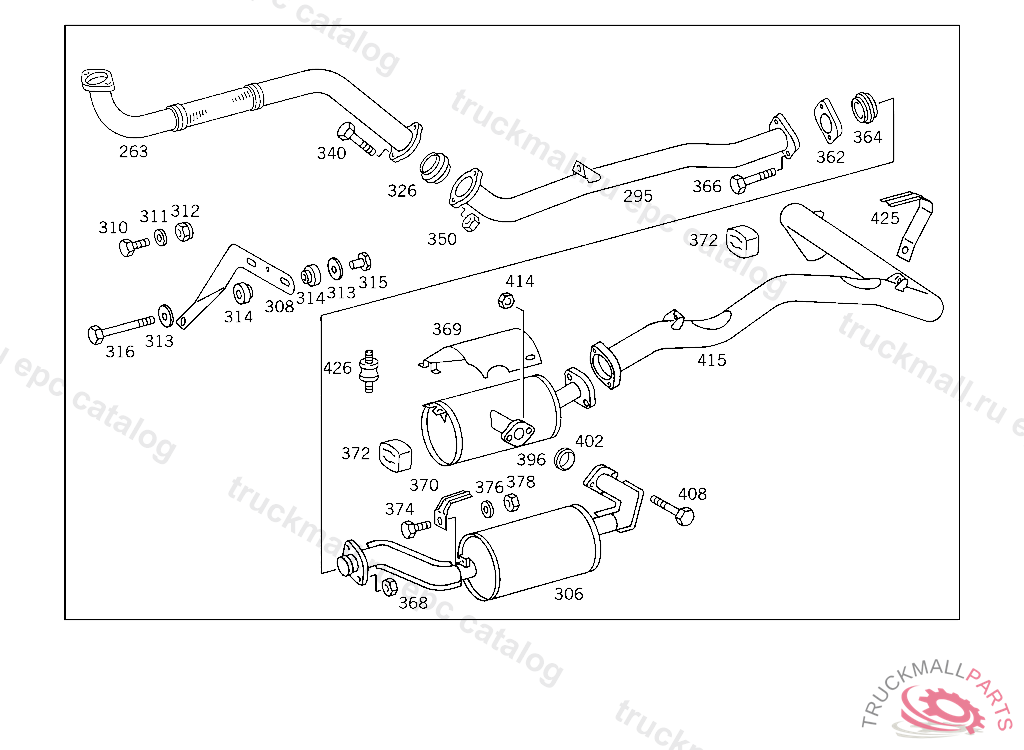

263
EXHAUST PIPE FRONT
263
EXHAUST PIPE FRONT
295
EXHAUST PIPE CENTRAL
295
EXHAUST PIPE CENTRAL
306
EXHAUST MUFFLER PRE-MUFFLER
308
BRACKET
310
SCREW CLAMP TO BRACKET AND TO PIPE
311
WASHER EXHAUST MUFFLER TO STRAP
311
WASHER , Replaced By: N000125008443
312
HEXAGON NUT SCREENING PLATE,5 163561
312
NUT , Replaced By: A1201420072
313
WASHER HIGH PRESSURE HOSE TO BRACKET
314
RUBBER RING BRACKET TO MOUNTING PLATE OR TO TRANSMISSION
315
NUT BRACKET TO MOUNTING PLATE OR TO TRANSMISSION
316
SCREW , Replaced By: N304017008021
316
SCREW PIPE CLAMP
326
SEAL RING
326
SEAL RING , Replaced By: A2024920381
340
SCREW , Replaced By: N304017008043
340
SCREW VALVE TO BRACKET M 8X55
350
HEXAGON NUT SCREENING PLATE,5 163561
350
NUT , Replaced By: A1201420072
362
FLANGE FRONT LEFT EXHAUST PIPE TO FRONT EXHAUST LINE, INAPPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER
364
SEAL RING FRONT LEFT EXHAUST PIPE TO FRONT EXHAUST LINE, ONLY FOR USE ON CATALYTIC CONVERTER EQUIPPED VEHICLESA 363212 ALSO INSTALLED ON A 335114, 362801, 363109
366
SCREW , Replaced By: N304017008043
366
SCREW VALVE TO BRACKET M 8X55
368
HEXAGON NUT SCREENING PLATE,5 163561
368
NUT , Replaced By: A1201420072
369
PROTECTIVE PLATE AT FRAME ABOVE MUFFLER
370
BRACKET PRE-MUFFLER FIXTURE
372
DAMPING PAD
372
DAMPING PAD PRE-MUFFLER FIXTURE
374
SCREW , Replaced By: N304017008016
374
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
376
WASHER EXHAUST MUFFLER TO STRAP
376
WASHER , Replaced By: N000125008443
378
NUT , Replaced By: A1201420072
378
HEXAGON NUT SCREENING PLATE,5 163561
396
MUFFLER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 062491, Replaced By: A4604911101
402
SEAL RING FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE
402
SEAL RING , Replaced By: A2024920281
408
SCREW , Replaced By: N304017008043
408
SCREW VALVE TO BRACKET M 8X55
414
HEXAGON NUT SCREENING PLATE,5 163561
414
NUT , Replaced By: A1201420072
415
EXHAUST PIPE REAR
415
EXHAUST PIPE REAR, 059607 904078011524
425
BRACKET REAR EXHAUST PIPE
426
BUFFER MOUNTING PARTS
426
BUFFER
999
BRACKET REAR EXHAUST PIPE,095634
999
FRONT EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE
999
FRONT EXHAUST PIPE
999
BRACKET
999
PROTECTIVE PLATE , 062492 904345
999
BRACKET
999
DAMPING PAD
999
WASHER
999
MUFFLER ,011524
999
EXHAUST PIPE
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER
999
EXHAUST PIPE
999
EXHAUST PIPE , Replaced By: A4604902121
999
EXHAUST PIPE
999
EXHAUST MUFFLER , Replaced By: A4604903401, +001A4604901301, +001A4604901919, +002A1124921140, +001A1264920581
999
PROTECTIVE PLATE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST MUFFLER , Replaced By: A4604903401, +001A4604901301, +001A4604900719, +001A4604902019, +002A1124921140, +001A1264920581
999
PROTECTIVE PLATE PRE-MUFFLER
999
EXHAUST PIPE
999
EXHAUST MUFFLER
999
FLANGE
999
CLAMP , Replaced By: A1124900341
999
CLAMP , Replaced By: A1074920340
999
BUFFER
999
CLAMP , Replaced By: A1244900141
