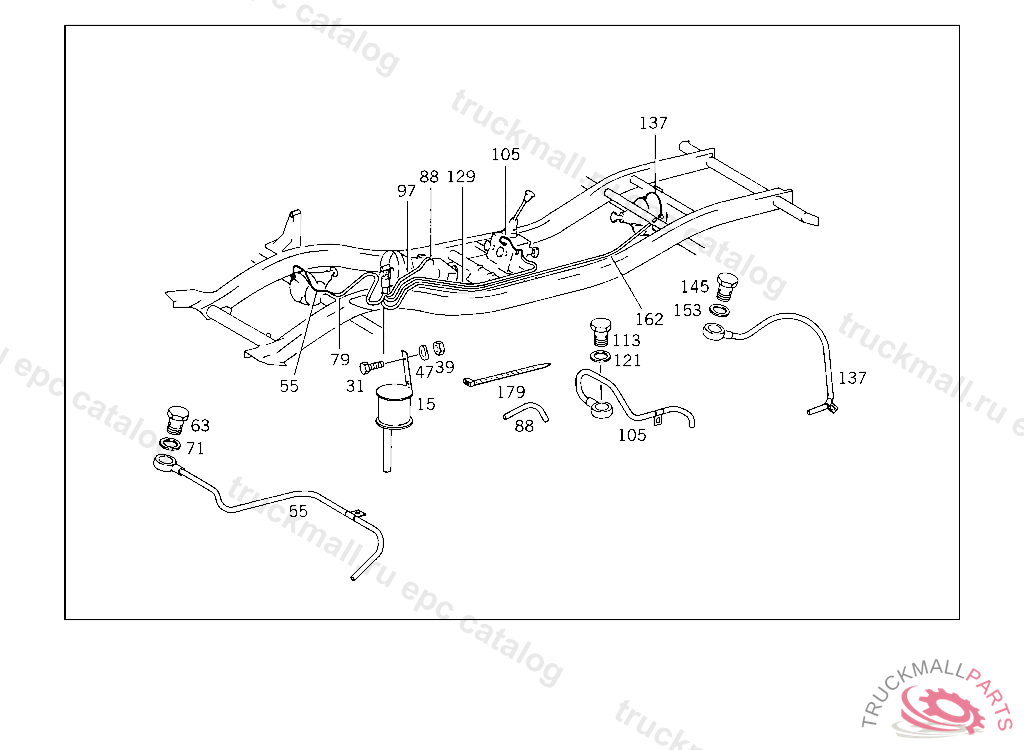

Поз.
Артикул
Описание
15
VALVE
31
SCREW COVER PLATE TO BRACKET
39
NUT BALL PIVOT TO LEVER
47
SPRING WASHER LICENSE PLATE TO BRACKET
55
LINE BREATHER, FROM IDENT NO. 024492 SEE UNIT MICROFICHE
55
LINE , Replaced By: A4603505580
63
HOLLOW SCREW LINE CONNECTION
71
SEAL RING FITTING TO AXLE HOUSING
79
HOSE , Replaced By: A0129975482
88
PIPE TRANSMISSION
97
HOSE , Replaced By: A0129975482
105
LINE TRANSFER CASE
113
HOLLOW SCREW PNEUMATIC AND HYDRAULIC CYLINDERS, CONNECTION: "21,22"
113
HOLLOW SCREW LINE CONNECTION
121
SEAL RING FITTING TO AXLE HOUSING
129
HOSE , Replaced By: A0129975482
137
LINE , Replaced By: A1234206428
137
LINE , Replaced By: A6014204528
137
LINE FROM DISTRIBUTOR TO REAR RIGHT BRAKE HOSE
145
HOLLOW SCREW LINE CONNECTION
153
SEAL RING FITTING TO AXLE HOUSING
162
HOSE , Replaced By: A0159971782
162
HOSE , Replaced By: A0129975482
179
LOOM TIE , Replaced By: A0019978390
179
LOOM TIE LINE MOUNTING 280 MM
999
BANJO UNION HEATING CONNECTION,K 169122
999
PLUG TAPPED HOLE IN SUPPORT
999
HOLLOW SCREW , Replaced By: N915036010108
999
HOLLOW SCREW FUEL LINE TO FEED PUMP
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER , Replaced By: N009021006208
999
SEAL RING FUEL LINE TO FEED PUMP
999
CLAMP , Replaced By: A4602800078
999
EDGE GUARD SECTION , Replaced By: A0019877625
999
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
999
BANJO UNION , Replaced By: N915052006005
