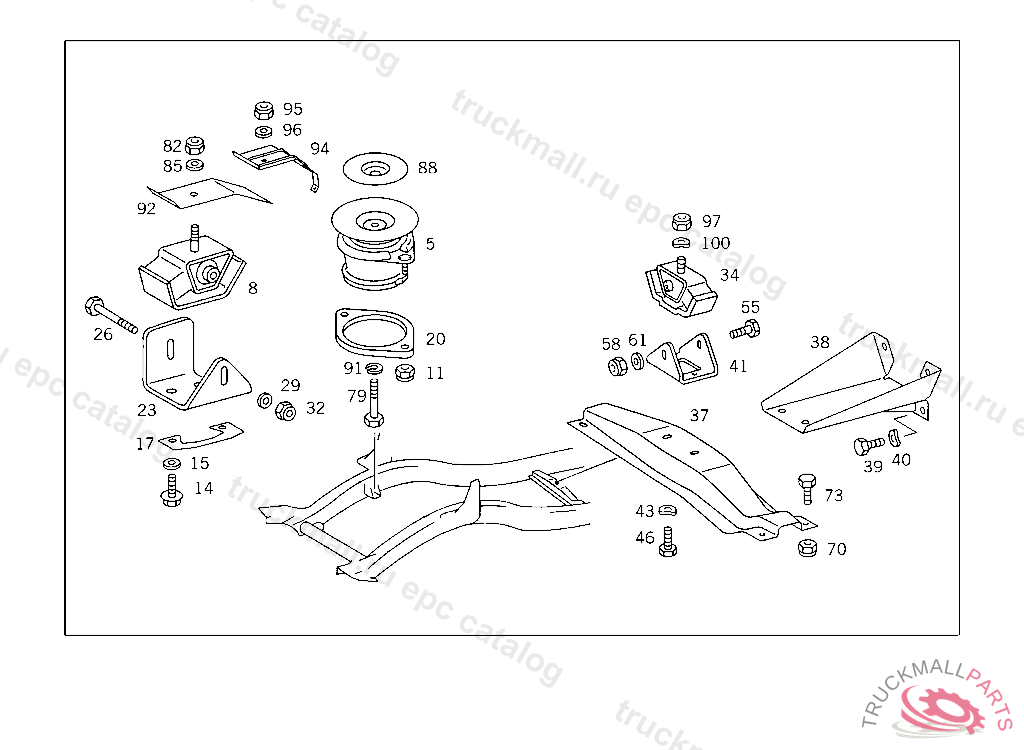

Поз.
Артикул
Описание
5
RUBBER MOUNTING ENGINE FRONT RIGHT MOUNTING
8
RUBBER MOUNTING ENGINE FRONT MOUNTING
11
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
11
NUT , Replaced By: N913004008001
14
SCREW ENGINE FRONT MOUNTING TO FRAME
17
SUPPORTING PLATE ENGINE FRONT MOUNTING TO FRAME
20
FLANGE RUBBER MOUNTING TO FRAME
23
BRACKET FRONT RUBBER MOUNTING
26
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
29
WASHER , Replaced By: N000125010532
29
WASHER RADIATOR TO RUBBER MOUNTING
32
HEXAGON NUT
32
NUT , Replaced By: N910113010002
34
RUBBER MOUNTING REAR
37
SUPPORT ENGINE REAR MOUNTING
41
BRACKET ENGINE REAR MOUNTING
43
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
43
SPRING WASHER , Replaced By: N000137008212
46
SCREW , Replaced By: N007984008003
46
SCREW BRACKET TO INTAKE MANIFOLD
55
SCREW REAR AXLE REGULATING SOLENOID VALVE
58
NUT SWITCH TO FLOOR PLATE
61
WASHER , Replaced By: N000125008443
61
WASHER EXHAUST MUFFLER TO STRAP
70
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
70
NUT , Replaced By: N913004008001
73
SCREW , Replaced By: N304017008021
73
SCREW PIPE CLAMP
79
SCREW VIBRATION ABSORBER TO BRACKET
82
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
85
WASHER
88
WASHER ENGINE TO RUBBER MOUNTING
91
LOCK WASHER FITTING TO BRACKET
92
SCREENING PLATE , Replaced By: A4602400045, +001A1029900201
97
NUT PLATFORM MOUNTING
100
SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
100
SPRING WASHER CAB FLOOR
