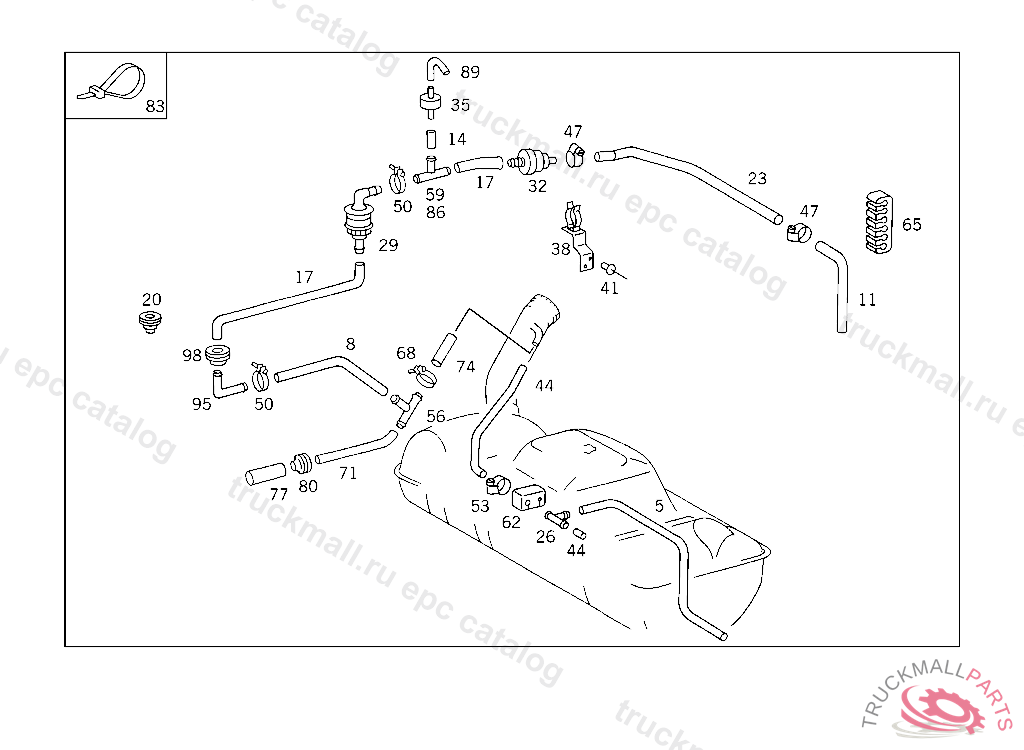

Поз.
Артикул
Описание
5
HOSE LEAK LINE, ORDER BY THE METER
5
HOSE FUEL HOSE TO FUEL PUMP 120 MM, ORDER BY THE METER
8
HOSE ADDITIONAL FUEL TANK, ORDER BY THE METER
11
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
14
HOSE LEAK LINE, ORDER BY THE METER
14
HOSE FUEL HOSE TO FUEL PUMP 120 MM, ORDER BY THE METER
17
HOSE DE-AERATION,055662
17
HOSE BETWEEN T-FITTING AND BREATHER VALVE
20
BOOT , 059608(WHC: WDB) 904079(WHC: VAG)
23
HOSE (VENT VALVE), 055662 903941
26
BREATHER
29
VALVE DE-AERATION
32
VALVE ,055662
35
VALVE BELOW INSTRUMENT PANEL
38
BRACKET AT VALVE
41
RIVET BRACKET TO CAB, 055661 903740
44
HOSE ADDITIONAL FUEL TANK, ORDER BY THE METER
47
CLAMP
53
CLAMP LINE CONNECTION
53
CLAMP CHECK VALVE,K 169122
56
T-FITTING12 MM, 059607(WHC: WDB) 904078(WHC: VAG)
59
T-FITTING , 055662(WHC: WDB) 903741(WHC: VAG)
62
DAMPING STRIP AT FRAME ABOVE FUEL TAK
68
LOOM TIE LINE MOUNTING 280 MM
89
HOSE TO ELEMENT AT FRONT SEAT
95
BREATHER
98
GROMMET
