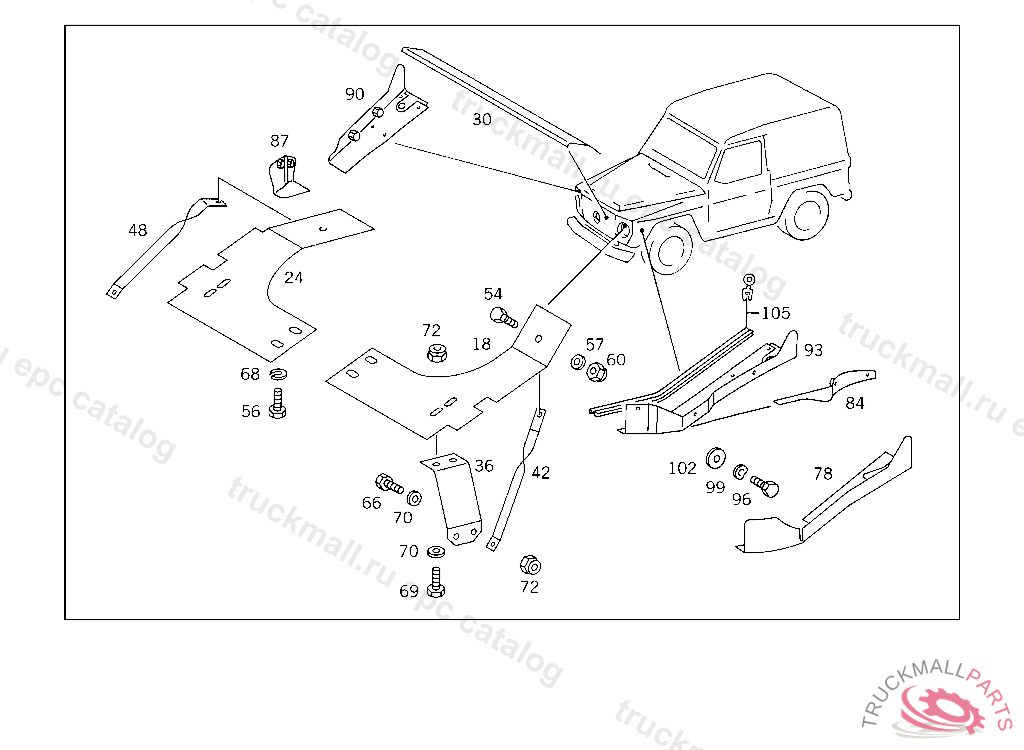

Поз.
Артикул
Описание
18
PROTECTIVE PLATE LEFT
18
PROTECTIVE PLATE LEFT, NOT BELONGING TO RANGE OF DELIVERY BY MERCEDES-BENZ AG
24
PROTECTIVE PLATE RIGHT, NOT BELONGING TO RANGE OF DELIVERY BY MERCEDES-BENZ AG
24
PROTECTIVE PLATE , Replaced By: A4615203842
24
PROTECTIVE PLATE RIGHT
30
PROTECTIVE PLATE FRONT
36
BRACKET PROTECTIVE PLATE
36
BRACKET , NOT BELONGING TO RANGE OF DELIVERY BY MERCEDES-BENZ AG
42
BRACKET LEFT
48
BRACKET RIGHT
54
SCREW BRACKET ON LOAD SENSOR
56
SCREW COVER PLATE TO COVER PLATE M 6 X 12
56
SCREW , Replaced By: N304017006018
57
WASHER , Replaced By: N009021006208
57
WASHER COMPRESSED AIR LINE TO BRACKET
60
NUT , Replaced By: N913002006009
60
NUT OIL TANK TO BRACKET
66
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
66
SCREW , Replaced By: N304017008016
68
LOCK WASHER WIRE CABLE TO LEVER
69
SCREW , Replaced By: N304017008034
69
SCREW BRACKET TO CROSS CONNECTION STRUT
70
WASHER , Replaced By: N000125008443
70
WASHER EXHAUST MUFFLER TO STRAP
72
NUT SWITCH TO FLOOR PLATE
78
PROTECTIVE PLATE RIGHT
78
PROTECTIVE PLATE RIGHT
78
PROTECTIVE PLATE RIGHT
78
PROTECTIVE PLATE LEFT
78
PROTECTIVE PLATE LEFT
78
PROTECTIVE PLATE , Replaced By: A4615201442
78
PROTECTIVE PLATE , Replaced By: A4615201342
78
PROTECTIVE PLATE , Replaced By: A4605202842
78
PROTECTIVE PLATE , Replaced By: A4605202742
78
PROTECTIVE PLATE LEFT
78
PROTECTIVE PLATE RIGHT
78
PROTECTIVE PLATE LEFT
78
PROTECTIVE PLATE RIGHT
78
PROTECTIVE PLATE LEFT
84
PROTECTIVE PLATE REAR RIGHT
84
PROTECTIVE PLATE REAR LEFT
87
PROTECTIVE PLATE FRONT
87
PROTECTIVE PLATE FRONT
90
PROTECTIVE PLATE RIGHT
90
PROTECTIVE PLATE LEFT
93
PROTECTIVE PLATE RIGHT
93
PROTECTIVE PLATE LEFT
96
SCREW PUMP TO BRACKET
96
SCREW , Replaced By: N304017006016
99
SPRING WASHER LICENSE PLATE TO BRACKET
102
WASHER COMPRESSED AIR LINE TO BRACKET
102
WASHER , Replaced By: N009021006208
105
RUBBER SEAL , ORDER BY THE METER
