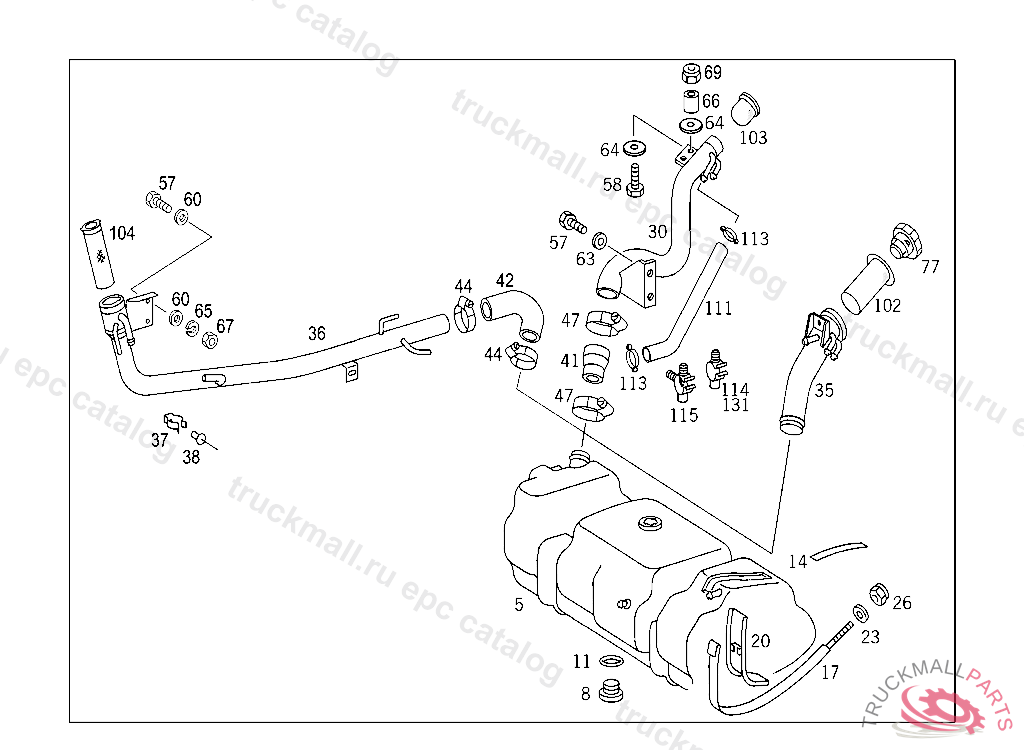

Поз.
Артикул
Описание
5
FUEL TANK , CONVERSION TO PLASTIC FUEL TANK POSSIBLE WITH MANUFACTURER'S CONFIRMATION
8
SCREW PLUG , Replaced By: A1104700486
8
FUEL STRAINER
11
SEAL RING
14
SHIM LEFT FUEL TANK TO A 461 470 00 40,35X325 MM
17
STRAP FUEL TANK MOUNTING, 059608(WHC: WDB) 904079(WHC: VAG)
20
SHIM RIGHT FUEL TANK, 059608(WHC: WDB) 904079(WHC: VAG)
20
SHIM LEFT TO A 461 470 00 04
23
WASHER EXHAUST MUFFLER TO STRAP
23
WASHER , Replaced By: N000125008443
26
NUT BRACKET TO BATTERY/APPARATUS SUPPORT,5 579088
36
FILLER NECK
37
CLAMP , Replaced By: A4604702881
38
RIVET
41
EXTENSION BETWEEN FUEL TANK AND FILLER NECK
41
HOSE FROM FILLER PIPE TO FUEL TANK
42
EXTENSION BETWEEN FUEL TANK AND FILLER NECK
44
CLAMP , Replaced By: A0069972690
44
LOOM TIE. CLAMP HOSE FASTENING
44
CLAMP HOSE TO RETARDER 60-80X13 MM
47
CLAMP , Replaced By: A0069972790
47
LOOM TIE LINE MOUNTING
57
SCREW LOCK COVERING
60
WASHER EXHAUST MUFFLER TO STRAP
65
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
65
LOCK WASHER BRAKE LINE TO REAR AXLE, NOT USED
67
HEXAGON NUT. NUT L.H. THREAD
104
FILTER ELEMENT
