Главная
›
Mercedes
›
CROSS-COUNTRY VEHICLE
›
290 GDT
›
461.322 TO CHASSIS 144225
›

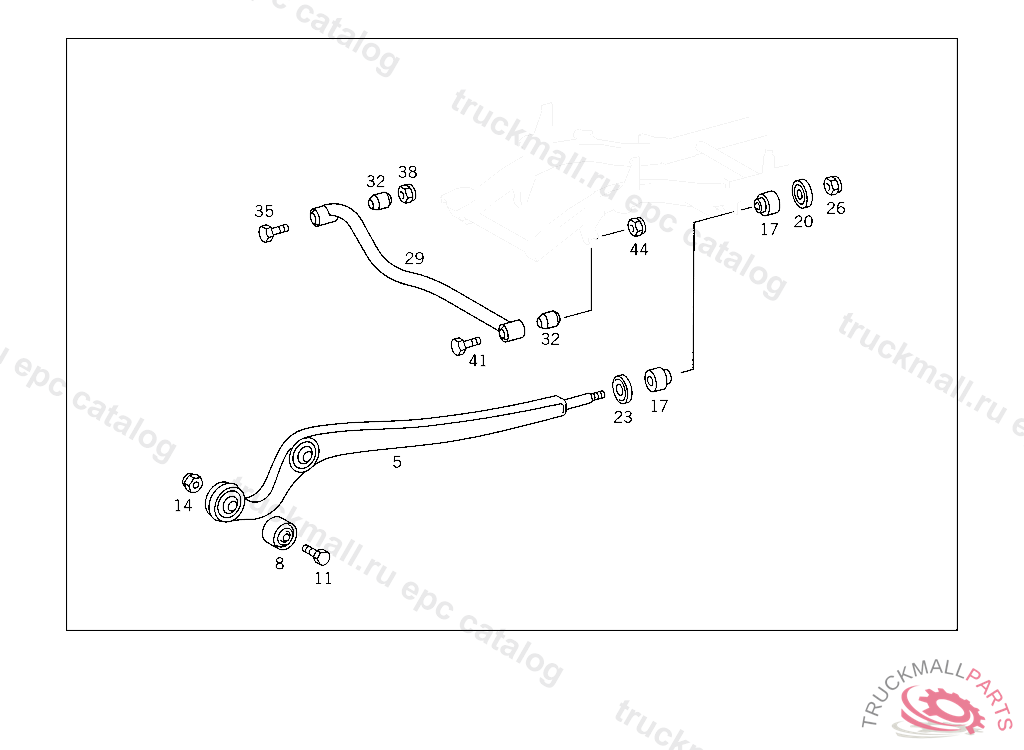

33 FRONT AXLE
›
105 FRONT AXLE LONGITUDINAL & TRANSVERSE CONTROL ARMS
Mercedes A4603300111 - РЫЧАГ
290 GDT 461.322 TO CHASSIS 144225
33 FRONT AXLE - 105 FRONT AXLE LONGITUDINAL & TRANSVERSE CONTROL ARMS
Поз.
Артикул
Описание
5
A4603300111
THRUST ARM FRONT AXLE
5
A4613300011
THRUST ARM
8
A4613330114
BEARING
8
A4603335014
BEARING
8
A4603330314
BEARING
11
N000960016288
SCREW CONTROL ARM TO FRAME
14
N913002016002
NUT BEARING BRACKET TO SIDE MEMBER
17
A4603520465
RUBBER MOUNTING THRUST ROD TO FRAME
20
A4603520476
WASHER LONGITUDINAL CONTROL ARM TO FRAME
23
A4603520276
WASHER THRUST ROD TO FRAME
26
N913002016002
NUT BEARING BRACKET TO SIDE MEMBER
29
A4633300707
TRANSVERSE CONTROL ARM FRONT AXLE
29
A4603300307
TRANSVERSE CONTROL ARM
29
A4633300407
TRANSVERSE CONTROL ARM , Replaced By: A4633300707
32
A4603520565
RUBBER MOUNTING , 034856 901180
35
N000960016288
SCREW CONTROL ARM TO FRAME
38
N913002016002
NUT BEARING BRACKET TO SIDE MEMBER
41
N000960016288
SCREW CONTROL ARM TO FRAME
44
N913002016002
NUT BEARING BRACKET TO SIDE MEMBER
