Mercedes A0025450628 - КЛЕММА

290 GDT 461.322 TO CHASSIS 144225

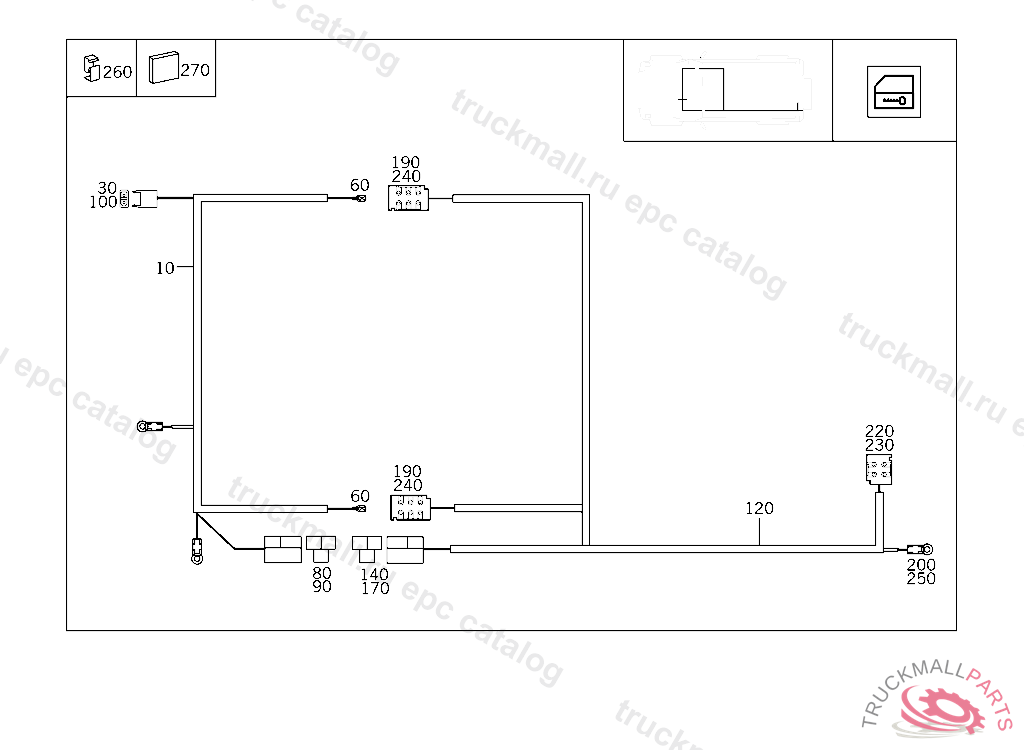

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 030 BATTERY,STARTER/ALTERNATOR CABLE IL. 5

Поз.
Артикул
Описание
10
A4615408107
CABLE HARNESS CENTRAL LOCKING MECHANISM
10
A4615401635
ELECTRIC CABLE CENTRAL LOCKING MECHANISM
10
A4615407635
ELECTRIC CABLE CENTRAL LOCKING MECHANISM
30
A6015450026
PIN BUSHING HOUSING BIPOLAR
60
A0075458226
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
60
A0005453826
PIN BUSHING , Replaced By: A0075458226
80
A0055456628
PLUG HOUSING 3-POLE
90
A0025450628
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
100
A0045455226
CONTACT SPRING1-2.5 MM2
240
A0075450528
PIN BUSHING HOUSING 6-POLE
260
A0069880578
CLIP CABLE HARNESS MOUNTING
270
A4636820204
INSULATION CABLE HARNESS MOUNTING 40X30 MM, TO BE ADAPTED DURING ASSEMBLY
