Главная
›
Mercedes
›
CROSS-COUNTRY VEHICLE
›
290 GDT
›
461.326 TO CHASSIS 144225
›
31 FRAME
›

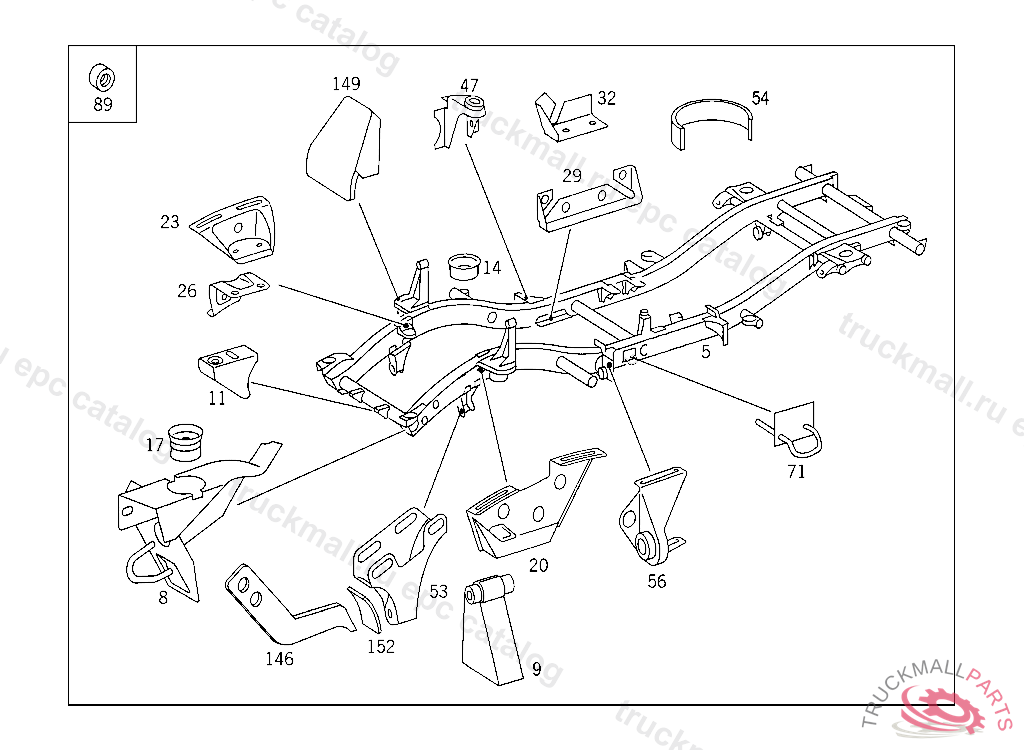

010 FRAME IL. 1
Mercedes A4613106301 - РАМА
290 GDT 461.326 TO CHASSIS 144225
31 FRAME - 010 FRAME IL. 1
Поз.
Артикул
Описание
5
A4613109901
FRAME WHEELBASE: 2850 MM
5
A4613106301
FRAME WHEELBASE: 2850 MM
5
A4613109101
FRAME WHEELBASE: 2850 MM
5
A4613105201
FRAME WHEELBASE: 2850 MM
5
A4613106401
FRAME WHEELBASE: 2850 MM
8
A4633100263
CONSOLE FRONT LEFT
8
A4613101863
CONSOLE FRONT LEFT
8
A4633100163
CONSOLE FRONT RIGHT
8
A4613102063
CONSOLE RIGHT
9
A4633200078
CONSOLE FRONT SHOCK ABSORBER TO FRAME,ON THE RIGHT
14
A4603170035
BUFFER PLATE BODY MOUNTING
17
A4603100075
SLEEVE
20
A4602412402
SUPPORT ENGINE FRONT LEFT MOUNTING,027108
23
A4602411702
SUPPORT FRONT RIGHT TOP
26
A4602411802
SUPPORT FRONT RIGHT BOTTOM, 027108 900560
29
A4602665201
CONSOLE TRANSMISSION MOUNTING
53
A4603305143
BEARING BRACKET FRONT AXLE CONTROL ARM
53
A4603300043
BEARING BRACKET FRONT AXLE CONTROL ARM
54
A4603225141
STIFFENING BRAKE HOSE MOUNTING
56
A4603300474
BRACKET CONTROL ARM BRACKET,RIGHT FRONT
56
A4603300374
BRACKET CONTROL ARM BRACKET,FRONT LEFT
71
A4613100088
ANCHORING LUG CENTRAL
