Mercedes N000933005058 - Болт

290 GD 461.337

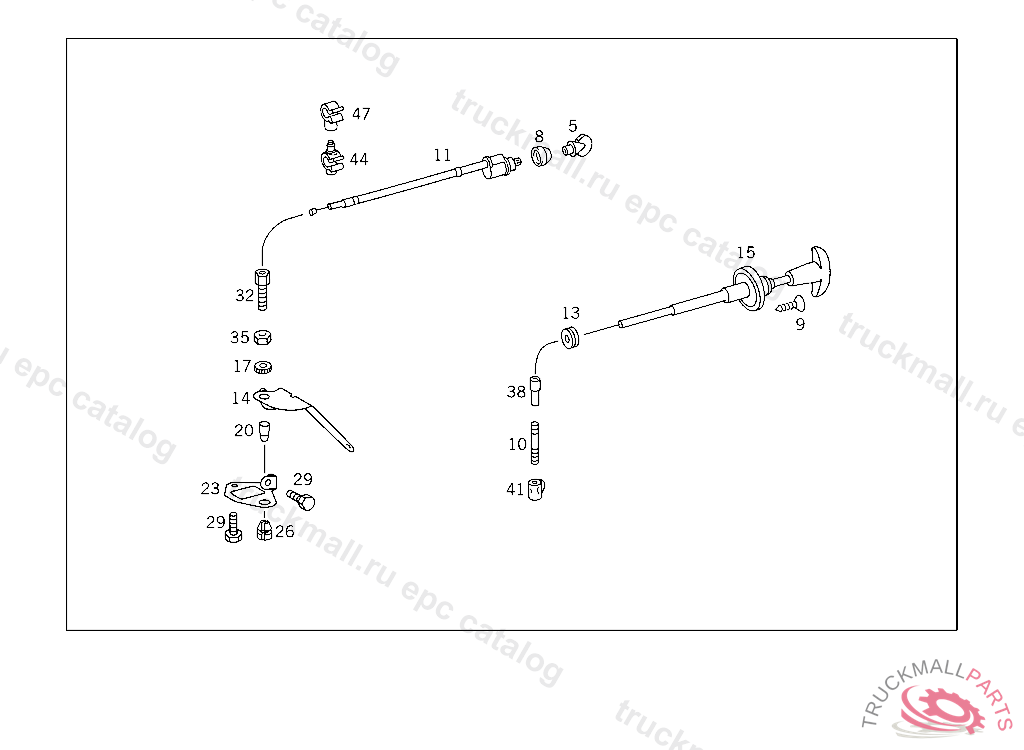

30 CONTROL - 025 MANUAL CONTROL

Поз.
Артикул
Описание
5
A1105451137
BUTTON. KNOB
8
A1105450272
NUT
11
A4613000630
WIRE CABLE MANUAL CONTROL
13
A1869970681
GROMMET FOR PASSAGE OF LINE, UP TO IDENT NO. 5 033766,ALSO INSTALLED ON 5 039977
14
A6020720540
BRACKET BRACKET TO ACCELERATOR CONTROL BRACKET
17
A2013010272
NUTTO A 463 300 03 30
20
A2013010087
GROMMET SEALING FOR WIRE CABLE
23
A6020720621
LEVER MANUAL CONTROL
26
A1163020150
BUSHING IDLING ADJUSTMENT WIRE CABLE
29
N000933005058
SCREW IN CASE OF SUBSEQUENT INSTALLATION
35
N000439008211
NUT , Replaced By: N304035008001
44
A0004760436
BRACKET LINE MOUNTING 11 MM
47
A1239950065
CLAMP COMPRSSED AIR LINE TO SUBSTRUCTURE
